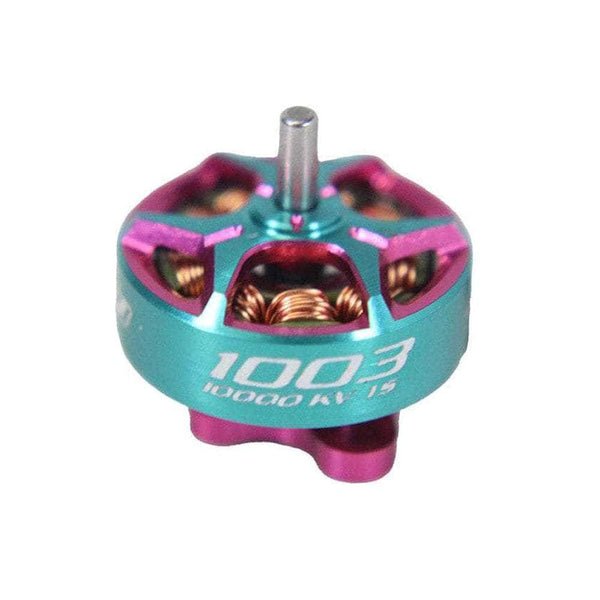

RCINPOWER GTS V3 1003

RCINPOWER GTS V3 1003
Image: racedayquads.com
Stator1003
KV options10000, 18000, 22000
Weight3.45 g
Shaft1.5mm
Max cells1-2S
Configuration9N12P
Dimensions13.5x9.2 mm
Winding resistance162 (10000KV) / 68 (18000KV) / 46 (22000KV) mOhm
Max thrust153 g
Price (approx.)16.99 USD

At 3.45 g it is right at the class average across the 3 1003-class motors in our database (avg 3.4 g).

Thrust data (RCINPOWER bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
10000 Gemfan 1608R*3 2S 50 1.4 A — 44 g 4.247 g/W
10000 Gemfan 1608R*3 2S 100 5.7 A — 103 g 2.442 g/W
10000 Gemfan 1609R*4 2S 50 1.5 A — 48 g 4.324 g/W
10000 Gemfan 1609R*4 2S 100 6.3 A — 113 g 2.424 g/W
10000 Gemfan 1635R*3 2S 50 1.4 A — 45 g 4.344 g/W
10000 Gemfan 1635R*3 2S 100 5.7 A — 105 g 2.489 g/W
10000 Gemfan 1635R*4 2S 50 1.7 A — 52 g 4.134 g/W
10000 Gemfan 1635R*4 2S 100 6.3 A — 113 g 2.424 g/W
10000 Gemfan 2015R*2 2S 50 1.7 A — 60 g 4.769 g/W
10000 Gemfan 2015R*2 2S 100 7.0 A — 135 g 2.606 g/W
10000 Gemfan 2023R*3 2S 50 2.5 A — 63 g 3.405 g/W
10000 Gemfan 2023R*3 2S 100 10.2 A — 127 g 1.683 g/W
10000 EMAX 2035*4 2S 50 3.2 A — 67 g 2.829 g/W
10000 EMAX 2035*4 2S 100 10.8 A — 132 g 1.652 g/W
10000 Gemfan 45mm*2 2S 50 1.4 A — 47 g 4.537 g/W
10000 Gemfan 45mm*2 2S 100 5.8 A — 114 g 2.656 g/W
10000 Gemfan 45mm*3 2S 50 1.7 A — 56 g 4.452 g/W
10000 Gemfan 45mm*3 2S 100 7.0 A — 125 g 2.413 g/W
10000 Gemfan 65mm*2 2S 50 2.3 A — 65 g 3.819 g/W
10000 Gemfan 65mm*2 2S 100 9.0 A — 153 g 2.297 g/W
18000 Gemfan 1608R*3 1S 50 2.5 A — 36 g 3.892 g/W
18000 Gemfan 1608R*3 1S 100 8.7 A — 87 g 2.703 g/W
18000 Gemfan 1609R*4 1S 50 2.3 A — 41 g 4.818 g/W
18000 Gemfan 1609R*4 1S 100 9.7 A — 94 g 2.619 g/W
18000 Gemfan 1635R*3 1S 50 2.3 A — 37 g 4.348 g/W
18000 Gemfan 1635R*3 1S 100 8.7 A — 87 g 2.703 g/W
18000 Gemfan 1635R*4 1S 50 2.6 A — 43 g 4.47 g/W
18000 Gemfan 1635R*4 1S 100 9.7 A — 95 g 2.647 g/W
18000 Gemfan 2015R*2 1S 50 3.0 A — 50 g 4.505 g/W
18000 Gemfan 2015R*2 1S 100 10.8 A — 107 g 2.678 g/W
18000 Gemfan 2023R*3 1S 50 3.9 A — 53 g 3.673 g/W
18000 Gemfan 2023R*3 1S 100 14.6 A — 98 g 1.814 g/W
18000 Gemfan 45mm*2 1S 50 2.5 A — 40 g 4.324 g/W
18000 Gemfan 45mm*2 1S 100 8.9 A — 95 g 2.885 g/W
18000 Gemfan 45mm*3 1S 50 2.9 A — 47 g 4.38 g/W
18000 Gemfan 45mm*3 1S 100 10.8 A — 104 g 2.603 g/W
22000 Gemfan 1608R*3 1S 50 3.1 A — 43 g 3.749 g/W
22000 Gemfan 1608R*3 1S 100 10.8 A — 102 g 2.553 g/W
22000 Gemfan 1609R*4 1S 50 2.8 A — 48 g 4.633 g/W
22000 Gemfan 1609R*4 1S 100 12.0 A — 111 g 2.5 g/W
22000 Gemfan 1635R*3 1S 50 2.8 A — 44 g 4.247 g/W
22000 Gemfan 1635R*3 1S 100 10.8 A — 103 g 2.578 g/W
22000 Gemfan 1635R*4 1S 50 3.3 A — 51 g 4.177 g/W
22000 Gemfan 1635R*4 1S 100 12.0 A — 112 g 2.523 g/W
22000 Gemfan 2015R*2 1S 50 3.8 A — 59 g 4.196 g/W
22000 Gemfan 2015R*2 1S 100 13.3 A — 126 g 2.56 g/W
22000 Gemfan 2023R*3 1S 50 4.8 A — 62 g 3.491 g/W
22000 Gemfan 2023R*3 1S 100 18.1 A — 115 g 1.717 g/W
22000 Gemfan 45mm*2 1S 50 3.1 A — 47 g 4.098 g/W
22000 Gemfan 45mm*2 1S 100 11.0 A — 112 g 2.752 g/W
22000 Gemfan 45mm*3 1S 50 3.6 A — 56 g 4.204 g/W
22000 Gemfan 45mm*3 1S 100 13.3 A — 123 g 2.499 g/W

Manufacturer bench figures (RCinPower bench, three KV sheets (10000 at 7.4 V/2S, 18000 and 22000 at 3.7 V/1S), eight to ten micro props each, 50% and 100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
weBLEEDfpv HQ Ultralight Whoop 31MM 1.22x1.0 3 0.16 g
HQProp 40MMX2 Ultralight 40mm Micro/Whoop 1.6x1.2 2 0.2 g
HQProp 51MMX2 Ultralight 2.0x0.9 2 0.23 g
Gemfan 35MMS 3-Blade 1.4x0.96 3 0.24 g
HQProp 40mm Ultralight 3-Blade 1.6x1.0 3 0.25 g

Where this data comes from

RCinPower publishes no GTS V3 1003 sheet at any id on its own G-SERIES index; these three are the test-report images on the three retail listings that mint this page, one per winding. All three print 9N12P, a 10x3 mm stator, a 1.5 mm shaft, 13.5x9.2 mm and 3.45 g with 5 cm wire; idle current at 5 V is 0.8 A at 10000 KV, 1.3 A at 18000 and 1.5 A at 22000, and internal resistance falls with KV, 162/68/46 mOhm. The 10000 KV sheet rates the motor 1~2S and benches it at 7.4 V on ten props including an EMAX 2035*4; the 18000 and 22000 KV sheets rate it 1S, bench at 3.7 V and drop the 2015R*2 and 65mm*2 runs. Two things are reproduced as printed: all three blocks label their power and current maxima "3S" on a motor their own cell line rates 1S or 1~2S, and the 22000 KV Gemfan 2023R*3 run is flagged 85 degC (HOT). Temperature after 3 s at full throttle otherwise runs 58-82 degC
