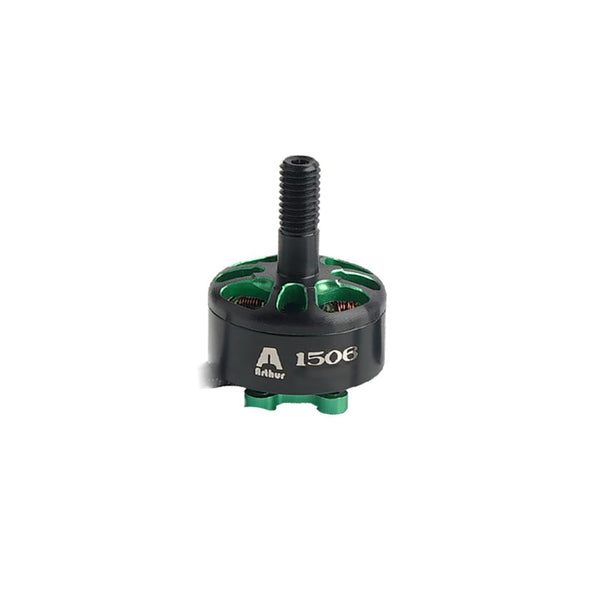

FPVELITE Flash Hobby Arthur 1506
| Stator | 1506 |
|---|---|
| KV options | 4300 |
| Weight | 18.0 g |
| Shaft | 3mm |
| Max cells | 2-4S |
| Configuration | 9N12P |
| Dimensions | Ø21.5x16.0 mm |
| Price (approx.) | 15.99 USD |
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan 4022F 2-Blade | 4.0x2.2 | 2 | 0.37 g |
| Gemfan Hurricane 3018 Durable 1.5mm | 3.0x1.8 | 2 | 0.75 g |
| Gemfan Hurricane 3018 Durable 2mm | 3.0x1.8 | 2 | 0.75 g |
| HQProp T3x1.5 Durable | 3.0x1.5 | 2 | 0.78 g |
| HQProp T3.5x2.2x2 | 3.5x2.2 | 2 | 1.1 g |
Where this data comes from
The listing's own Specifications block states 9N12P, a Ø 21.5 x 16.0 mm body, 375 W max power, a 17.05 A peak current, 2-4S, a 3 mm shaft with an M5 prop mount and 26AWG 110 mm leads - figures, but not a sweep, so they are a note and not rows. The motor is a Flash Hobby Arthur sold under a shop's own brand label; Flash Hobby publishes no FPV bench table, so this page has no table behind it at either name.
