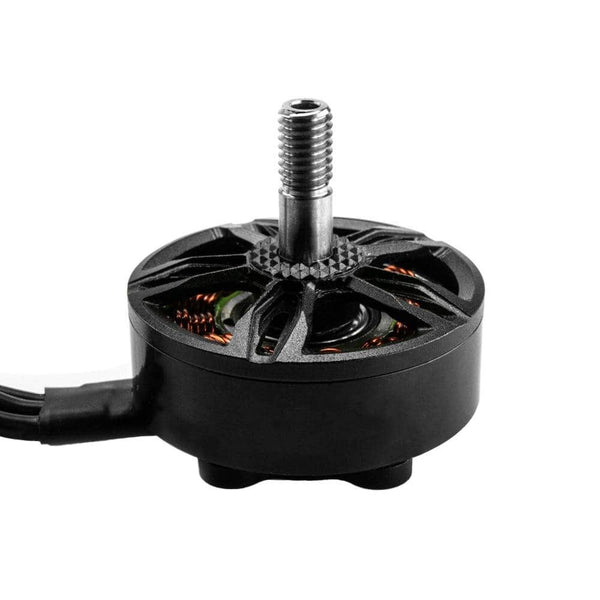

Lumenier ZIP V2 2807 Blackout
| Stator | 2807 |
|---|---|
| KV options | 1700 |
| Weight | 45.0 g |
| Shaft | 5mm |
| Max cells | 3-8S |
| Configuration | 12N14P |
| Dimensions | 33x19.5 mm |
| Mount | 19x19mm (M3) |
| Price (approx.) | 24.99 USD |
At 45 g it is 3.4 g lighter than average across the 5 2807-class motors in our database (avg 48.4 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| APC 7x4 SF-B4 2-Blade | 7.0x4.0 | 2 | 5.1 g |
| HQProp 7x5.5x2 | 7.0x5.5 | 2 | 6.4 g |
| Gemfan Cinelifter 7035 7x3.5x3 | 7.0x3.5 | 3 | 6.5 g |
| HQProp 7x4.5x2 Durable | 7.0x4.5 | 2 | 6.6 g |
| HQProp MacroQuad 7x4.5 Glass Fiber Nylon CCW | 7.0x4.5 | 2 | 6.8 g |
Where this data comes from
Lumenier's page for the ZIP V2 2807 Blackout carries the ZIP V2 2807 Cinematic's SPECIFICATIONS block verbatim, down to its "KV: 1300KV/1700KV/1950KV" line, while the same page's Includes list names one winding - "1x Lumeneir ZIP V2 2807 Motor - 1700KV (No Logo)" - so kv_options stays at the single 1700 KV our retail source sells rather than taking the block's three. Mechanically the two are one motor and the shared figures are this one's: 19x19 mm M3 base mounting, a 33 x 19.5 mm body, 12N14P, 45 g with short wires, 3-8S, a 28 x 7 mm stator of 0.2 mm Kawasaki silicon steel, N52H curved magnets, Japanese NMB 12x6x4 bearings, a 4.8 mm titanium-alloy inner shaft, a 5 mm prop shaft and 180 mm 18AWG leads. No thrust, current or power figure is published
