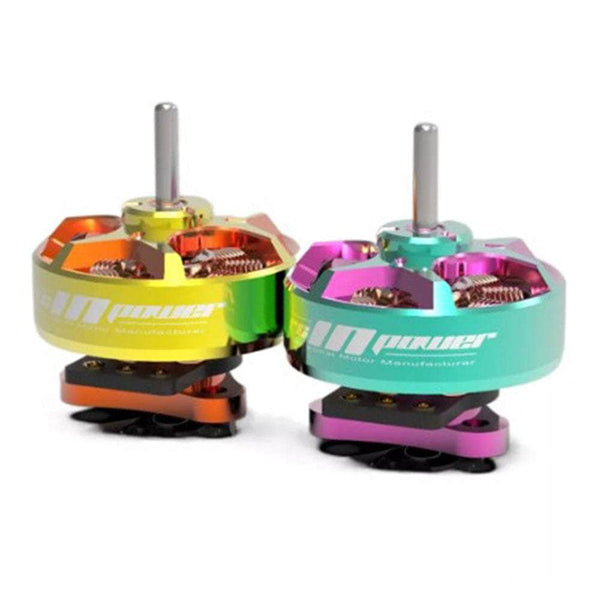

RCINPOWER GTS V3 0802

RCINPOWER GTS V3 0802
Image: racedayquads.com
Stator0802
KV options22000, 25000, 27000
Weight1.97 g
Shaft1mm
Max cells1S
Configuration9N12P
Dimensions11.2x8.2 mm
Winding resistance117 / 105 / 95 (22000/25000/27000KV) mOhm
Max thrust56 g
Price (approx.)15.49 USD

At 1.97 g it is 0.07 g heavier than average across the 8 0802-class motors in our database (avg 1.90 g).

Thrust data (RCINPOWER bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
22000 Gemfan 1220*3 1S 50 1.0 A — 14 g 3.784 g/W
22000 Gemfan 1220*3 1S 100 4.0 A — 37 g 2.5 g/W
22000 Gemfan 1220*4 1S 50 1.2 A — 16 g 3.604 g/W
22000 Gemfan 1220*4 1S 100 4.5 A — 38 g 2.282 g/W
22000 Gemfan 1635*3 1S 50 1.7 A — 23 g 3.657 g/W
22000 Gemfan 1635*3 1S 100 5.3 A — 42 g 2.142 g/W
22000 Gemfan 1636*4 1S 50 1.7 A — 24 g 3.816 g/W
22000 Gemfan 1636*4 1S 100 5.6 A — 45 g 2.172 g/W
25000 Gemfan 1220*3 1S 50 1.2 A — 16 g 3.604 g/W
25000 Gemfan 1220*3 1S 100 4.7 A — 42 g 2.415 g/W
25000 Gemfan 1220*4 1S 50 1.5 A — 19 g 3.423 g/W
25000 Gemfan 1220*4 1S 100 5.3 A — 44 g 2.244 g/W
25000 Gemfan 1635*3 1S 50 2.0 A — 26 g 3.514 g/W
25000 Gemfan 1635*3 1S 100 6.2 A — 48 g 2.092 g/W
25000 Gemfan 1636*4 1S 50 2.1 A — 28 g 3.604 g/W
25000 Gemfan 1636*4 1S 100 6.5 A — 51 g 2.121 g/W
27000 Gemfan 1220*3 1S 50 1.4 A — 19 g 3.668 g/W
27000 Gemfan 1220*3 1S 100 5.2 A — 46 g 2.391 g/W
27000 Gemfan 1220*4 1S 50 1.6 A — 21 g 3.547 g/W
27000 Gemfan 1220*4 1S 100 5.9 A — 48 g 2.199 g/W
27000 Gemfan 1635*3 1S 50 2.2 A — 28 g 3.44 g/W
27000 Gemfan 1635*3 1S 100 6.9 A — 53 g 2.076 g/W
27000 Gemfan 1636*4 1S 50 2.3 A — 31 g 3.643 g/W
27000 Gemfan 1636*4 1S 100 7.2 A — 56 g 2.102 g/W

Manufacturer bench figures (RCinPower bench, 1S (3.7 V), four whoop props per KV, 50% and 100% throttle; 22000/25000/27000 KV; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
weBLEEDfpv HQ Ultralight Whoop 31MM 1.22x1.0 3 0.16 g
HQProp 40MMX2 Ultralight 40mm Micro/Whoop 1.6x1.2 2 0.2 g
Gemfan 35MMS 3-Blade 1.4x0.96 3 0.24 g
HQProp 40mm Ultralight 3-Blade 1.6x1.0 3 0.25 g
HQProp Ultralight 31MMX3 31mm Micro/Whoop 1.22x1.0 3 0.27 g

Where this data comes from

A 1S whoop motor: 9N12P, 8x2 mm stator, 1 mm shaft (1.5 mm inside), 11.2x8.2 mm, 1.97 g with plug. Internal resistance falls with KV (117/105/95 mOhm for 22000/25000/27000 KV). Temperature after 3 s at full throttle reaches 55-78 degC
