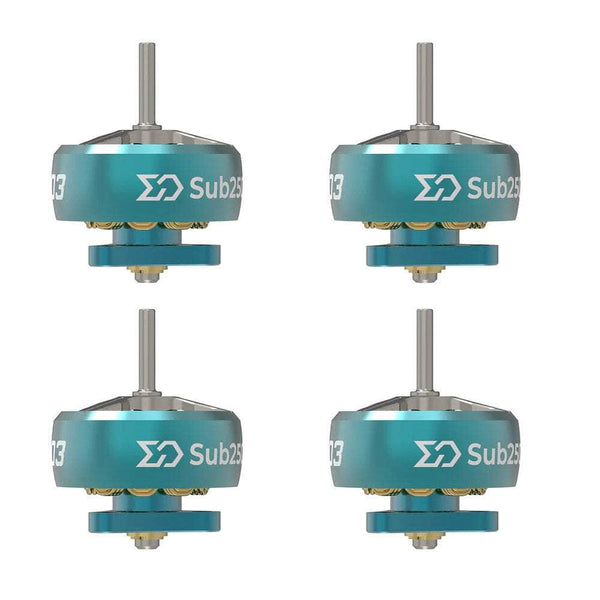

Sub250 M1 0803 Micro/Whoop
| Stator | 0803 |
|---|---|
| KV options | 19000 |
| Weight | 2.2 g |
| Shaft | 1.5mm |
| Max cells | 1S |
| Configuration | 9N12P |
| Dimensions | Ø12x14 mm |
| Price (approx.) | 39.99 USD |
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| weBLEEDfpv HQ Ultralight Whoop 31MM | 1.22x1.0 | 3 | 0.16 g |
| HQProp 40MMX2 Ultralight 40mm Micro/Whoop | 1.6x1.2 | 2 | 0.2 g |
| Gemfan 35MMS 3-Blade | 1.4x0.96 | 3 | 0.24 g |
| HQProp 40mm Ultralight 3-Blade | 1.6x1.0 | 3 | 0.25 g |
| HQProp Ultralight 31MMX3 31mm Micro/Whoop | 1.22x1.0 | 3 | 0.27 g |
Where this data comes from
Sub250's own product page publishes a labelled Specifications block and no bench table: 9N12P, 8.4 mm x 2.8 mm stator, 1.5 mm shaft, 12x14 mm body, 2.2 g, 1S only on a recommended 380-530 mAh pack. The nine product images are renders. The brand's 1.0 mm shaft version of the same motor is a separate, discontinued page with the same block.
