T-Motor 2203.5

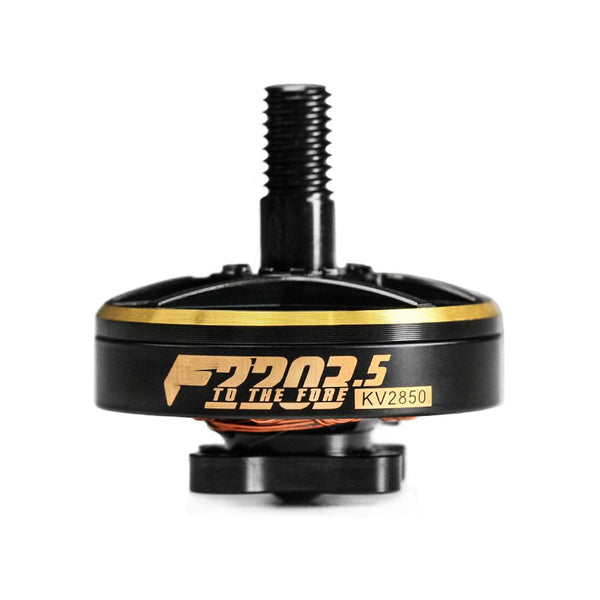

T-Motor 2203.5
Image: racedayquads.com
Stator2203.5
KV options1500, 2850, 3550
Weight19.7 g
Shaft3mm
Max cells3-4S
Configuration12N14P
DimensionsØ26.8x26.45 mm
Winding resistance235 (1500KV) / 90 (2850KV) / 76 (3550KV) mOhm
Max thrust1068.77 g
Price (approx.)24.99 USD

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1500 Gemfan D76 6S 50 2.29 A 18968 188.45 g 3.43 g/W
1500 Gemfan D76 6S 55 3.08 A 21031 224.18 g 3.04 g/W
1500 Gemfan D76 6S 60 4.09 A 22931 270.53 g 2.76 g/W
1500 Gemfan D76 6S 65 5.1 A 24843 318.92 g 2.61 g/W
1500 Gemfan D76 6S 70 5.91 A 26124 359.21 g 2.54 g/W
1500 Gemfan D76 6S 75 7.33 A 28203 414.0 g 2.36 g/W
1500 Gemfan D76 6S 80 8.82 A 29993 469.81 g 2.23 g/W
1500 Gemfan D76 6S 85 10.12 A 31247 509.47 g 2.11 g/W
1500 Gemfan D76 6S 90 11.58 A 32731 551.59 g 2.0 g/W
1500 Gemfan D76 6S 95 13.43 A 33817 592.33 g 1.85 g/W
1500 Gemfan D76 6S 100 17.35 A 37753 733.72 g 1.78 g/W
1500 Gemfan 4023 6S 50 2.07 A 19437 198.87 g 4.0 g/W
1500 Gemfan 4023 6S 55 2.83 A 21436 238.08 g 3.5 g/W
1500 Gemfan 4023 6S 60 3.79 A 23538 288.31 g 3.18 g/W
1500 Gemfan 4023 6S 65 4.71 A 25525 342.61 g 3.04 g/W
1500 Gemfan 4023 6S 70 5.49 A 26678 387.49 g 2.95 g/W
1500 Gemfan 4023 6S 75 6.89 A 28948 454.81 g 2.76 g/W
1500 Gemfan 4023 6S 80 8.35 A 30674 515.51 g 2.58 g/W
1500 Gemfan 4023 6S 85 9.69 A 31973 566.85 g 2.45 g/W
1500 Gemfan 4023 6S 90 11.04 A 33540 612.66 g 2.33 g/W
1500 Gemfan 4023 6S 95 12.9 A 34652 661.34 g 2.15 g/W
1500 Gemfan 4023 6S 100 16.84 A 38718 815.06 g 2.03 g/W
1500 Gemfan 5125 6S 50 2.89 A 17903 285.63 g 4.12 g/W
1500 Gemfan 5125 6S 55 3.88 A 19746 341.42 g 3.67 g/W
1500 Gemfan 5125 6S 60 4.95 A 21317 401.55 g 3.38 g/W
1500 Gemfan 5125 6S 65 6.15 A 23013 466.65 g 3.17 g/W
1500 Gemfan 5125 6S 70 7.22 A 24045 524.2 g 3.04 g/W
1500 Gemfan 5125 6S 75 8.89 A 25857 597.86 g 2.82 g/W
1500 Gemfan 5125 6S 80 10.38 A 26961 660.72 g 2.67 g/W
1500 Gemfan 5125 6S 85 11.93 A 27912 714.63 g 2.52 g/W
1500 Gemfan 5125 6S 90 13.59 A 28883 763.46 g 2.36 g/W
1500 Gemfan 5125 6S 95 15.51 A 29659 801.92 g 2.17 g/W
1500 Gemfan 5125 6S 100 19.48 A 33017 949.91 g 2.05 g/W
1500 HQ Duct 75MM*6 6S 50 2.06 A 19465 174.72 g 3.54 g/W
1500 HQ Duct 75MM*6 6S 55 2.82 A 21593 208.11 g 3.09 g/W
1500 HQ Duct 75MM*6 6S 60 3.73 A 23512 249.41 g 2.8 g/W
1500 HQ Duct 75MM*6 6S 65 4.64 A 25519 295.34 g 2.67 g/W
1500 HQ Duct 75MM*6 6S 70 5.41 A 26849 332.82 g 2.58 g/W
1500 HQ Duct 75MM*6 6S 75 6.78 A 28977 390.09 g 2.42 g/W
1500 HQ Duct 75MM*6 6S 80 8.2 A 30667 443.31 g 2.27 g/W
1500 HQ Duct 75MM*6 6S 85 9.56 A 32113 485.33 g 2.14 g/W
1500 HQ Duct 75MM*6 6S 90 10.8 A 33717 515.79 g 2.01 g/W
1500 HQ Duct 75MM*6 6S 95 12.69 A 34880 561.27 g 1.87 g/W
1500 HQ Duct 75MM*6 6S 100 16.66 A 38891 710.27 g 1.8 g/W
2850 Gemfan D76 4S 50 3.93 A 21021 226.23 g 3.61 g/W
2850 Gemfan D76 4S 55 5.21 A 23111 267.97 g 3.23 g/W
2850 Gemfan D76 4S 60 6.76 A 25210 318.93 g 2.97 g/W
2850 Gemfan D76 4S 65 8.01 A 26798 367.73 g 2.89 g/W
2850 Gemfan D76 4S 70 9.01 A 27672 401.53 g 2.81 g/W
2850 Gemfan D76 4S 75 11.0 A 29845 464.81 g 2.67 g/W
2850 Gemfan D76 4S 80 12.7 A 31248 510.67 g 2.55 g/W
2850 Gemfan D76 4S 85 14.67 A 32596 556.8 g 2.41 g/W
2850 Gemfan D76 4S 90 16.43 A 33982 592.32 g 2.29 g/W
2850 Gemfan D76 4S 95 19.12 A 35105 643.24 g 2.15 g/W
2850 Gemfan D76 4S 100 23.88 A 39042 794.1 g 2.13 g/W
2850 Gemfan 4023 4S 50 3.77 A 21569 246.11 g 4.1 g/W
2850 Gemfan 4023 4S 55 4.97 A 23793 295.36 g 3.73 g/W
2850 Gemfan 4023 4S 60 6.33 A 25818 353.01 g 3.5 g/W
2850 Gemfan 4023 4S 65 7.57 A 27571 406.06 g 3.38 g/W
2850 Gemfan 4023 4S 70 8.62 A 28694 450.44 g 3.3 g/W
2850 Gemfan 4023 4S 75 10.41 A 30665 515.29 g 3.13 g/W
2850 Gemfan 4023 4S 80 12.31 A 32509 576.43 g 2.96 g/W
2850 Gemfan 4023 4S 85 14.05 A 33605 622.51 g 2.81 g/W
2850 Gemfan 4023 4S 90 15.81 A 34921 669.85 g 2.7 g/W
2850 Gemfan 4023 4S 95 18.35 A 36180 720.75 g 2.51 g/W
2850 Gemfan 4023 4S 100 22.92 A 40101 874.24 g 2.44 g/W
2850 Gemfan 5125 4S 50 5.43 A 19265 339.34 g 3.93 g/W
2850 Gemfan 5125 4S 55 6.35 A 20704 376.59 g 3.73 g/W
2850 Gemfan 5125 4S 60 8.46 A 22795 454.93 g 3.4 g/W
2850 Gemfan 5125 4S 65 10.57 A 24514 520.95 g 3.12 g/W
2850 Gemfan 5125 4S 70 11.81 A 25204 567.57 g 3.05 g/W
2850 Gemfan 5125 4S 75 13.08 A 26301 617.86 g 3.0 g/W
2850 Gemfan 5125 4S 80 15.18 A 27653 682.2 g 2.86 g/W
2850 Gemfan 5125 4S 85 17.45 A 28643 736.46 g 2.7 g/W
2850 Gemfan 5125 4S 90 19.84 A 29538 784.24 g 2.54 g/W
2850 Gemfan 5125 4S 95 22.56 A 30185 828.71 g 2.37 g/W
2850 Gemfan 5125 4S 100 27.47 A 33726 980.3 g 2.32 g/W
2850 HQ Duct 75MM*6 4S 50 3.65 A 21610 206.21 g 3.53 g/W
2850 HQ Duct 75MM*6 4S 55 4.82 A 23912 245.49 g 3.19 g/W
2850 HQ Duct 75MM*6 4S 60 6.22 A 25913 297.46 g 3.0 g/W
2850 HQ Duct 75MM*6 4S 65 7.4 A 27640 343.62 g 2.92 g/W
2850 HQ Duct 75MM*6 4S 70 8.36 A 28975 377.01 g 2.84 g/W
2850 HQ Duct 75MM*6 4S 75 10.24 A 30751 436.65 g 2.7 g/W
2850 HQ Duct 75MM*6 4S 80 12.11 A 32789 491.55 g 2.57 g/W
2850 HQ Duct 75MM*6 4S 85 13.74 A 33851 528.61 g 2.44 g/W
2850 HQ Duct 75MM*6 4S 90 15.53 A 35191 570.43 g 2.34 g/W
2850 HQ Duct 75MM*6 4S 95 17.98 A 36220 614.95 g 2.19 g/W
2850 HQ Duct 75MM*6 4S 100 22.57 A 40260 763.75 g 2.18 g/W
2850 Gemfan D76 6S 50 7.17 A 26855 354.5 g 2.07 g/W
2850 Gemfan D76 6S 55 8.64 A 28496 393.14 g 1.91 g/W
2850 Gemfan D76 6S 60 10.0 A 30193 438.23 g 1.84 g/W
2850 Gemfan D76 6S 65 11.57 A 32248 500.94 g 1.82 g/W
2850 Gemfan D76 6S 70 12.98 A 33623 550.84 g 1.79 g/W
2850 Gemfan D76 6S 75 15.02 A 35546 614.72 g 1.73 g/W
2850 Gemfan D76 6S 80 17.1 A 37218 675.07 g 1.67 g/W
2850 Gemfan D76 6S 85 19.29 A 38378 728.59 g 1.61 g/W
2850 Gemfan D76 6S 90 21.53 A 39647 779.55 g 1.54 g/W
2850 Gemfan D76 6S 95 23.9 A 40434 842.33 g 1.5 g/W
2850 Gemfan D76 6S 100 27.26 A 44067 933.44 g 1.46 g/W
2850 Gemfan 4023 6S 50 6.48 A 27726 397.95 g 2.57 g/W
2850 Gemfan 4023 6S 55 7.87 A 29592 446.76 g 2.38 g/W
2850 Gemfan 4023 6S 60 9.19 A 31144 499.22 g 2.28 g/W
2850 Gemfan 4023 6S 65 10.77 A 33340 572.32 g 2.24 g/W
2850 Gemfan 4023 6S 70 12.15 A 34725 626.7 g 2.18 g/W
2850 Gemfan 4023 6S 75 14.24 A 36573 706.71 g 2.1 g/W
2850 Gemfan 4023 6S 80 16.53 A 38476 782.88 g 2.01 g/W
2850 Gemfan 4023 6S 85 18.9 A 39689 846.88 g 1.9 g/W
2850 Gemfan 4023 6S 90 20.76 A 41000 881.61 g 1.81 g/W
2850 Gemfan 4023 6S 95 23.05 A 41700 918.84 g 1.7 g/W
2850 Gemfan 4023 6S 100 27.96 A 45114 1068.77 g 1.63 g/W
2850 HQ Duct 75MM*6 6S 50 6.26 A 27751 319.79 g 2.14 g/W
2850 HQ Duct 75MM*6 6S 55 7.67 A 29761 364.37 g 1.99 g/W
2850 HQ Duct 75MM*6 6S 60 8.99 A 31215 407.65 g 1.9 g/W
2850 HQ Duct 75MM*6 6S 65 10.74 A 33487 479.37 g 1.88 g/W
2850 HQ Duct 75MM*6 6S 70 12.13 A 34862 523.73 g 1.82 g/W
2850 HQ Duct 75MM*6 6S 75 13.86 A 37033 587.36 g 1.79 g/W
2850 HQ Duct 75MM*6 6S 80 16.19 A 39092 657.15 g 1.72 g/W
2850 HQ Duct 75MM*6 6S 85 18.67 A 40517 715.8 g 1.63 g/W
2850 HQ Duct 75MM*6 6S 90 20.44 A 41435 749.26 g 1.56 g/W
2850 HQ Duct 75MM*6 6S 95 23.09 A 42501 786.65 g 1.45 g/W
2850 HQ Duct 75MM*6 6S 100 27.55 A 45657 927.82 g 1.44 g/W
3550 Gemfan D90 3S 50 3.33 A 15805 174.02 g 4.4 g/W
3550 Gemfan D90 3S 55 4.41 A 17376 206.13 g 3.94 g/W
3550 Gemfan D90 3S 60 5.72 A 18954 245.33 g 3.63 g/W
3550 Gemfan D90 3S 65 6.78 A 20148 282.87 g 3.55 g/W
3550 Gemfan D90 3S 70 7.62 A 20806 308.87 g 3.45 g/W
3550 Gemfan D90 3S 75 9.31 A 22439 357.55 g 3.28 g/W
3550 Gemfan D90 3S 80 10.75 A 23494 392.82 g 3.13 g/W
3550 Gemfan D90 3S 85 12.42 A 24508 428.31 g 2.97 g/W
3550 Gemfan D90 3S 90 13.91 A 25550 455.63 g 2.83 g/W
3550 Gemfan D90 3S 95 16.18 A 26394 494.8 g 2.65 g/W
3550 Gemfan D90 3S 100 20.21 A 29354 610.85 g 2.63 g/W
3550 Gemfan 4023 3S 50 3.14 A 16340 186.44 g 4.99 g/W
3550 Gemfan 4023 3S 55 4.14 A 18025 223.76 g 4.55 g/W
3550 Gemfan 4023 3S 60 5.28 A 19559 267.43 g 4.28 g/W
3550 Gemfan 4023 3S 65 6.31 A 20887 307.62 g 4.13 g/W
3550 Gemfan 4023 3S 70 7.18 A 21737 341.24 g 4.03 g/W
3550 Gemfan 4023 3S 75 8.68 A 23231 390.37 g 3.83 g/W
3550 Gemfan 4023 3S 80 10.26 A 24628 436.69 g 3.63 g/W
3550 Gemfan 4023 3S 85 11.71 A 25458 471.6 g 3.45 g/W
3550 Gemfan 4023 3S 90 13.17 A 26455 507.46 g 3.31 g/W
3550 Gemfan 4023 3S 95 15.29 A 27409 546.02 g 3.08 g/W
3550 Gemfan 4023 3S 100 19.1 A 30379 662.3 g 3.0 g/W
3550 Gemfan 5125 3S 50 4.46 A 14387 253.43 g 4.79 g/W
3550 Gemfan 5125 3S 55 5.21 A 15462 281.24 g 4.55 g/W
3550 Gemfan 5125 3S 60 6.95 A 17023 339.75 g 4.14 g/W
3550 Gemfan 5125 3S 65 8.68 A 18307 389.06 g 3.81 g/W
3550 Gemfan 5125 3S 70 9.7 A 18823 423.88 g 3.74 g/W
3550 Gemfan 5125 3S 75 10.74 A 19642 461.43 g 3.68 g/W
3550 Gemfan 5125 3S 80 12.47 A 20651 509.49 g 3.51 g/W
3550 Gemfan 5125 3S 85 14.33 A 21391 550.01 g 3.32 g/W
3550 Gemfan 5125 3S 90 16.3 A 22059 585.69 g 3.12 g/W
3550 Gemfan 5125 3S 95 18.53 A 22542 618.9 g 2.92 g/W
3550 Gemfan 5125 3S 100 22.57 A 25187 732.11 g 2.84 g/W
3550 Gemfan 4023 4S 50 3.86 A 20098 229.33 g 4.05 g/W
3550 Gemfan 4023 4S 55 5.09 A 22170 275.22 g 3.69 g/W
3550 Gemfan 4023 4S 60 6.49 A 24057 328.94 g 3.47 g/W
3550 Gemfan 4023 4S 65 7.76 A 25691 378.37 g 3.35 g/W
3550 Gemfan 4023 4S 70 8.83 A 26737 419.73 g 3.27 g/W
3550 Gemfan 4023 4S 75 10.67 A 28574 480.15 g 3.11 g/W
3550 Gemfan 4023 4S 80 12.62 A 30292 537.13 g 2.95 g/W
3550 Gemfan 4023 4S 85 14.4 A 31313 580.06 g 2.8 g/W
3550 Gemfan 4023 4S 90 16.2 A 32540 624.17 g 2.69 g/W
3550 Gemfan 4023 4S 95 18.81 A 33713 671.6 g 2.5 g/W
3550 Gemfan 4023 4S 100 23.49 A 37366 814.63 g 2.44 g/W
3550 Gemfan D90 4S 50 4.43 A 21021 231.97 g 3.31 g/W
3550 Gemfan D90 4S 55 5.87 A 23111 274.77 g 2.96 g/W
3550 Gemfan D90 4S 60 7.61 A 25210 327.03 g 2.72 g/W
3550 Gemfan D90 4S 65 9.01 A 26798 377.06 g 2.66 g/W
3550 Gemfan D90 4S 70 10.14 A 27672 411.72 g 2.59 g/W
3550 Gemfan D90 4S 75 12.38 A 29845 476.61 g 2.46 g/W
3550 Gemfan D90 4S 80 14.29 A 31248 523.63 g 2.35 g/W
3550 Gemfan D90 4S 85 16.51 A 32596 570.93 g 2.23 g/W
3550 Gemfan D90 4S 90 18.49 A 33982 607.35 g 2.12 g/W
3550 Gemfan D90 4S 95 21.52 A 35105 659.57 g 1.99 g/W
3550 Gemfan D90 4S 100 26.87 A 39042 814.26 g 1.97 g/W

Manufacturer bench figures (T-Motor bench, sixteen runs across three KV: at 1500 KV Gemfan D76, Gemfan 4023, Gemfan 5125 and HQ Duct 75MM*6 on 6S (~23.9 V); at 2850 KV the same four props on 4S (~15.8 V) and D76, 4023 and the duct again on 6S (~23.6 V); at 3550 KV Gemfan D90, Gemfan 4023 and Gemfan 5125 on 3S (~11.7 V) and the 4023 and D90 on 4S (~14.4 / ~15.6 V); 11 throttle points (50-100% in 5% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Product Drawing", "Specifications" and "Test Report" images on tmotorhobby.com/goods-1097.html. Identity with our RaceDayQuads listings is four figures to the digit: the 2203.5 stator, a 3 mm shaft, 19.7 g - the block's Weight (Incl. Cable) at 1500 and 2850 KV, against 19.5 g at 3550 KV - and both KV the shop sells appearing as Specifications blocks and as report Types. Max thrust is the 2850 KV Gemfan 4023 6S 100% row, 1068.77 g, where the page carried none. At 176 rows this is the largest F-series sheet read and the second largest on the site: three windings over five report sections - 1500 KV on 6S, 2850 KV on 4S and again on 6S, 3550 KV on 3S and again on 4S - sixteen runs of 11 5%-step throttle points each. The prop sets differ by section rather than by winding: Gemfan D76, Gemfan 4023, Gemfan 5125 and an HQ Duct 75MM*6 at 1500 KV and at 2850 KV/4S, the same four less the 5125 at 2850 KV/6S, Gemfan D90, 4023 and 5125 at 3550 KV/3S, and the 4023 and D90 alone at 3550 KV/4S. All five section boundaries fall at an image edge and all were cropped and appended bottom-against-top; every join is seamless, so the differences are the manufacturer's. All 176 rows pass the efficiency identity - printed thrust / printed power is the printed efficiency on every one - and printed power is voltage x current on all 176, with no run carrying an offset: the largest per-run mean k is 0.003 A, which is inside what the two-decimal columns allow. kv_options goes from 2 to 3: T-Motor's own page title names 1500KV/2850KV/3550KV, the Specifications block carries all three as Test Items and the report benches all three, while our two RaceDayQuads listings sell the outer two - the "retailer short" shape, a fifth T-Motor sheet whose KV list is longer than a source's. Six source facts recorded rather than repaired. First, the spec-block cross-check lands on two windings of three and both are truncated: 462W / 19.5A is the 1500 KV Gemfan 5125 6S 100% row (462.46 W / 19.48 A) and 412W / 26.8A is the 3550 KV Gemfan D90 4S 100% row (412.35 W / 26.87 A). The 2850 KV block's 734W / 31.4A is on no row: the highest power anywhere in that winding's two sections is the 4023 6S 100% row's 654.01 W and the highest current is that same row's 27.96 A. That winding's 6S set is also the only prop set on the sheet short of one its own lower-voltage set runs - the Gemfan 5125 - so the block is consistent with a run the report does not print, and nothing is derived from either figure. Second, two runs in different sections print an identical RPM column: the 2850 KV Gemfan D76 4S and the 3550 KV Gemfan D90 4S both read 21021, 23111, 25210, 26798, 27672, 29845, 31248, 32596, 33982, 35105 and 39042, while their thrust, voltage, current, power, efficiency and motor temperature columns all differ. One of the two is a copy, and the arithmetic says which is the odd one without saying where its own figures went: 39042 rpm at the D76 row's 15.60 V is 2503 rpm/V, 88% of 2850 KV under a 23.88 A load, where the same prop and winding on 6S gives 44067 at 23.38 V, 1885 rpm/V or 66%; the D90 row's 39042 at 15.34 V is 2545 rpm/V, 72% of 3550 KV. Both columns are published as printed, because the sheet states no other value for either run. Third, and the same shape one column over, the 1500 KV and 2850 KV/4S sections print the identical Operating Temperature set in the identical prop order - 65, 67, 69 and 64 C for D76, 4023, 5125 and the duct - although one section runs at 24 V and the other at 16 V. Fourth, the block states max_cells per winding and our published 3-4S is only the 3550 KV one: Rated Voltage (Lipo) is 6S at 1500 KV, 4-6S at 2850 KV and 3-4S at 3550 KV, and the report benches each winding inside its own rating. The figure came off RaceDayQuads, which sells the 1500 KV and the 3550 KV, so it is right for one of the two pages our entry is built from and wrong for the other. Fifth, the Product Drawing dimensions the mount as a bolt circle and prints the symbol - "O12" on a leader to the pitch circle through four holes with "4-M2" beside it - so mount_mm stays unpublished for the tenth T-Motor page running. The same drawing calls out M5 on the threaded prop end where the block gives Shaft Diameter 3mm; here the block and RaceDayQuads agree, so shaft stays at 3 mm and this is the V2808/V3008 two-shafts reading with the drawing alone on the other side. Sixth, the two halves of the report were run at different ambient temperatures, so the Operating Temperature column is not comparable across the page: the 1500 KV and 2850 KV sections state 8 C ambient and the 3550 KV ones 15 C. Within that last section the two 4S runs also start a volt apart - the Gemfan 4023 at 14.66 V and the D90 at 15.84 V - the only two runs on the sheet at one nominal pack size that do. The row schema holds no temperature column, so these are here. recommended_props stays empty although the sheet benches a D76, a D90, a 4023, a 5125 and a 75 mm duct: a bench prop set is not a recommendation, and T-Motor states none. Propeller names are as this sheet prints them, with the brand rendered as Gemfan.
