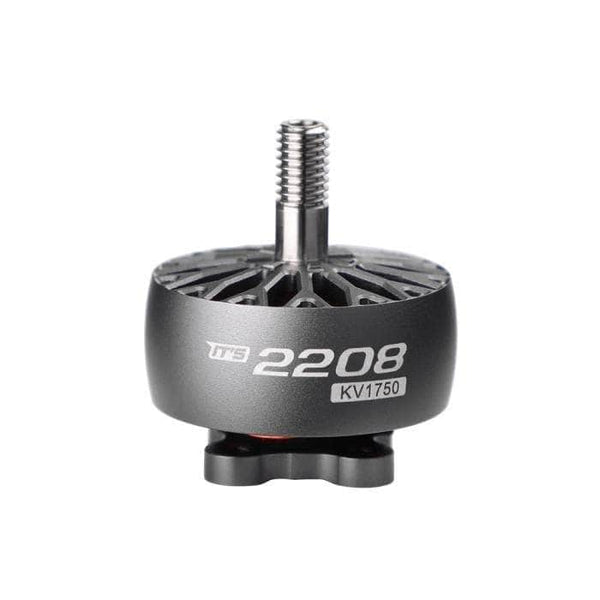

T-Motor IT'S 2208
| Stator | 2208 |
|---|---|
| KV options | 1750 |
| Weight | 36.6 g |
| Shaft | 4mm |
| Max cells | 6S |
| Configuration | 12N14P |
| Max thrust | 1887.5 g |
| Price (approx.) | 37.99 USD |
At 36.6 g it is 1.2 g heavier than average across the 3 2208-class motors in our database (avg 35.4 g).
Thrust data (T-Motor bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 1750 | T-Motor F5146-3 | 6S | 10 | 0.3 A | 4640.93 | 24.8 g | 3.6 g/W |
| 1750 | T-Motor F5146-3 | 6S | 20 | 0.9 A | 8680.86 | 99.2 g | 4.38 g/W |
| 1750 | T-Motor F5146-3 | 6S | 30 | 2.2 A | 12507.35 | 224.5 g | 4.29 g/W |
| 1750 | T-Motor F5146-3 | 6S | 40 | 4.2 A | 16152.18 | 398.4 g | 3.94 g/W |
| 1750 | T-Motor F5146-3 | 6S | 50 | 7.0 A | 19376.17 | 596.5 g | 3.54 g/W |
| 1750 | T-Motor F5146-3 | 6S | 60 | 10.6 A | 22245.97 | 804.0 g | 3.18 g/W |
| 1750 | T-Motor F5146-3 | 6S | 70 | 15.5 A | 25126.84 | 1048.4 g | 2.85 g/W |
| 1750 | T-Motor F5146-3 | 6S | 80 | 21.2 A | 27718.41 | 1298.6 g | 2.58 g/W |
| 1750 | T-Motor F5146-3 | 6S | 90 | 27.7 A | 30126.43 | 1565.8 g | 2.39 g/W |
| 1750 | T-Motor F5146-3 | 6S | 100 | 35.0 A | 32135.66 | 1809.7 g | 2.2 g/W |
| 1750 | Gemfan 51466-3 | 6S | 10 | 0.3 A | 4592.18 | 30.0 g | 3.98 g/W |
| 1750 | Gemfan 51466-3 | 6S | 20 | 1.1 A | 8553.46 | 117.2 g | 4.52 g/W |
| 1750 | Gemfan 51466-3 | 6S | 30 | 2.5 A | 12240.13 | 256.7 g | 4.24 g/W |
| 1750 | Gemfan 51466-3 | 6S | 40 | 4.9 A | 15757.11 | 444.4 g | 3.81 g/W |
| 1750 | Gemfan 51466-3 | 6S | 50 | 8.0 A | 18640.96 | 650.8 g | 3.41 g/W |
| 1750 | Gemfan 51466-3 | 6S | 60 | 12.3 A | 21512.57 | 884.1 g | 3.01 g/W |
| 1750 | Gemfan 51466-3 | 6S | 70 | 17.8 A | 24243.51 | 1146.3 g | 2.7 g/W |
| 1750 | Gemfan 51466-3 | 6S | 80 | 24.4 A | 26592.52 | 1402.5 g | 2.42 g/W |
| 1750 | Gemfan 51466-3 | 6S | 90 | 31.7 A | 28767.16 | 1653.4 g | 2.21 g/W |
| 1750 | Gemfan 51466-3 | 6S | 100 | 39.3 A | 30665.14 | 1783.0 g | 1.94 g/W |
| 1750 | Gemfan F4-3 | 6S | 10 | 0.3 A | 4595.97 | 33.8 g | 4.45 g/W |
| 1750 | Gemfan F4-3 | 6S | 20 | 1.1 A | 8532.83 | 125.2 g | 4.73 g/W |
| 1750 | Gemfan F4-3 | 6S | 30 | 2.6 A | 12110.69 | 272.9 g | 4.41 g/W |
| 1750 | Gemfan F4-3 | 6S | 40 | 5.0 A | 15696.32 | 465.6 g | 3.92 g/W |
| 1750 | Gemfan F4-3 | 6S | 50 | 8.0 A | 18605.53 | 663.2 g | 3.45 g/W |
| 1750 | Gemfan F4-3 | 6S | 60 | 12.3 A | 21520.54 | 894.3 g | 3.04 g/W |
| 1750 | Gemfan F4-3 | 6S | 70 | 17.7 A | 24289.98 | 1151.1 g | 2.73 g/W |
| 1750 | Gemfan F4-3 | 6S | 80 | 24.0 A | 26697.98 | 1399.9 g | 2.46 g/W |
| 1750 | Gemfan F4-3 | 6S | 90 | 31.2 A | 28916.67 | 1660.6 g | 2.26 g/W |
| 1750 | Gemfan F4-3 | 6S | 100 | 38.7 A | 30778.89 | 1887.5 g | 2.08 g/W |
| 1750 | Gemfan 5131-3 | 6S | 10 | 0.3 A | 4578.46 | 26.9 g | 3.79 g/W |
| 1750 | Gemfan 5131-3 | 6S | 20 | 1.0 A | 8568.89 | 105.1 g | 4.37 g/W |
| 1750 | Gemfan 5131-3 | 6S | 30 | 2.3 A | 12355.07 | 231.9 g | 4.17 g/W |
| 1750 | Gemfan 5131-3 | 6S | 40 | 4.4 A | 15955.03 | 406.8 g | 3.82 g/W |
| 1750 | Gemfan 5131-3 | 6S | 50 | 7.3 A | 19089.0 | 598.7 g | 3.41 g/W |
| 1750 | Gemfan 5131-3 | 6S | 60 | 11.2 A | 21930.38 | 804.2 g | 3.02 g/W |
| 1750 | Gemfan 5131-3 | 6S | 70 | 16.3 A | 24774.6 | 1055.6 g | 2.72 g/W |
| 1750 | Gemfan 5131-3 | 6S | 80 | 22.5 A | 27254.09 | 1347.4 g | 2.53 g/W |
| 1750 | Gemfan 5131-3 | 6S | 90 | 29.5 A | 29561.59 | 1616.9 g | 2.32 g/W |
| 1750 | Gemfan 5131-3 | 6S | 100 | 36.8 A | 31591.17 | 1830.7 g | 2.12 g/W |
Manufacturer bench figures (T-Motor bench, one 1750 KV winding at 6S (24 V) on four 5in props (T-Motor F5146-3, Gemfan 51466-3, Gemfan F4-3 and Gemfan 5131-3); 10 throttle points (10-100% in 10% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
Bench rows and configuration are from T-Motor's own "Product Drawing", "Specifications" and "Test Report" images on tmotorhobby.com/goods-1362.html, where the motor is sold as "ITS 2208 1750kv Smooth Freestyle FPV Motor", in the same Champion Co-brand category (category-200) as the ITS 2306.5. Identity with our RaceDayQuads ITS 2208 1750KV listing is the whole Specifications block - 1750 KV, 12N14P, an IN 4 mm / OUT 5 mm shaft, a 20AWG 150 mm lead, 36.6 g including cable, 6S, 1.18 A idle current at 10 V, 922 W Max. Power (1s) and 39 A Peak Current (1s) - of which the 36.6 g, the 1750 KV, the 6S and the 2208 stator were already on this page. The report is 40 rows: one 1750 KV winding at 6S (24 V) over the same four 5in props as the 2306.5's sheet, 10-100% in 10% steps. Max thrust is the Gemfan F4-3 100% row, 1887.5 g, where the page carried none. The spec-block cross-check lands on a row: the block's 922 W and 39 A are the Gemfan 51466-3 100% row, printed 921.6 W and 39.3 A. All 40 rows reproduce the power the sheet prints as voltage x current to within 6%, the 10% rows included - where the 2306.5's sheet, printed to the same 0.1 A resolution, does not - and every row's thrust over its printed power is its printed efficiency. Two source facts: the drawing calls out four M3 holes on a Ø16 bolt circle, so mount_mm stays empty for the seventeenth T-Motor page running, and the all-zero 0% row of each run is dropped. Prop names are the sheet's designations with the maker written out where it prints its initials (GF is Gemfan).
