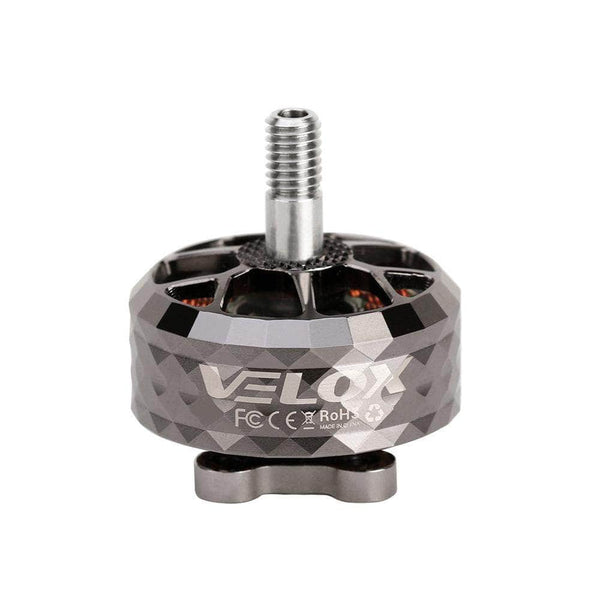

T-Motor VELOX V2 2208

T-Motor VELOX V2 2208
Image: racedayquads.com
Stator2208
KV options1750, 1950, 2450
Weight33.4 g
Shaft4mm
Max cells6S
Configuration12N14P
DimensionsØ27.6x31.95 mm
Winding resistance65 (1750KV) / 52 (1950KV) / 41 (2450KV) mOhm
Max thrust1856.13 g
Price (approx.)22.99 USD

At 33.4 g it is 2.0 g lighter than average across the 3 2208-class motors in our database (avg 35.4 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1750 T-Motor T5143S 6S 50 6.51 A 18900 536.79 g 3.39 g/W
1750 T-Motor T5143S 6S 55 8.2 A 20291 627.58 g 3.17 g/W
1750 T-Motor T5143S 6S 60 10.1 A 21817 729.81 g 3.01 g/W
1750 T-Motor T5143S 6S 65 12.17 A 23192 825.59 g 2.84 g/W
1750 T-Motor T5143S 6S 70 14.43 A 24410 928.24 g 2.71 g/W
1750 T-Motor T5143S 6S 75 16.83 A 25549 1025.0 g 2.57 g/W
1750 T-Motor T5143S 6S 80 19.0 A 26604 1106.36 g 2.47 g/W
1750 T-Motor T5143S 6S 85 21.42 A 27741 1200.09 g 2.38 g/W
1750 T-Motor T5143S 6S 90 24.17 A 28861 1285.86 g 2.27 g/W
1750 T-Motor T5143S 6S 95 27.55 A 29805 1385.39 g 2.16 g/W
1750 T-Motor T5143S 6S 100 30.76 A 30807 1460.13 g 2.05 g/W
1750 T-Motor T5146 6S 50 7.17 A 18472 633.09 g 3.64 g/W
1750 T-Motor T5146 6S 55 8.88 A 19847 727.76 g 3.4 g/W
1750 T-Motor T5146 6S 60 11.15 A 21296 855.11 g 3.21 g/W
1750 T-Motor T5146 6S 65 13.39 A 22596 963.58 g 3.02 g/W
1750 T-Motor T5146 6S 70 16.01 A 23813 1089.68 g 2.87 g/W
1750 T-Motor T5146 6S 75 18.7 A 24920 1201.72 g 2.72 g/W
1750 T-Motor T5146 6S 80 21.42 A 25678 1294.38 g 2.57 g/W
1750 T-Motor T5146 6S 85 23.6 A 26789 1369.53 g 2.48 g/W
1750 T-Motor T5146 6S 90 26.86 A 27783 1485.43 g 2.37 g/W
1750 T-Motor T5146 6S 95 30.09 A 28713 1583.68 g 2.27 g/W
1750 T-Motor T5146 6S 100 33.64 A 29591 1627.91 g 2.09 g/W
1750 T-Motor T5147 6S 50 7.42 A 18308 621.9 g 3.46 g/W
1750 T-Motor T5147 6S 55 9.21 A 19614 715.51 g 3.23 g/W
1750 T-Motor T5147 6S 60 11.49 A 21085 828.5 g 3.02 g/W
1750 T-Motor T5147 6S 65 13.81 A 22324 938.79 g 2.86 g/W
1750 T-Motor T5147 6S 70 16.56 A 23503 1057.01 g 2.7 g/W
1750 T-Motor T5147 6S 75 19.3 A 24639 1163.4 g 2.56 g/W
1750 T-Motor T5147 6S 80 21.88 A 25454 1287.46 g 2.51 g/W
1750 T-Motor T5147 6S 85 24.34 A 26470 1373.88 g 2.41 g/W
1750 T-Motor T5147 6S 90 27.65 A 27336 1499.18 g 2.33 g/W
1750 T-Motor T5147 6S 95 31.1 A 27820 1608.39 g 2.23 g/W
1750 T-Motor T5147 6S 100 34.32 A 29091 1679.61 g 2.12 g/W
1750 T-Motor T5150 6S 50 7.36 A 18376 635.54 g 3.56 g/W
1750 T-Motor T5150 6S 55 9.18 A 19631 736.73 g 3.33 g/W
1750 T-Motor T5150 6S 60 11.51 A 20887 858.99 g 3.12 g/W
1750 T-Motor T5150 6S 65 13.91 A 22286 976.58 g 2.95 g/W
1750 T-Motor T5150 6S 70 16.58 A 23503 1092.83 g 2.79 g/W
1750 T-Motor T5150 6S 75 19.35 A 24625 1207.75 g 2.65 g/W
1750 T-Motor T5150 6S 80 21.95 A 25539 1294.3 g 2.51 g/W
1750 T-Motor T5150 6S 85 24.43 A 26448 1382.12 g 2.42 g/W
1750 T-Motor T5150 6S 90 27.45 A 27482 1481.98 g 2.32 g/W
1750 T-Motor T5150 6S 95 30.86 A 28242 1591.9 g 2.22 g/W
1750 T-Motor T5150 6S 100 34.5 A 29075 1690.8 g 2.12 g/W
1950 T-Motor T5143S 6S 50 9.16 A 20782 655.2 g 3.04 g/W
1950 T-Motor T5143S 6S 55 11.33 A 22198 757.41 g 2.85 g/W
1950 T-Motor T5143S 6S 60 13.76 A 23908 857.15 g 2.66 g/W
1950 T-Motor T5143S 6S 65 16.47 A 24947 966.45 g 2.51 g/W
1950 T-Motor T5143S 6S 70 19.16 A 26470 1072.22 g 2.4 g/W
1950 T-Motor T5143S 6S 75 21.89 A 27124 1166.0 g 2.29 g/W
1950 T-Motor T5143S 6S 80 24.98 A 28639 1267.72 g 2.19 g/W
1950 T-Motor T5143S 6S 85 27.98 A 29728 1361.93 g 2.11 g/W
1950 T-Motor T5143S 6S 90 31.49 A 30790 1456.13 g 2.01 g/W
1950 T-Motor T5143S 6S 95 35.27 A 31750 1552.85 g 1.92 g/W
1950 T-Motor T5143S 6S 100 39.07 A 32451 1617.18 g 1.82 g/W
1950 T-Motor T5146 6S 50 9.87 A 20246 764.91 g 3.3 g/W
1950 T-Motor T5146 6S 55 12.39 A 21664 889.87 g 3.06 g/W
1950 T-Motor T5146 6S 60 15.2 A 23077 1023.46 g 2.88 g/W
1950 T-Motor T5146 6S 65 18.07 A 24559 1139.19 g 2.7 g/W
1950 T-Motor T5146 6S 70 21.03 A 25711 1239.65 g 2.53 g/W
1950 T-Motor T5146 6S 75 24.17 A 26541 1348.45 g 2.4 g/W
1950 T-Motor T5146 6S 80 27.47 A 27479 1474.0 g 2.32 g/W
1950 T-Motor T5146 6S 85 31.09 A 28574 1553.03 g 2.17 g/W
1950 T-Motor T5146 6S 90 34.2 A 29454 1627.01 g 2.07 g/W
1950 T-Motor T5146 6S 95 38.11 A 30349 1717.46 g 1.97 g/W
1950 T-Motor T5146 6S 100 42.1 A 31109 1769.29 g 1.85 g/W
1950 T-Motor T5147 6S 50 10.27 A 20005 755.17 g 3.13 g/W
1950 T-Motor T5147 6S 55 12.87 A 21528 876.22 g 2.9 g/W
1950 T-Motor T5147 6S 60 15.7 A 22947 993.17 g 2.71 g/W
1950 T-Motor T5147 6S 65 18.76 A 24231 1144.62 g 2.62 g/W
1950 T-Motor T5147 6S 70 21.74 A 25275 1253.18 g 2.48 g/W
1950 T-Motor T5147 6S 75 25.0 A 26401 1367.71 g 2.36 g/W
1950 T-Motor T5147 6S 80 27.89 A 27188 1453.31 g 2.25 g/W
1950 T-Motor T5147 6S 85 31.59 A 28065 1570.57 g 2.16 g/W
1950 T-Motor T5147 6S 90 35.14 A 29021 1674.67 g 2.08 g/W
1950 T-Motor T5147 6S 95 38.99 A 29821 1768.31 g 1.99 g/W
1950 T-Motor T5147 6S 100 43.29 A 30405 1823.06 g 1.86 g/W
1950 T-Motor T5150 6S 50 10.03 A 20054 764.43 g 3.24 g/W
1950 T-Motor T5150 6S 55 12.65 A 21371 896.79 g 3.02 g/W
1950 T-Motor T5150 6S 60 15.51 A 22873 1023.37 g 2.82 g/W
1950 T-Motor T5150 6S 65 18.64 A 24259 1152.06 g 2.65 g/W
1950 T-Motor T5150 6S 70 21.42 A 25338 1260.37 g 2.53 g/W
1950 T-Motor T5150 6S 75 24.97 A 26426 1377.74 g 2.38 g/W
1950 T-Motor T5150 6S 80 27.76 A 27166 1460.22 g 2.28 g/W
1950 T-Motor T5150 6S 85 31.53 A 28063 1584.91 g 2.18 g/W
1950 T-Motor T5150 6S 90 35.06 A 29088 1688.25 g 2.1 g/W
1950 T-Motor T5150 6S 95 38.94 A 29844 1778.13 g 2.0 g/W
1950 T-Motor T5150 6S 100 43.04 A 30451 1856.13 g 1.9 g/W
2450 T-Motor T5143S 4S 50 7.73 A 17774 479.94 g 3.5 g/W
2450 T-Motor T5143S 4S 55 9.8 A 18968 556.47 g 3.29 g/W
2450 T-Motor T5143S 4S 60 11.69 A 20180 619.42 g 3.13 g/W
2450 T-Motor T5143S 4S 65 14.12 A 21420 696.4 g 2.97 g/W
2450 T-Motor T5143S 4S 70 16.74 A 22431 775.8 g 2.83 g/W
2450 T-Motor T5143S 4S 75 19.59 A 23666 854.87 g 2.7 g/W
2450 T-Motor T5143S 4S 80 22.4 A 24561 922.33 g 2.58 g/W
2450 T-Motor T5143S 4S 85 25.06 A 25431 989.44 g 2.49 g/W
2450 T-Motor T5143S 4S 90 28.03 A 26323 1069.09 g 2.43 g/W
2450 T-Motor T5143S 4S 95 31.59 A 27261 1145.72 g 2.34 g/W
2450 T-Motor T5143S 4S 100 35.4 A 28051 1223.09 g 2.25 g/W
2450 T-Motor T5146 4S 50 8.43 A 17254 547.3 g 3.71 g/W
2450 T-Motor T5146 4S 55 10.45 A 18355 633.32 g 3.56 g/W
2450 T-Motor T5146 4S 60 12.77 A 19361 709.81 g 3.33 g/W
2450 T-Motor T5146 4S 65 15.37 A 20706 798.96 g 3.17 g/W
2450 T-Motor T5146 4S 70 18.18 A 21756 889.05 g 3.02 g/W
2450 T-Motor T5146 4S 75 21.35 A 22795 982.74 g 2.88 g/W
2450 T-Motor T5146 4S 80 24.71 A 23628 1070.43 g 2.74 g/W
2450 T-Motor T5146 4S 85 27.69 A 24446 1138.88 g 2.63 g/W
2450 T-Motor T5146 4S 90 30.97 A 25015 1221.79 g 2.55 g/W
2450 T-Motor T5146 4S 95 34.33 A 25920 1292.65 g 2.46 g/W
2450 T-Motor T5146 4S 100 38.62 A 26515 1381.87 g 2.37 g/W
2450 T-Motor T5147 4S 50 8.99 A 17077 561.96 g 3.59 g/W
2450 T-Motor T5147 4S 55 11.03 A 18241 637.37 g 3.39 g/W
2450 T-Motor T5147 4S 60 13.55 A 19375 722.66 g 3.2 g/W
2450 T-Motor T5147 4S 65 16.35 A 20416 814.72 g 3.04 g/W
2450 T-Motor T5147 4S 70 19.48 A 21519 901.26 g 2.86 g/W
2450 T-Motor T5147 4S 75 22.44 A 22400 976.45 g 2.72 g/W
2450 T-Motor T5147 4S 80 25.8 A 23370 1055.35 g 2.59 g/W
2450 T-Motor T5147 4S 85 28.92 A 24159 1117.34 g 2.47 g/W
2450 T-Motor T5147 4S 90 32.04 A 24925 1188.32 g 2.39 g/W
2450 T-Motor T5147 4S 95 35.49 A 25645 1294.81 g 2.38 g/W
2450 T-Motor T5147 4S 100 39.64 A 26360 1375.61 g 2.29 g/W
2450 T-Motor T5150 4S 50 8.89 A 17299 576.31 g 3.71 g/W
2450 T-Motor T5150 4S 55 11.14 A 18355 666.65 g 3.51 g/W
2450 T-Motor T5150 4S 60 13.67 A 19508 754.75 g 3.31 g/W
2450 T-Motor T5150 4S 65 16.34 A 20626 842.23 g 3.13 g/W
2450 T-Motor T5150 4S 70 19.28 A 21688 924.64 g 2.96 g/W
2450 T-Motor T5150 4S 75 22.55 A 22669 1020.27 g 2.83 g/W
2450 T-Motor T5150 4S 80 25.92 A 23635 1104.85 g 2.69 g/W
2450 T-Motor T5150 4S 85 29.17 A 24365 1183.23 g 2.59 g/W
2450 T-Motor T5150 4S 90 32.65 A 24758 1262.38 g 2.49 g/W
2450 T-Motor T5150 4S 95 36.12 A 25607 1346.65 g 2.43 g/W
2450 T-Motor T5150 4S 100 40.34 A 26424 1426.3 g 2.33 g/W

Manufacturer bench figures (T-Motor bench, four T-Motor 5in props (T5143S, T5146, T5147, T5150) across three KV: 1750 and 1950 KV at 6S (23 V), 2450 KV at 4S (15.5 V); 11 throttle points (50-100% in 5% steps) on each); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Test Report", "Specifications" and "Product Drawing" images on tmotorhobby.com/goods-1109.html, where the motor is sold as VELOX VELOCE V2208 and the report's own Type column reads "V2208 V2". Identity with our retail listing is the 2208 stator, a 4 mm shaft, 6S and 33.4 g - the last being the 1950 KV winding's weight excluding cable, the block giving 36.9 g incl. / 33.1 g excl. at 1750 KV and 37.2 g / 33.4 g at both 1950 and 2450 KV - and both KV RaceDayQuads sells appear as blocks. The block and the report carry a third winding, 2450 KV, which neither the retailer nor T-Motor's own page title lists, so kv_options gains it; that winding is rated 4-5S and is benched at 4S, while max_cells stays 6S, the rating of the two 6S windings. The block's Max. Power (60s) / Peak Current (60s) is that winding's own 100% row, truncated rather than rounded: 796 W / 34.5 A is T5150 at 1750 KV (796.46 W / 34.50 A), 980 W / 43.2 A is T5147 at 1950 KV (980.16 W / 43.29 A) and 611 W / 40.3 A is T5150 at 2450 KV (611.79 W / 40.34 A), so the spec-block cross-check lands on all three. One source fact recorded rather than repaired, and it runs through the whole sheet: the Power column is not voltage x current but voltage x (current + a constant), and the constant is a property of the winding - 0.21 A at 1750 KV, 0.00 A at 1950 KV and 1.10 A at 2450 KV, each holding to +/-0.01 A across all 44 of that winding's rows. Every one of the 132 rows is exactly consistent with its own printed power and efficiency; at 2450 KV the missing 1.10 A is a large enough share of a low-throttle draw that 18 rows fall outside check_thrust.py's 6% band against voltage x current, and those are listed in ACCEPTED_EFF with the arithmetic. Mount is left unpublished for the same reason as on the V2306 and V2207 V3: the drawing calls out "Ø16" through two opposite holes with "4-M3" beside it, a 16 mm bolt circle (11.3 mm between consecutive holes), not the 16x16 square the mount column holds - and unlike the later V3 drawings (uploaded 2024), this 2021 one prints the Ø, which is what identifies the bare 16 on those as the same measurement. Propeller names are as this sheet prints them (T5143S, T5146, T5147, T5150); sibling T-Motor pages whose sheets printed the blade count instead carry the same props as "... Tri-Blade".
