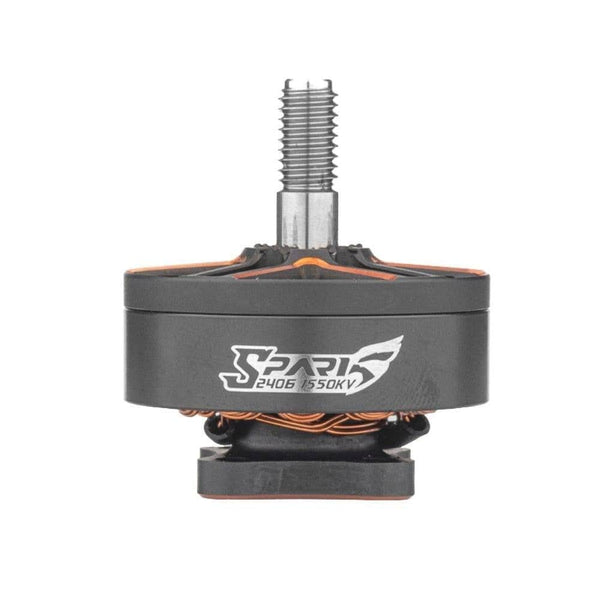

VCI HOBBY Spark 2406

VCI HOBBY Spark 2406
Image: racedayquads.com
Stator2406
KV options1550
Weight33.7 g
ShaftM5
Max cells6S
Configuration12S14P
DimensionsØ28.8x32.3 mm
Max thrust1807 g
Price (approx.)18.49 USD

At 33.7 g it is 1.2 g lighter than average across the 3 2406-class motors in our database (avg 34.9 g).

Thrust data (VCI HOBBY bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1550 GF 6042-3 4S 30 1.2 A 9232 162 g 8.44 g/W
1550 GF 6042-3 4S 40 3.17 A 11855 408 g 8.04 g/W
1550 GF 6042-3 4S 50 6.08 A 13865 553 g 5.68 g/W
1550 GF 6042-3 4S 60 9.86 A 16150 746 g 4.73 g/W
1550 GF 6042-3 4S 70 15.62 A 18567 1026 g 4.11 g/W
1550 GF 6042-3 4S 80 22.18 A 20348 1327 g 3.74 g/W
1550 GF 6042-3 4S 90 29.53 A 21753 1570 g 3.32 g/W
1550 GF 6042-3 4S 100 40.06 A 22459 1807 g 2.82 g/W
1850 GF 7042-2 4S 30 2.3 A 7343 198 g 5.38 g/W
1850 GF 7042-2 4S 40 4.54 A 9197 302 g 4.16 g/W
1850 GF 7042-2 4S 50 8.49 A 11130 509 g 3.75 g/W
1850 GF 7042-2 4S 60 13.36 A 12814 720 g 3.37 g/W
1850 GF 7042-2 4S 70 19.34 A 14300 869 g 2.81 g/W
1850 GF 7042-2 4S 80 26.75 A 15527 1141 g 2.67 g/W
1850 GF 7042-2 4S 90 34.69 A 16466 1282 g 2.31 g/W
1850 GF 7042-2 4S 100 42.81 A 16944 1423 g 2.08 g/W

Manufacturer bench figures (VCI Hobby bench, 1550 KV and 1850 KV at 4S (16 V), 8 throttle points (30-100%) per KV on one 6in and one 7in prop); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Hurricane LR 6026-2 6.0x2.6 2 3.0 g
Gemfan Freestyle 6030 6.0x3.0 3 4.45 g
HQProp 5.5X2.2X3 5.5x2.2 3 4.6 g
HQProp 5535 5.5x3.5x3 V2 5.5x3.5 3 4.6 g
HQProp 6x4.3x2 6.0x4.3 2 4.7 g

Where this data comes from

The rows are VCI Hobby's own 'Testing Data' table, published as an image in the Specifications tab of the motor's product page on vcihobby.com. VCI sells and benches this motor in two windings and both tables are here; `kv_options` keeps the 1550 KV our retail source sells, and here the two agree anyway - 1807 g on the 1550 KV is the larger figure. BOTH WINDINGS WERE BENCHED AT 4S (16 V), which is what the sheets print, although the 1550 KV panel states a 6S (24 V) rated voltage and the 1850 KV panel states 4S; every row's Power column is 16 V x its own current. Each panel lands on a row: 40.06 A / 640.96 W is the 1550 KV's 100% row and 42.81 A / 684.96 W the 1850 KV's. Identity with our retail listing is 1550 KV, the 2406 stator (the panels print Ø24*L6 mm) and 33.7 g including cable; the M5 shaft is new on this page, which carried no shaft figure at all.
