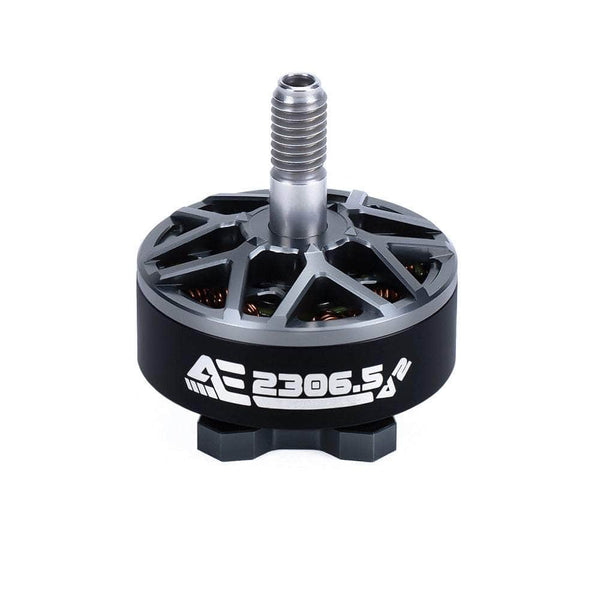

Axisflying AE V2 2306.5

Axisflying AE V2 2306.5
Image: racedayquads.com
Stator2306.5
KV options1860, 1960
Weight33.7 g
Shaft5mm
Max cells6S
Configuration12N14P
Dimensions27.9x32.7 mm
Mount16x16mm
Winding resistance60.16 (1960KV) / 70.62 (1860KV) mOhm
Max thrust1760 g
Price (approx.)19.49 USD

At 33.7 g it is 1.2 g heavier than average across the 21 2306-class motors in our database (avg 32.5 g).

Thrust data (Axisflying bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1960 BB4943.5 6S 30 2.51 A 12806 222 g 3.69 g/W
1960 BB4943.5 6S 40 5.12 A 16515 383 g 3.13 g/W
1960 BB4943.5 6S 50 8.74 A 19849 567 g 2.71 g/W
1960 BB4943.5 6S 60 13.72 A 23310 795 g 2.43 g/W
1960 BB4943.5 6S 70 19.13 A 26082 1024 g 2.25 g/W
1960 BB4943.5 6S 80 25.49 A 28327 1295 g 2.14 g/W
1960 BB4943.5 6S 90 33.58 A 31222 1560 g 1.95 g/W
1960 BB4943.5 6S 100 41.15 A 32903 1685 g 1.76 g/W
1960 51466 6S 30 2.44 A 11998 210 g 3.59 g/W
1960 51466 6S 40 4.75 A 15554 366 g 3.23 g/W
1960 51466 6S 50 8.26 A 18926 562 g 2.85 g/W
1960 51466 6S 60 12.54 A 21823 779 g 2.61 g/W
1960 51466 6S 70 17.77 A 24653 1022 g 2.43 g/W
1960 51466 6S 80 23.4 A 26902 1241 g 2.25 g/W
1960 51466 6S 90 30.96 A 29808 1545 g 2.13 g/W
1960 51466 6S 100 44.54 A 32652 1760 g 1.69 g/W
1860 BB4943.5 6S 30 1.88 A 11931 191 g 4.24 g/W
1860 BB4943.5 6S 40 3.99 A 15303 327 g 3.42 g/W
1860 BB4943.5 6S 50 6.64 A 18358 483 g 3.04 g/W
1860 BB4943.5 6S 60 10.62 A 21548 676 g 2.66 g/W
1860 BB4943.5 6S 70 15.53 A 24583 895 g 2.43 g/W
1860 BB4943.5 6S 80 20.58 A 27072 1109 g 2.27 g/W
1860 BB4943.5 6S 90 27.96 A 30122 1399 g 2.12 g/W
1860 BB4943.5 6S 100 35.5 A 32282 1607 g 1.93 g/W
1860 51466 6S 30 2.11 A 11767 201 g 3.99 g/W
1860 51466 6S 40 4.15 A 15035 344 g 3.47 g/W
1860 51466 6S 50 7.0 A 18048 517 g 3.1 g/W
1860 51466 6S 60 11.04 A 21175 731 g 2.78 g/W
1860 51466 6S 70 16.22 A 24234 973 g 2.53 g/W
1860 51466 6S 80 21.6 A 26568 1200 g 2.35 g/W
1860 51466 6S 90 29.37 A 29297 1488 g 2.16 g/W
1860 51466 6S 100 36.86 A 31222 1670 g 1.94 g/W

Manufacturer bench figures (Axisflying bench, 6S, 8 throttle points (30-100%) per KV on two 5in props); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

33.7 g (1960 KV) / 33.45 g (1860 KV) with wire, 27.9x32.7 mm, 12N14P, 60.16/70.62 mOhm; motor temperature at full throttle 44-94 degC depending on prop. CAUTION: on the 51466 prop the 30-90% rows of this sheet are identical, digit for digit, to Axisflying's AE2207 V2 sheet (only the 100% row differs), so at least one of the two is copied rather than measured. Both are reproduced as published
