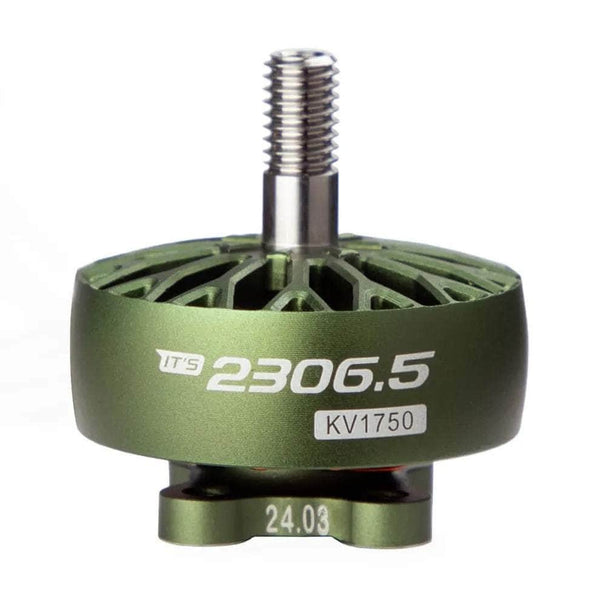

T-Motor IT'S 2306.5
| Stator | 2306.5 |
|---|---|
| KV options | 1750 |
| Weight | 33.4 g |
| Shaft | 4mm |
| Max cells | 6S |
| Configuration | 12N14P |
| Max thrust | 1756.8 g |
| Price (approx.) | 36.99 USD |
At 33.4 g it is right at the class average across the 21 2306-class motors in our database (avg 32.5 g).
Thrust data (T-Motor bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 1750 | T-Motor F5146-3 | 6S | 10 | 0.3 A | 4577.26 | 25.6 g | 4.23 g/W |
| 1750 | T-Motor F5146-3 | 6S | 20 | 0.9 A | 8579.59 | 98.6 g | 4.8 g/W |
| 1750 | T-Motor F5146-3 | 6S | 30 | 2.0 A | 12273.53 | 217.6 g | 4.56 g/W |
| 1750 | T-Motor F5146-3 | 6S | 40 | 3.8 A | 15813.53 | 379.5 g | 4.12 g/W |
| 1750 | T-Motor F5146-3 | 6S | 50 | 6.3 A | 18778.61 | 555.8 g | 3.67 g/W |
| 1750 | T-Motor F5146-3 | 6S | 60 | 9.7 A | 21606.44 | 755.0 g | 3.26 g/W |
| 1750 | T-Motor F5146-3 | 6S | 70 | 14.2 A | 24471.84 | 990.2 g | 2.92 g/W |
| 1750 | T-Motor F5146-3 | 6S | 80 | 19.6 A | 26928.15 | 1220.5 g | 2.63 g/W |
| 1750 | T-Motor F5146-3 | 6S | 90 | 25.7 A | 29278.22 | 1468.8 g | 2.42 g/W |
| 1750 | T-Motor F5146-3 | 6S | 100 | 32.3 A | 31251.48 | 1695.5 g | 2.23 g/W |
| 1750 | Gemfan F4-3 | 6S | 10 | 0.3 A | 4549.27 | 32.3 g | 4.83 g/W |
| 1750 | Gemfan F4-3 | 6S | 20 | 1.0 A | 8380.37 | 120.5 g | 5.02 g/W |
| 1750 | Gemfan F4-3 | 6S | 30 | 2.4 A | 11986.52 | 261.2 g | 4.59 g/W |
| 1750 | Gemfan F4-3 | 6S | 40 | 4.4 A | 15172.36 | 431.1 g | 4.07 g/W |
| 1750 | Gemfan F4-3 | 6S | 50 | 7.3 A | 18107.74 | 621.7 g | 3.54 g/W |
| 1750 | Gemfan F4-3 | 6S | 60 | 11.3 A | 20932.63 | 839.0 g | 3.11 g/W |
| 1750 | Gemfan F4-3 | 6S | 70 | 16.3 A | 23625.69 | 1080.9 g | 2.78 g/W |
| 1750 | Gemfan F4-3 | 6S | 80 | 22.2 A | 25919.45 | 1310.8 g | 2.49 g/W |
| 1750 | Gemfan F4-3 | 6S | 90 | 28.7 A | 28070.97 | 1545.7 g | 2.28 g/W |
| 1750 | Gemfan F4-3 | 6S | 100 | 35.7 A | 29857.62 | 1756.8 g | 2.09 g/W |
| 1750 | Gemfan 51466-3 | 6S | 10 | 0.3 A | 4567.66 | 30.3 g | 4.66 g/W |
| 1750 | Gemfan 51466-3 | 6S | 20 | 1.0 A | 8449.97 | 115.7 g | 4.94 g/W |
| 1750 | Gemfan 51466-3 | 6S | 30 | 2.3 A | 12026.48 | 249.2 g | 4.49 g/W |
| 1750 | Gemfan 51466-3 | 6S | 40 | 4.4 A | 15236.87 | 415.4 g | 3.98 g/W |
| 1750 | Gemfan 51466-3 | 6S | 50 | 7.3 A | 18114.17 | 609.3 g | 3.51 g/W |
| 1750 | Gemfan 51466-3 | 6S | 60 | 11.3 A | 20915.29 | 830.6 g | 3.09 g/W |
| 1750 | Gemfan 51466-3 | 6S | 70 | 16.4 A | 23588.14 | 1075.1 g | 2.76 g/W |
| 1750 | Gemfan 51466-3 | 6S | 80 | 22.4 A | 25806.36 | 1307.5 g | 2.46 g/W |
| 1750 | Gemfan 51466-3 | 6S | 90 | 29.1 A | 27856.48 | 1543.5 g | 2.25 g/W |
| 1750 | Gemfan 51466-3 | 6S | 100 | 36.1 A | 29706.07 | 1678.3 g | 1.98 g/W |
| 1750 | Gemfan 5131-3 | 6S | 10 | 0.3 A | 4599.52 | 27.9 g | 4.46 g/W |
| 1750 | Gemfan 5131-3 | 6S | 20 | 0.9 A | 8530.73 | 105.2 g | 4.82 g/W |
| 1750 | Gemfan 5131-3 | 6S | 30 | 2.1 A | 12113.98 | 227.3 g | 4.44 g/W |
| 1750 | Gemfan 5131-3 | 6S | 40 | 4.1 A | 15600.43 | 387.7 g | 3.98 g/W |
| 1750 | Gemfan 5131-3 | 6S | 50 | 6.7 A | 18566.7 | 564.2 g | 3.52 g/W |
| 1750 | Gemfan 5131-3 | 6S | 60 | 10.3 A | 21372.08 | 764.5 g | 3.11 g/W |
| 1750 | Gemfan 5131-3 | 6S | 70 | 15.0 A | 24162.96 | 997.5 g | 2.78 g/W |
| 1750 | Gemfan 5131-3 | 6S | 80 | 20.7 A | 26489.45 | 1243.0 g | 2.53 g/W |
| 1750 | Gemfan 5131-3 | 6S | 90 | 27.1 A | 28676.84 | 1513.1 g | 2.36 g/W |
| 1750 | Gemfan 5131-3 | 6S | 100 | 34.0 A | 30533.28 | 1728.6 g | 2.16 g/W |
Manufacturer bench figures (T-Motor bench, one 1750 KV winding at 6S (24 V) on four 5in props (T-Motor F5146-3, Gemfan F4-3, Gemfan 51466-3 and Gemfan 5131-3); 10 throttle points (10-100% in 10% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
Bench rows and configuration are from T-Motor's own "Product Drawing", "Specifications" and "Test Report" images on tmotorhobby.com/goods-1361.html, where the motor is sold as "ITS 2306.5 6S 1750kv Freestyle FPV Motor". The page is in the Champion Co-brand category (category-200) and not in the product index every earlier T-Motor read here used, which is why this sheet was recorded as missing rather than absent. Identity with our RaceDayQuads ITS 2306.5 1750KV listing is the whole Specifications block - 1750 KV, 12N14P, an IN 4 mm / OUT 5 mm shaft, a 20AWG 150 mm lead, 33.4 g including cable, 6S, 0.95 A idle current at 10 V, 849 W Max. Power (1s) and 36 A Peak Current (1s) - of which the 33.4 g, the 1750 KV, the 6S and the 2306.5 stator were already on this page. The report is 40 rows: one 1750 KV winding at 6S (24 V) over four 5in props, 10-100% in 10% steps. Max thrust is the Gemfan F4-3 100% row, 1756.8 g, where the page carried none. The spec-block cross-check lands on a row: the block's 849 W and 36 A are the Gemfan 51466-3 100% row, printed 848.8 W and 36.1 A. Every row's thrust divided by the power printed beside it is that row's printed efficiency. Three things recorded rather than repaired. First, the current column is printed to 0.1 A, so on the four 10% rows - a 0.26-0.30 A draw - voltage x current cannot reproduce the power the sheet prints (7.2 W against 6.1-6.7 W); those four rows follow their own printed power and are named in check_thrust's ACCEPTED_EFF. Second, the drawing calls out four M3 holes on a Ø16 bolt circle, so mount_mm stays empty for the sixteenth T-Motor page running. Third, the 0% row of each run is all zeros and is dropped, as in every other entry in this overlay. Prop names are the sheet's designations with the maker written out where it prints its initials (GF is Gemfan).
