T-Motor Velox V2 V2306.5

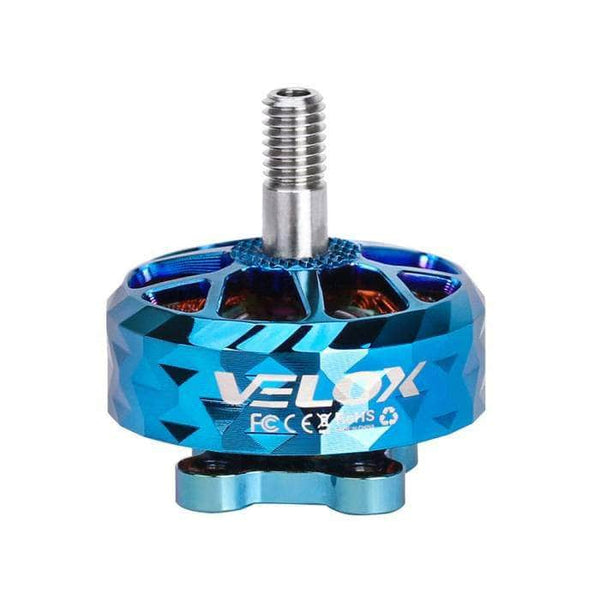

T-Motor Velox V2 V2306.5
Image: racedayquads.com
Stator2306.5
KV options1950, 2550
Weight29.4 g
Shaft4mm
Max cells4-6S
Configuration12N14P
DimensionsØ28.6x30.45 mm
Winding resistance67 (1950KV) / 47 (2550KV) mOhm
Max thrust1699.82 g
Price (approx.)22.99 USD

At 29.4 g it is 3.1 g lighter than average across the 21 2306-class motors in our database (avg 32.5 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1950 T-Motor T4943 6S 50 5.09 A 20559 557.63 g 4.51 g/W
1950 T-Motor T4943 6S 55 7.51 A 22001 680.81 g 3.74 g/W
1950 T-Motor T4943 6S 60 10.35 A 23343 812.27 g 3.25 g/W
1950 T-Motor T4943 6S 65 13.24 A 24455 935.79 g 2.93 g/W
1950 T-Motor T4943 6S 70 16.22 A 25687 1048.65 g 2.69 g/W
1950 T-Motor T4943 6S 75 18.94 A 26523 1148.04 g 2.53 g/W
1950 T-Motor T4943 6S 80 22.3 A 27328 1246.1 g 2.34 g/W
1950 T-Motor T4943 6S 85 24.78 A 27805 1313.24 g 2.22 g/W
1950 T-Motor T4943 6S 90 28.14 A 28669 1413.34 g 2.11 g/W
1950 T-Motor T4943 6S 95 31.8 A 29260 1490.29 g 1.98 g/W
1950 T-Motor T4943 6S 100 35.07 A 29825 1537.18 g 1.85 g/W
1950 T-Motor T5143S 6S 50 7.51 A 20195 653.8 g 3.48 g/W
1950 T-Motor T5143S 6S 55 9.8 A 21835 771.89 g 3.15 g/W
1950 T-Motor T5143S 6S 60 12.26 A 23313 883.02 g 2.88 g/W
1950 T-Motor T5143S 6S 65 14.9 A 24650 991.06 g 2.67 g/W
1950 T-Motor T5143S 6S 70 17.46 A 25784 1090.67 g 2.51 g/W
1950 T-Motor T5143S 6S 75 20.1 A 26791 1182.36 g 2.37 g/W
1950 T-Motor T5143S 6S 80 22.76 A 27651 1263.06 g 2.24 g/W
1950 T-Motor T5143S 6S 85 25.9 A 28604 1362.12 g 2.13 g/W
1950 T-Motor T5143S 6S 90 28.93 A 29593 1444.82 g 2.03 g/W
1950 T-Motor T5143S 6S 95 32.27 A 30160 1518.32 g 1.91 g/W
1950 T-Motor T5143S 6S 100 35.7 A 30991 1591.45 g 1.82 g/W
1950 T-Motor T5146 6S 50 8.27 A 19563 761.81 g 3.73 g/W
1950 T-Motor T5146 6S 55 10.72 A 21098 890.27 g 3.37 g/W
1950 T-Motor T5146 6S 60 13.45 A 22548 1014.02 g 3.07 g/W
1950 T-Motor T5146 6S 65 16.08 A 23699 1128.21 g 2.86 g/W
1950 T-Motor T5146 6S 70 19.01 A 24903 1242.7 g 2.67 g/W
1950 T-Motor T5146 6S 75 21.96 A 25647 1346.31 g 2.51 g/W
1950 T-Motor T5146 6S 80 24.67 A 26466 1424.57 g 2.37 g/W
1950 T-Motor T5146 6S 85 27.57 A 27156 1518.56 g 2.27 g/W
1950 T-Motor T5146 6S 90 30.89 A 28256 1610.16 g 2.15 g/W
1950 T-Motor T5146 6S 95 34.3 A 28931 1646.84 g 1.99 g/W
1950 T-Motor T5146 6S 100 37.43 A 29557 1699.82 g 1.88 g/W
1950 T-Motor T5147 6S 50 8.65 A 19309 752.63 g 3.55 g/W
1950 T-Motor T5147 6S 55 8.67 A 21823 803.09 g 3.79 g/W
1950 T-Motor T5147 6S 60 11.13 A 23301 914.22 g 3.37 g/W
1950 T-Motor T5147 6S 65 13.77 A 24638 1022.26 g 3.05 g/W
1950 T-Motor T5147 6S 70 16.33 A 25772 1121.87 g 2.83 g/W
1950 T-Motor T5147 6S 75 18.97 A 26779 1213.56 g 2.64 g/W
1950 T-Motor T5147 6S 80 21.63 A 27639 1294.26 g 2.48 g/W
1950 T-Motor T5147 6S 85 24.77 A 28592 1393.32 g 2.33 g/W
1950 T-Motor T5147 6S 90 27.8 A 29581 1476.02 g 2.21 g/W
1950 T-Motor T5147 6S 95 31.14 A 30148 1549.52 g 2.08 g/W
1950 T-Motor T5147 6S 100 34.57 A 30979 1622.65 g 1.96 g/W
2550 T-Motor T5143S 4S 50 5.91 A 16275 393.15 g 4.3 g/W
2550 T-Motor T5143S 4S 55 7.42 A 17441 458.96 g 4.01 g/W
2550 T-Motor T5143S 4S 60 9.23 A 18648 529.05 g 3.72 g/W
2550 T-Motor T5143S 4S 65 11.09 A 19726 592.75 g 3.48 g/W
2550 T-Motor T5143S 4S 70 13.16 A 20798 663.23 g 3.29 g/W
2550 T-Motor T5143S 4S 75 15.51 A 21869 738.0 g 3.12 g/W
2550 T-Motor T5143S 4S 80 18.09 A 22935 813.72 g 2.96 g/W
2550 T-Motor T5143S 4S 85 20.65 A 23863 884.14 g 2.83 g/W
2550 T-Motor T5143S 4S 90 23.2 A 24710 951.14 g 2.72 g/W
2550 T-Motor T5143S 4S 95 26.04 A 25589 1025.78 g 2.63 g/W
2550 T-Motor T5143S 4S 100 29.32 A 26457 1100.42 g 2.52 g/W
2550 T-Motor T5146 4S 50 6.45 A 15866 458.94 g 4.16 g/W
2550 T-Motor T5146 4S 55 8.19 A 16985 531.85 g 3.88 g/W
2550 T-Motor T5146 4S 60 10.24 A 18207 612.91 g 3.65 g/W
2550 T-Motor T5146 4S 65 12.34 A 19259 687.59 g 3.44 g/W
2550 T-Motor T5146 4S 70 14.53 A 20236 760.42 g 3.27 g/W
2550 T-Motor T5146 4S 75 17.21 A 21304 844.11 g 3.1 g/W
2550 T-Motor T5146 4S 80 19.87 A 22230 921.48 g 2.96 g/W
2550 T-Motor T5146 4S 85 22.78 A 22970 995.77 g 2.81 g/W
2550 T-Motor T5146 4S 90 25.62 A 23884 1064.65 g 2.69 g/W
2550 T-Motor T5146 4S 95 28.56 A 24668 1133.21 g 2.59 g/W
2550 T-Motor T5146 4S 100 31.95 A 25430 1209.05 g 2.49 g/W
2550 T-Motor T5147 4S 50 6.74 A 15615 457.27 g 4.39 g/W
2550 T-Motor T5147 4S 55 8.65 A 16814 534.38 g 4.01 g/W
2550 T-Motor T5147 4S 60 10.78 A 17915 613.84 g 3.71 g/W
2550 T-Motor T5147 4S 65 13.0 A 18998 689.88 g 3.47 g/W
2550 T-Motor T5147 4S 70 15.32 A 19962 761.8 g 3.26 g/W
2550 T-Motor T5147 4S 75 17.99 A 20902 839.19 g 3.07 g/W
2550 T-Motor T5147 4S 80 20.7 A 21899 905.18 g 2.89 g/W
2550 T-Motor T5147 4S 85 23.63 A 22567 974.66 g 2.74 g/W
2550 T-Motor T5147 4S 90 26.57 A 23536 1049.42 g 2.63 g/W
2550 T-Motor T5147 4S 95 29.64 A 24294 1111.58 g 2.51 g/W
2550 T-Motor T5147 4S 100 33.04 A 24912 1184.59 g 2.42 g/W
2550 T-Motor T5150 4S 50 6.58 A 15674 465.31 g 4.57 g/W
2550 T-Motor T5150 4S 55 8.41 A 16863 539.8 g 4.17 g/W
2550 T-Motor T5150 4S 60 10.48 A 18018 617.86 g 3.84 g/W
2550 T-Motor T5150 4S 65 12.72 A 19075 695.02 g 3.57 g/W
2550 T-Motor T5150 4S 70 14.99 A 20011 770.25 g 3.37 g/W
2550 T-Motor T5150 4S 75 17.65 A 21035 851.95 g 3.18 g/W
2550 T-Motor T5150 4S 80 20.49 A 21958 931.73 g 3.0 g/W
2550 T-Motor T5150 4S 85 23.43 A 22683 1009.41 g 2.86 g/W
2550 T-Motor T5150 4S 90 26.47 A 23546 1084.63 g 2.73 g/W
2550 T-Motor T5150 4S 95 29.44 A 24330 1152.36 g 2.62 g/W
2550 T-Motor T5150 4S 100 32.88 A 25060 1225.91 g 2.51 g/W

Manufacturer bench figures (T-Motor bench, five T-Motor props across two KV: T4943, T5143S, T5146 and T5147 at 1950 KV on 6S (24 V), T5143S, T5146, T5147 and T5150 at 2550 KV on 4S (15 V); 11 throttle points (50-100% in 5% steps) on each); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Test Report", "Specifications" and "Product Drawing" images on tmotorhobby.com/goods-1110.html, where the motor is sold as VELOX VELOCE V2306.5 and the report's own Type column reads "V2306.5 V2". Identity with our retail listing is the 2306.5 stator, a 4 mm shaft and 29.4 g - the 1950 KV winding's weight excluding cable, the block giving 33.2 g incl. / 29.4 g excl. at 1950 KV and 33.8 g / 30 g at 2550 KV - and the 1950 KV RaceDayQuads sells appearing as a block. The block and the report carry a second winding, 2550 KV, which the retailer does not list, so kv_options gains it; that winding is rated 4-5S and is benched at 4S, while the 1950 KV one is rated 6S and benched at 6S. The block's Max. Power (60s) / Peak Current (60s) is that winding's own 100% row, truncated rather than rounded: 902 W / 37.4 A is T5146 at 1950 KV (902.36 W / 37.43 A) and 490 W / 33 A is T5147 at 2550 KV (490.07 W / 33.04 A), so the spec-block cross-check lands on both. The prop set differs between the windings - T4943, T5143S, T5146 and T5147 at 1950 KV, T5143S, T5146, T5147 and T5150 at 2550 KV - and both gaps were checked against the tile joins rather than assumed. Three source facts recorded rather than repaired. First, the Power column is voltage x current on 87 of the 88 rows but voltage x (current + 0.70 A) across all eleven rows of the 2550 KV T5146 run, a constant holding to +/-0.01 A; every row is exactly consistent with its own printed power and efficiency, and the three lowest-throttle rows of that run are the only ones where the missing 0.70 A is a large enough share of the draw to fall outside check_thrust.py's 6% band, so they are listed in ACCEPTED_EFF with the arithmetic. Second, the 1950 KV T5147 55% row draws 8.67 A against 50%'s 8.65 A and prints 211.90 W against 211.95 W - a current and power that barely move while thrust rises 752.63 -> 803.09 g and RPM 19309 -> 21823, which is why its 3.79 g/W is the highest efficiency in the winding and sits above the 50% row's 3.55. Third, the 1950 KV T5143S run reads 25.05 V at 50% and 25.06 V at 55% before falling monotonically, and it is the only run on the sheet whose voltage starts above 25 V. Mount is left unpublished for the same reason as on the V2208, V2306 and V2207 V3: the drawing calls out "Ø16" through two opposite holes with "4-M3" beside it, a 16 mm bolt circle, not the 16x16 square the mount column holds. Propeller names are as this sheet prints them (T4943, T5143S, T5146, T5147, T5150); sibling T-Motor pages whose sheets printed the blade count instead carry the same props as "... Tri-Blade".
