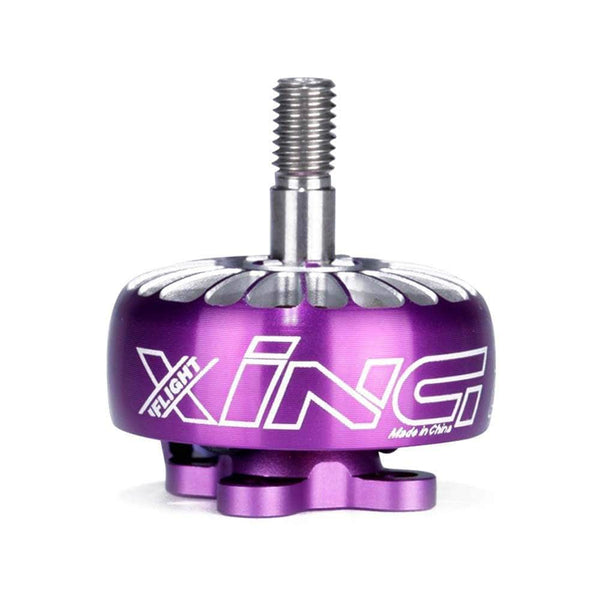

iFlight Xing 2306
| Stator | 2306 |
|---|---|
| KV options | 2450 |
| Weight | 33.4 g |
| Shaft | 5mm |
| Max cells | 2-4S |
| Configuration | 12N14P |
| Winding resistance | 47.3 mOhm |
| Price (approx.) | 20.99 USD |
At 33.4 g it is right at the class average across the 21 2306-class motors in our database (avg 32.5 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
iFlight no longer lists the original XING 2306 (the 2450KV motor this page carries): it is in neither the shop.iflight.com sitemap nor the XING category, which sells the XING2 2306 and the XING-E Pro 2306 instead. So there is no manufacturer page left to read this one against, and no bench table anywhere - iFlight publishes none for any motor (checked 2026-09-28)
