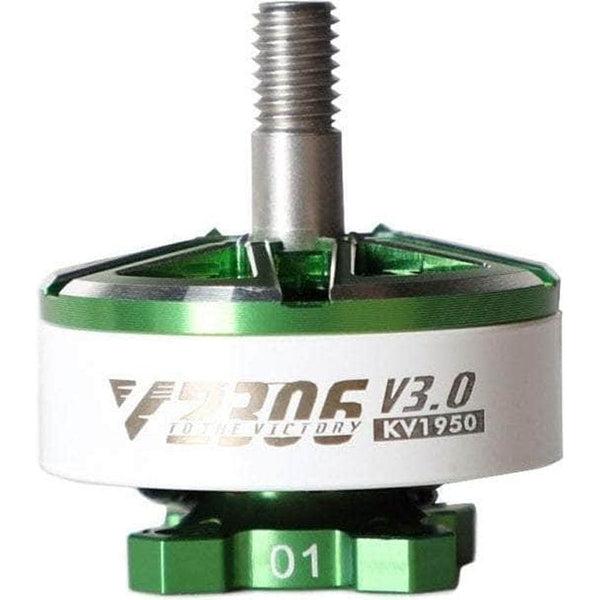

T-Motor Velox V2306 V3.0 2306

T-Motor Velox V2306 V3.0 2306
Image: racedayquads.com
Stator2306
KV options1500, 1750, 1950, 2550
Weight32.7 g
Shaft5mm
Max cells8S
Configuration12N14P
DimensionsØ27.9x30.65 mm
Mount16x16mm
Max thrust1969.9 g
Price (approx.)18.99 USD

At 32.7 g it is right at the class average across the 21 2306-class motors in our database (avg 32.5 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1500 T-Motor P49436-3 8S 20 0.8 A 8892.6 96.4 g 3.9 g/W
1500 T-Motor P49436-3 8S 40 3.9 A 17183.4 399.1 g 3.2 g/W
1500 T-Motor P49436-3 8S 60 10.4 A 24164.7 867.8 g 2.62 g/W
1500 T-Motor P49436-3 8S 80 20.9 A 29738.9 1320.9 g 1.99 g/W
1500 T-Motor P49436-3 8S 100 34.5 A 34658.0 1760.0 g 1.62 g/W
1750 T-Motor P49436-3 6S 20 1.9 A 11818.1 176.6 g 3.92 g/W
1750 T-Motor P49436-3 6S 40 6.0 A 18030.9 439.4 g 3.07 g/W
1750 T-Motor P49436-3 6S 60 10.7 A 22021.2 664.2 g 2.6 g/W
1750 T-Motor P49436-3 6S 80 17.8 A 26399.3 953.8 g 2.26 g/W
1750 T-Motor P49436-3 6S 100 30.0 A 31486.2 1353.1 g 1.91 g/W
1950 T-Motor P49436-3 6S 20 2.3 A 12593.7 194.3 g 3.49 g/W
1950 T-Motor P49436-3 6S 40 7.3 A 19012.8 483.5 g 2.76 g/W
1950 T-Motor P49436-3 6S 60 13.3 A 23336 740.1 g 2.34 g/W
1950 T-Motor P49436-3 6S 80 22.0 A 27880.2 1074.2 g 2.06 g/W
1950 T-Motor P49436-3 6S 100 36.8 A 32945.3 1466.9 g 1.7 g/W
2550 T-Motor P49436-3 4S 20 2.3 A 10520.9 121.4 g 3.35 g/W
2550 T-Motor P49436-3 4S 40 6.8 A 16221.2 332.5 g 3.07 g/W
2550 T-Motor P49436-3 4S 60 12.3 A 19987 531.8 g 2.72 g/W
2550 T-Motor P49436-3 4S 80 19.4 A 23741 758.5 g 2.48 g/W
2550 T-Motor P49436-3 4S 100 32.3 A 28139.9 1087.0 g 2.16 g/W
1750 T-Motor T5143S-3 6S 20 1.9 A 11566.8 167.1 g 3.69 g/W
1750 T-Motor T5143S-3 6S 40 6.0 A 17835.1 426.8 g 2.98 g/W
1750 T-Motor T5143S-3 6S 60 10.8 A 21876.9 659.1 g 2.55 g/W
1750 T-Motor T5143S-3 6S 80 17.9 A 26306.5 961.5 g 2.26 g/W
1750 T-Motor T5143S-3 6S 100 30.3 A 31362.7 1356.8 g 1.9 g/W
1950 T-Motor T5143S-3 6S 20 2.3 A 12356.3 191.9 g 3.41 g/W
1950 T-Motor T5143S-3 6S 40 7.4 A 18868.8 477.6 g 2.71 g/W
1950 T-Motor T5143S-3 6S 60 13.4 A 23124.7 743.7 g 2.32 g/W
1950 T-Motor T5143S-3 6S 80 22.2 A 27814.2 1070.7 g 2.03 g/W
1950 T-Motor T5143S-3 6S 100 37.1 A 32792.3 1481.3 g 1.7 g/W
2550 T-Motor T5143S-3 4S 20 2.3 A 10367.9 126.7 g 3.51 g/W
2550 T-Motor T5143S-3 4S 40 6.8 A 16014.8 330.3 g 3.04 g/W
2550 T-Motor T5143S-3 4S 60 12.5 A 19778.6 521.8 g 2.64 g/W
2550 T-Motor T5143S-3 4S 80 19.8 A 23611.5 762.9 g 2.45 g/W
2550 T-Motor T5143S-3 4S 100 32.8 A 27994 1091.2 g 2.15 g/W
1750 T-Motor T5147-3 6S 20 1.9 A 10732.8 186.2 g 4.0 g/W
1750 T-Motor T5147-3 6S 40 6.2 A 16597 471.7 g 3.2 g/W
1750 T-Motor T5147-3 6S 60 11.9 A 20537.6 746.5 g 2.62 g/W
1750 T-Motor T5147-3 6S 80 20.9 A 25207.7 1145.2 g 2.31 g/W
1750 T-Motor T5147-3 6S 100 34.9 A 29715.1 1577.9 g 1.92 g/W
1950 T-Motor T5147-3 6S 20 2.4 A 11491.1 208.8 g 3.66 g/W
1950 T-Motor T5147-3 6S 40 7.8 A 17710.9 542.1 g 2.91 g/W
1950 T-Motor T5147-3 6S 60 14.9 A 21783.8 845.3 g 2.39 g/W
1950 T-Motor T5147-3 6S 80 25.6 A 26358.4 1268.2 g 2.1 g/W
1950 T-Motor T5147-3 6S 100 41.7 A 30816.2 1688.7 g 1.73 g/W
2550 T-Motor T5147-3 4S 20 2.3 A 10315.5 137.8 g 3.81 g/W
2550 T-Motor T5147-3 4S 40 6.9 A 15688 367.3 g 3.34 g/W
2550 T-Motor T5147-3 4S 60 12.8 A 19505.9 576.7 g 2.85 g/W
2550 T-Motor T5147-3 4S 80 20.6 A 23309.5 849.4 g 2.62 g/W
2550 T-Motor T5147-3 4S 100 34.5 A 27522.3 1221.6 g 2.29 g/W
1500 T-Motor F5146-3 8S 20 0.8 A 8851.831 104.1 g 4.31 g/W
1500 T-Motor F5146-3 8S 40 3.9 A 17136.514 440.3 g 3.51 g/W
1500 T-Motor F5146-3 8S 60 10.3 A 24159.533 929.9 g 2.83 g/W
1500 T-Motor F5146-3 8S 80 20.9 A 29738.463 1443.4 g 2.18 g/W
1500 T-Motor F5146-3 8S 100 34.5 A 34509.941 1969.9 g 1.81 g/W
1500 T-Motor T6143-3 6S 10 0.2 A 3275.9 17.7 g 4.83 g/W
1500 T-Motor T6143-3 6S 20 0.6 A 6315.3 71.3 g 4.74 g/W
1500 T-Motor T6143-3 6S 30 1.7 A 9219.8 156.0 g 3.91 g/W
1500 T-Motor T6143-3 6S 40 3.4 A 11992.8 280.6 g 3.41 g/W
1500 T-Motor T6143-3 6S 50 6.1 A 14586.2 432.5 g 2.97 g/W
1500 T-Motor T6143-3 6S 60 9.6 A 16902.8 595.4 g 2.61 g/W
1500 T-Motor T6143-3 6S 70 13.9 A 18978.0 768.0 g 2.31 g/W
1500 T-Motor T6143-3 6S 80 19.2 A 20865.8 943.9 g 2.07 g/W
1500 T-Motor T6143-3 6S 90 25.2 A 22509.1 1107.7 g 1.86 g/W
1500 T-Motor T6143-3 6S 100 31.6 A 23824.8 1251.0 g 1.68 g/W
1500 T-Motor C7.5X4.6X3 4S 10 0.1 A 1850.8 23.1 g 11.39 g/W
1500 T-Motor C7.5X4.6X3 4S 20 0.7 A 3807.5 95.5 g 8.58 g/W
1500 T-Motor C7.5X4.6X3 4S 30 2.0 A 5522.9 206.9 g 6.51 g/W
1500 T-Motor C7.5X4.6X3 4S 40 4.1 A 7029.0 344.3 g 5.21 g/W
1500 T-Motor C7.5X4.6X3 4S 50 7.2 A 8329.6 497.8 g 4.36 g/W
1500 T-Motor C7.5X4.6X3 4S 60 10.9 A 9489.0 653.0 g 3.77 g/W
1500 T-Motor C7.5X4.6X3 4S 70 15.4 A 10490.8 803.7 g 3.3 g/W
1500 T-Motor C7.5X4.6X3 4S 80 20.5 A 11286.2 939.1 g 2.92 g/W
1500 T-Motor C7.5X4.6X3 4S 90 25.9 A 11956.2 1051.3 g 2.6 g/W
1500 T-Motor C7.5X4.6X3 4S 100 31.8 A 12503.3 1150.5 g 2.33 g/W
1500 T-Motor GF7042-2 6S 10 0.2 A 2888.9 29.8 g 7.51 g/W
1500 T-Motor GF7042-2 6S 20 0.9 A 5832.3 120.4 g 5.71 g/W
1500 T-Motor GF7042-2 6S 30 2.4 A 8561.5 275.9 g 4.7 g/W
1500 T-Motor GF7042-2 6S 40 5.1 A 10983.1 474.2 g 3.86 g/W
1500 T-Motor GF7042-2 6S 50 9.1 A 13078.2 685.3 g 3.15 g/W
1500 T-Motor GF7042-2 6S 60 14.1 A 14893.9 889.1 g 2.65 g/W
1500 T-Motor GF7042-2 6S 70 19.7 A 16306.4 1074.5 g 2.3 g/W
1500 T-Motor GF7042-2 6S 80 26.0 A 17463.1 1233.8 g 2.01 g/W
1500 T-Motor GF7042-2 6S 90 32.6 A 18229.3 1353.1 g 1.76 g/W
1500 T-Motor GF7042-2 6S 100 39.2 A 18701.5 1435.1 g 1.56 g/W

Manufacturer bench figures (T-Motor bench, seven props across four KV: 1500 KV at 32 V on P49436-3 and F5146-3, at 24 V on T6143-3 and GF7042-2 and at 16 V on C7.5X4.6X3, 1750/1950 KV at 24 V and 2550 KV at 16 V; 5 throttle points (20-100%) on the 5in props, 10 (10-100%) on the larger ones); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Bench rows, configuration and dimensions are from T-Motor's own "V2306 V3 Test Report" and "V2306 V3 Specifications" images on tmotorhobby.com/goods-1370.html; identity with our retail listing is the 2306 stator, the same four KV (1500/1750/1950/2550), a 5 mm output shaft, 32.7 g and 8S. Both of those last two are the 1500 KV winding's figures: the block gives 33.8 g / 6S at 1750 KV, 33.7 g / 6S at 1950 KV and 32.6 g / 4S at 2550 KV, so the published "Max cells 8S" is right for one winding of four and the bench runs the other three at 24 V and 16 V. The block's Max. Power (60s) / Peak Current (60s) is that winding's own 100% row on T-Motor T5147-3 at 1750 KV (820.7 W / 34.9 A), 1950 KV (976.0 W / 41.7 A) and 2550 KV (533.7 W / 34.5 A); at 1500 KV the Max. Power cell prints 1969.9, which is the F5146-3 100% row's thrust in grams rather than its 1088.2 W power, while the 34.5 A beside it is that row's current. Three of the 85 rows - the 10% points on T6143-3, C7.5X4.6X3 and GF7042-2 - print a current of 0.1-0.2 A, a resolution at which voltage x current cannot reproduce the sheet's own power column (3.7, 2.0 and 4.0 W); each is consistent with that printed power, and the other 82 rows pass both identities. Mount is left unpublished: the drawing calls out 4-M3 with a plain 16 between the top and bottom holes and a plain 16 between the left and right holes, and the four holes sit at 90 degrees on that circle, so the figure is a 16 mm bolt circle (11.3 mm between consecutive holes), not the 16x16 square the mount column holds.
