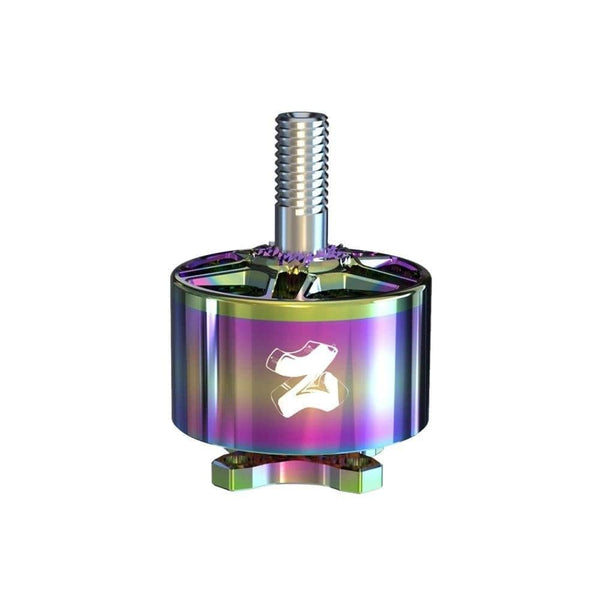

VCI HOBBY ZOE 2010
| Stator | 2010 |
|---|---|
| KV options | 1911 |
| Weight | 36.5 g |
| Shaft | 5mm |
| Max cells | 6S |
| Configuration | 12S14P |
| Winding resistance | 55 mOhm |
| Max thrust | 1880 g |
| Price (approx.) | 20.49 USD |
Thrust data (VCI HOBBY bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 1911 | GF 51377-3 | 6S | 30 | 2.02 A | 12324 | 170 g | 3.51 g/W |
| 1911 | GF 51377-3 | 6S | 40 | 4.33 A | 16363 | 313 g | 3.01 g/W |
| 1911 | GF 51377-3 | 6S | 50 | 7.71 A | 20019 | 575 g | 3.11 g/W |
| 1911 | GF 51377-3 | 6S | 60 | 12.2 A | 22600 | 785 g | 2.68 g/W |
| 1911 | GF 51377-3 | 6S | 70 | 17.62 A | 26238 | 1015 g | 2.4 g/W |
| 1911 | GF 51377-3 | 6S | 80 | 24.4 A | 29132 | 1382 g | 2.36 g/W |
| 1911 | GF 51377-3 | 6S | 90 | 32.54 A | 31911 | 1638 g | 2.1 g/W |
| 1911 | GF 51377-3 | 6S | 100 | 40.36 A | 33528 | 1880 g | 1.94 g/W |
Manufacturer bench figures (VCI Hobby bench, 1911 KV at 6S (24 V), 8 throttle points (30-100%) on a GF 51377-3); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
The rows are VCI Hobby's own 'Testing Data' table, published as an image in the Specifications tab of the motor's product page on vcihobby.com. One winding, one prop, eight throttle points, and the Specifications panel's peak current and maximum power - 40.36 A and 968.64 W - are the 100% row to the digit. Every row reproduces the sheet's two identities (printed Power = 24 V x printed current, printed Efficiency = Thrust / Power). Identity with our retail listing is 1911 KV, the 2010 stator (the panel prints Ø20*L10 mm), 6S and 36.5 g including cable; the panel's shaft is written M5, which this column holds as 5mm. ONE PANEL FIGURE IS NOT CARRIED: the Dimensions cell prints Ø45.6*L49.2 mm, which no 36.5 g motor on a 20x10 mm stator can be, so dimensions_mm stays empty rather than publish a body wider than the prop hub it drives.
