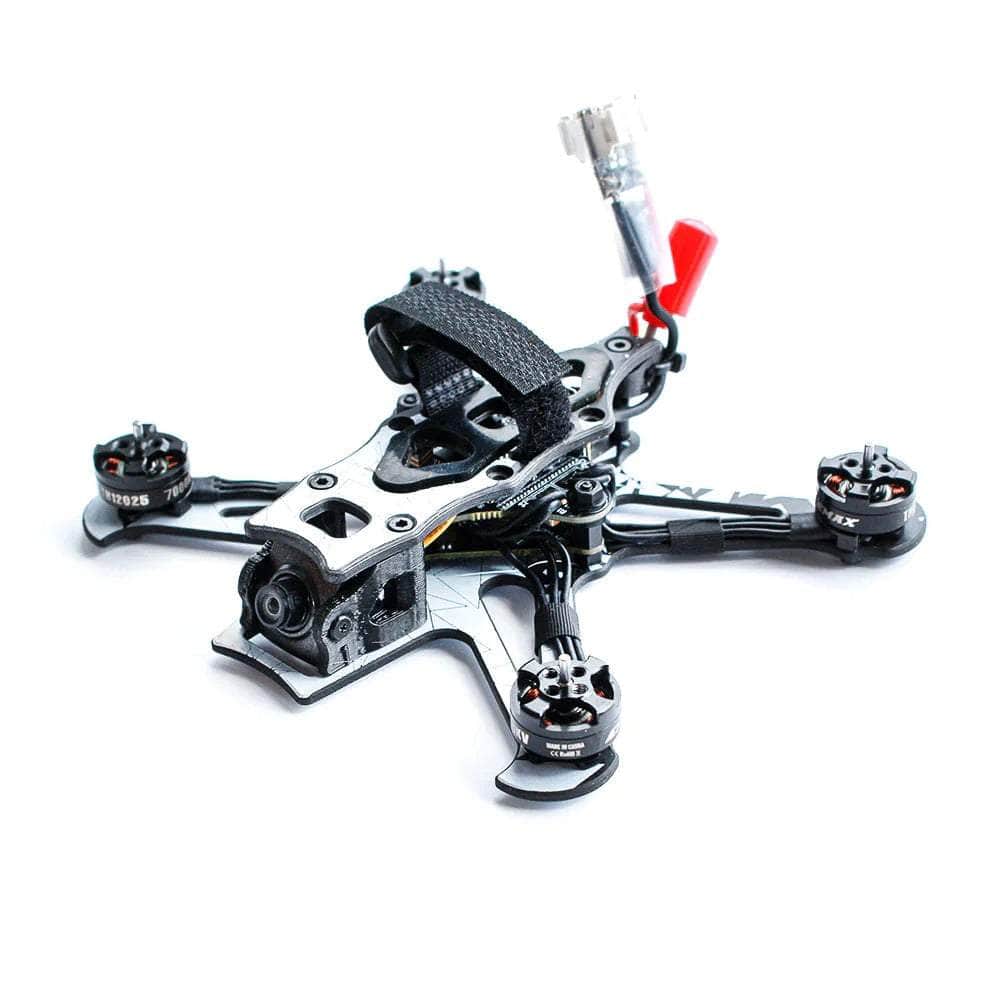

EMAX Tinyhawk III Plus
At 32.5 g dry the Tinyhawk III Plus is 46-49.5 g ready to fly on the 6 matching 1S packs listed below (550-720 mAh): the pack is 29-34% of all-up weight.
| Class | whoop (1-2S) |
|---|---|
| Wheelbase | 76 mm |
| Weight (no battery) | 32.5 g |
| Prop size | 1.6 " |
| Motors | EMAX TH0802 II 15000KV |
| VTX system | analog |
| Camera | Runcam Nano |
| Flight controller | STM32F411, 6A BLHeli_S |
| Receiver options | Integrated ELRS 2.4G |
What battery does the Tinyhawk III Plus use?
| Cells | 1S (2S supported) |
|---|---|
| Capacity | 650 mAh |
| Connector | PH2.0 |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 32.5 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Happymodel 650mAh 1S | 650 | 60C | 16.0 g | 48.5 g | $2.83 |
| RDQ RDQ Series 650mAh 1S | 650 | 60C | 14.5 g | 47 g | $3.44 |
| GNB Gaoneng / w 660mAh 1S | 660 | 90C | 15.0 g | 47.5 g | $2.79 |
| RDQ RDQ Series 660mAh 1S | 660 | 90C | 15.5 g | 48 g | $3.58 |
| RDQ RDQ Series 720mAh 1S | 720 | 100C | 17.0 g | 49.5 g | $3.47 |
| GNB Gaoneng / w 550mAh 1S | 550 | 100C | 13.5 g | 46 g | $2.63 |
Tinyhawk III Plus flight time
The Tinyhawk III Plus flies ≈ 5.3-6.9 min on the 4 pack capacities listed above at our 5 A cruise-current estimate, with 80% of a pack used: 550 mAh ≈ 5.3 min, 650 mAh ≈ 6.2 min, 660 mAh ≈ 6.3 min, 720 mAh ≈ 6.9 min.
Where this data comes from
Wheelbase 76mm, RunCam Nano camera, integrated ELRS. Re-cited 2026-09-13: the previous source URL (slug ...-whoop-...) now serves the Tinyhawk III Plus Freestyle, a different quad, which we carry separately. Specs here match the live whoop listing: 76 mm, 32.5 g, TH0802 II 15000KV.
