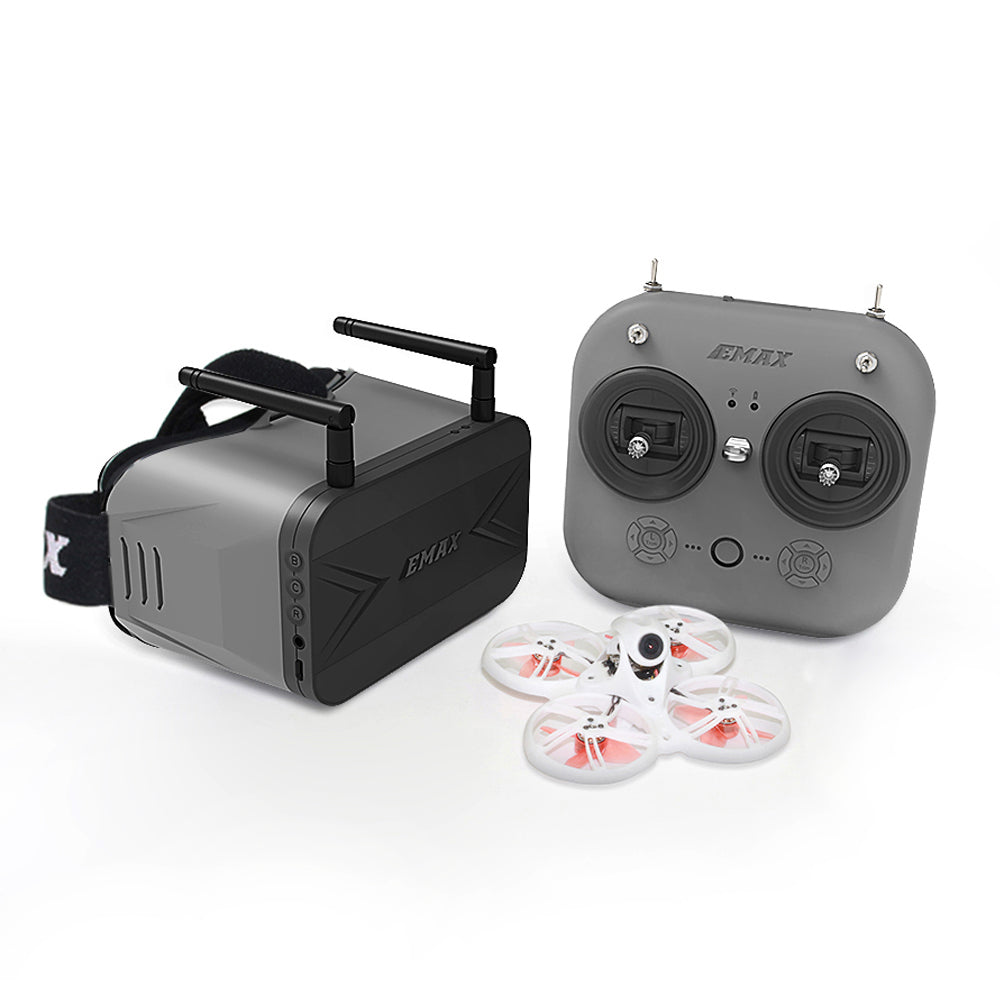

EMAX Tinyhawk III
At 31 g dry the Tinyhawk III is 41-44.79 g ready to fly on the 6 matching 1S packs listed below (450 mAh): the pack is 24-31% of all-up weight.
| Class | whoop (beginner RTF) |
|---|---|
| Wheelbase | 76 mm |
| Weight (no battery) | 31 g |
| Prop size | 1.6 " |
| Motors | EMAX TH0802 II 15000KV |
| VTX system | analog |
| Camera | RunCam Nano 4 |
| Flight controller | F4 STM32 (MATEKF411RX), 1-2S, 5A 4-in-1 BLHeli_S |
| Receiver options | SPI / FrSky D8/D16 |
What battery does the Tinyhawk III use?
| Cells | 1S |
|---|---|
| Capacity | 450 mAh |
| Connector | PH2.0 |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 31 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 450mAh 1S | 450 | 80C | 12.0 g | 43 g | $0.6 |
| GNB RDQ Series 450mAh 1S | 450 | 80C | 10.0 g | 41 g | $1.05 |
| GNB Gaoneng Cabled 450mAh 1S | 450 | 80C | 12.0 g | 43 g | $3.0 |
| GNB Gaoneng / w 450mAh 1S | 450 | 80C | 13.3 g | 44.3 g | $3.5 |
| RDQ RDQ Series 450mAh 1S | 450 | 80C | 10.0 g | 41 g | $3.5 |
| XILO Essential JST 450mAh 1S | 450 | 100C | 13.79 g | 44.79 g | $5.7 |
Tinyhawk III flight time
The Tinyhawk III flies ≈ 5.4 min on the 450 mAh pack listed above at our 4 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
76mm wheelbase. Plus version has bigger 650mAh pack and ELRS.
