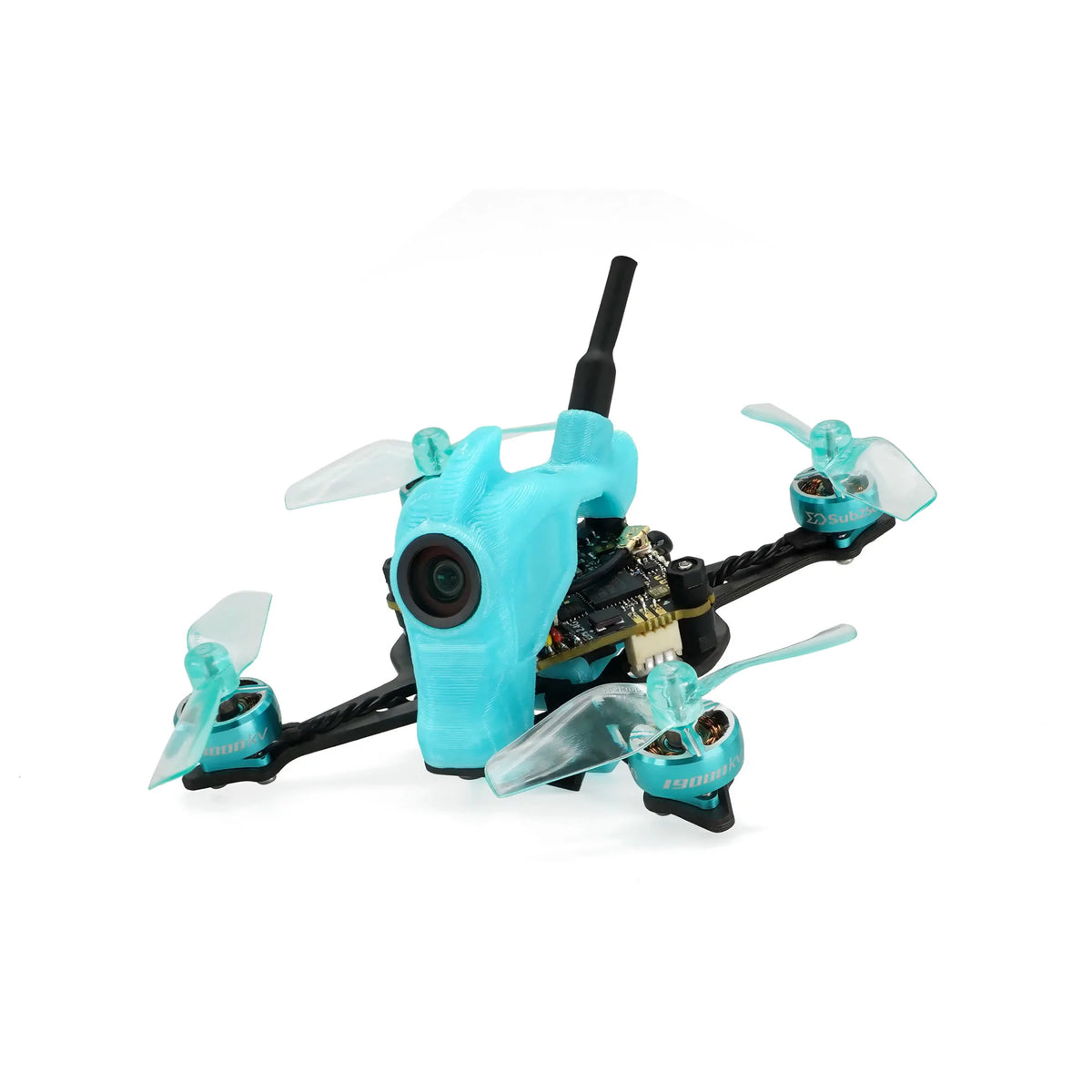

Sub250 Nanofly16
At 28 g dry the Nanofly16 is 35.5-41.79 g ready to fly on the 5 matching 1S packs listed below (270-450 mAh): the pack is 21-33% of all-up weight. Sub250 publishes 38 g all-up with its own pack.
| Class | ultralight toothpick |
|---|---|
| Wheelbase | 77 mm |
| Weight (no battery) | 28 g |
| Typical AUW | 38 g |
| Prop size | 1.6 " |
| Motors | Sub250 M1 0803 19000KV |
| VTX system | analog (Caddx Ant) |
| Camera | Ant |
| Flight controller | F411-1S AIO/250mW/ELRS |
| Receiver options | ELRS 2.4G \ TBS 915 Mhz |
| Manufacturer flight time | 4.5 min |
What battery does the Nanofly16 use?
| Cells | 1S |
|---|---|
| Capacity | 380 mAh |
| Connector | GNB27 |
| Chemistry | LiHV (90C) |
Matching packs from our database
All-up weight is this quad's 28 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Flywoo Explorer 450mAh 1S | 450 | 80C | 13.2 g | 41.2 g | $3.95 |
| XILO Essential JST 450mAh 1S | 450 | 100C | 13.79 g | 41.79 g | $5.7 |
| NewBeeDrone Nitro Nectar HV NX69 300mAh 1S | 300 | 80C | 8.4 g | 36.4 g | $3.51 |
| EMAX EM2.0 300mAh 1S | 300 | 75C | 8.7 g | 36.7 g | $5.85 |
| EMAX EM2.0 270mAh 1S | 270 | 75C | 7.5 g | 35.5 g | $6.5 |
Nanofly16 flight time
The Nanofly16 flies ≈ 3.2-5.4 min on the 3 pack capacities listed above at our 4 A cruise-current estimate, with 80% of a pack used: 270 mAh ≈ 3.2 min, 300 mAh ≈ 3.6 min, 450 mAh ≈ 5.4 min. Sub250 publishes 4.5 min.
Where this data comes from
77mm wheelbase, 40mm props.
