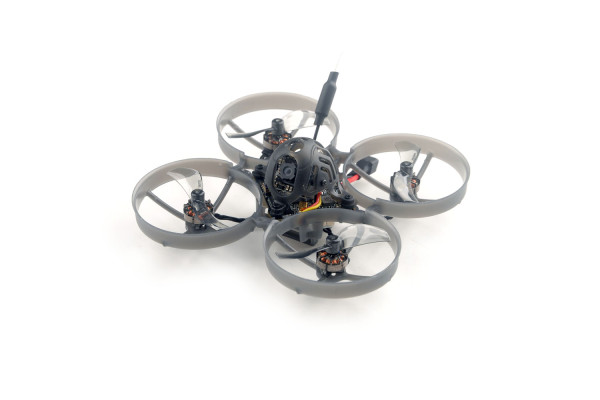

Happymodel Mobula7 1S
At 24 g dry the Mobula7 1S is 36-38.3 g ready to fly on the 6 matching 1S packs listed below (450-550 mAh): the pack is 33-37% of all-up weight.
| Class | tiny whoop |
|---|---|
| Wheelbase | 75 mm |
| Weight (no battery) | 24 g |
| Prop size | 1.6 " |
| Prop mount | 1.0mm shaft |
| Motors | Happymodel SE0802 20000KV |
| VTX system | analog (HDZero variant available) |
| Receiver options | SPI ELRS + ceramic SMD antenna |
What battery does the Mobula7 1S use?
| Cells | 1S |
|---|---|
| Capacity | 450 mAh |
| Recommended range | 450-650 mAh |
| Connector | A30 (GNB27/BT2.0 compatible) |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 24 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Flywoo Explorer V2 450mAh 1S | 450 | 80C | 13.2 g | 37.2 g | $4.75 |
| XILO Essential JST 450mAh 1S | 450 | 100C | 13.79 g | 37.79 g | $5.7 |
| GNB Gaoneng 530mAh 1S | 530 | 90C | 12.0 g | 36 g | $3.47 |
| NewBeeDrone Nitro Nectar HV NX69 550mAh 1S | 550 | 80C | 14.3 g | 38.3 g | $2.75 |
| GNB Gaoneng 550mAh 1S | 550 | 100C | 13.5 g | 37.5 g | $3.58 |
| GNB Gaoneng Cabled 550mAh 1S | 550 | 100C | 13.5 g | 37.5 g | $3.58 |
Mobula7 1S flight time
The Mobula7 1S flies ≈ 5.4-6.6 min on the 3 pack capacities listed above at our 4 A cruise-current estimate, with 80% of a pack used: 450 mAh ≈ 5.4 min, 530 mAh ≈ 6.4 min, 550 mAh ≈ 6.6 min.
Where this data comes from
Analog edition 24g (HD: 33g). 40mm props, 75mm wheelbase.
