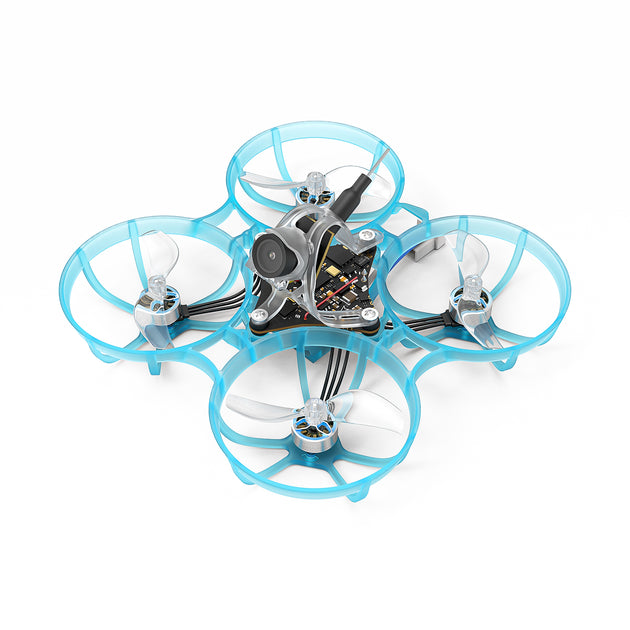

BetaFPV Air75
At 21 g dry the Air75 is 29-35.3 g ready to fly on the 6 matching 1S packs listed below (350-550 mAh): the pack is 28-41% of all-up weight.
| Class | tiny whoop |
|---|---|
| Wheelbase | 75 mm |
| Weight (no battery) | 21 g |
| Prop size | 1.6 " |
| Prop mount | 1.0mm shaft |
| Motors | BetaFPV 0802SE 23000KV |
| VTX system | analog 25-400mW |
| Camera | C03 Camera |
| Flight controller | Air Brushless Flight Controller (5IN1 Version) |
| Receiver options | Onboard Serial ELRS 2.4G |
| Manufacturer flight time | 6.5 (1S 450) min |
What battery does the Air75 use?
| Cells | 1S |
|---|---|
| Capacity | 450 mAh |
| Connector | BT2.0 |
| Chemistry | LiHV (LAVA 75C) |
Matching packs from our database
All-up weight is this quad's 21 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| BetaFPV 450mAh 1S | 450 | 30C | 12.7 g | 33.7 g | $5.19 |
| XILO Essential JST 450mAh 1S | 450 | 100C | 13.79 g | 34.79 g | $5.7 |
| BetaFPV LAVA II Pack 480mAh 1S | 480 | 95C | 12.6 g | 33.6 g | $3.7 |
| NewBeeDrone Nitro Nectar HV NX69 550mAh 1S | 550 | 80C | 14.3 g | 35.3 g | $2.75 |
| CNHL SpeedyPizza 350mAh 1S | 350 | 75C | 8.0 g | 29 g | $3.61 |
| BetaFPV 550mAh 1S | 550 | 40C | 13.99 g | 34.99 g | $3.89 |
Air75 flight time
The Air75 flies ≈ 5.6-8.8 min on the 4 pack capacities listed above at our 3 A cruise-current estimate, with 80% of a pack used: 350 mAh ≈ 5.6 min, 450 mAh ≈ 7.2 min, 480 mAh ≈ 7.7 min, 550 mAh ≈ 8.8 min. BetaFPV publishes 6.5 min on 450 mAh.
Where this data comes from
Lightest 75mm class. Gemfan 40mm 2-blade props.
