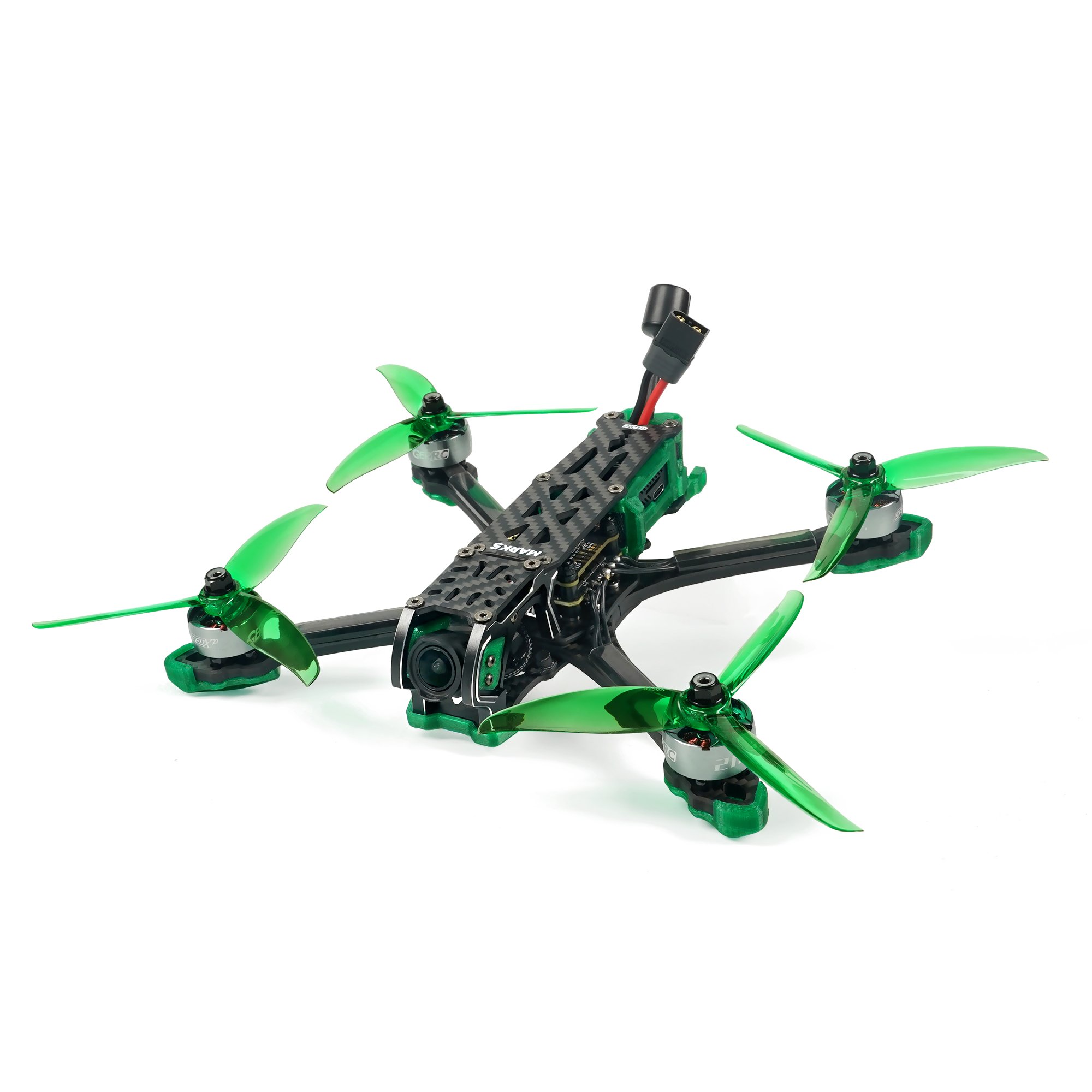

GEPRC Mark5
At 404.9 g dry the Mark5 is 593.9-647.9 g ready to fly on the 6 matching 6S packs listed below (1300 mAh): the pack is 32-38% of all-up weight.
| Class | freestyle |
|---|---|
| Wheelbase | 225 mm |
| Weight (no battery) | 404.9 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | GEPRC SPEEDX2 2107.5 1960KV (6S) |
| VTX system | DJI O3 |
| Camera | DJI O3 |
| Flight controller | GEP-F722-BT-HD V3 FC |
| Receiver options | PNP, TBS Nano RX, ELRS 2.4G |
What battery does the Mark5 use?
| Cells | 6S |
|---|---|
| Capacity | 1300 mAh |
| Recommended range | 1050-1550 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 404.9 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| CNHL Black Series V2.0 1300mAh 6S | 1300 | 130C | 223.0 g | 627.9 g | $1.26 |
| GNB RDQ Series 1300mAh 6S | 1300 | 100C | 243.0 g | 647.9 g | $1.26 |
| Tattu FunFly 1300mAh 6S | 1300 | 100C | 225.0 g | 629.9 g | $1.37 |
| GNB Gaoneng 1300mAh 6S | 1300 | 120C | 189.0 g | 593.9 g | $1.55 |
| Dogcom 1300mAh 6S | 1300 | 150C | 216.0 g | 620.9 g | $1.59 |
| RDQ RDQ Series 1300mAh 6S | 1300 | 120C | 193.0 g | 597.9 g | $1.72 |
Mark5 flight time
The Mark5 flies ≈ 4.8 min on the 1300 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
HD O3 version. Props Gemfan 5136. Wheelbase 225mm.
