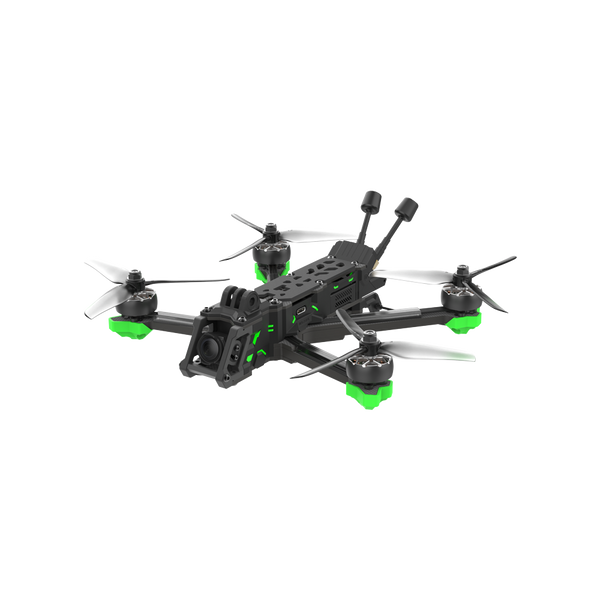

iFlight Nazgul Evoque F5 V2
At 419 g dry the Nazgul Evoque F5 V2 is 631-688 g ready to fly on the 6 matching 6S packs listed below (1400 mAh): the pack is 34-39% of all-up weight. iFlight publishes 644 g all-up with its own pack.
| Class | freestyle |
|---|---|
| Wheelbase | 225 mm |
| Weight (no battery) | 419 g |
| Typical AUW | 644 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | iFlight XING-E Pro 2207 1800KV |
| VTX system | DJI O3 (O4 variant available) |
| Flight controller | BLITZ Mini F722 Flight Controller |
Full motor specs: iFlight Xing-E PRO 2207
What battery does the Nazgul Evoque F5 V2 use?
| Cells | 6S |
|---|---|
| Capacity | 1400 mAh |
| Recommended range | 1300-1500 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 419 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 1400mAh 6S | 1400 | 160C | 269.0 g | 688 g | $1.45 |
| Tattu R-Line Version 3.0 1400mAh 6S | 1400 | 120C | 233.0 g | 652 g | $1.79 |
| Tattu R-Line Version 5.0 1400mAh 6S | 1400 | 150C | 222.0 g | 641 g | $1.79 |
| Tattu R-Line Version 4.0 1400mAh 6S | 1400 | 130C | 222.0 g | 641 g | $1.83 |
| CNHL Ultra Black Series 1400mAh 6S | 1400 | 150C | 239.0 g | 658 g | $1.96 |
| Lumenier N2O Feather-Lite XT-60 1400mAh 6S | 1400 | 150C | 212.0 g | 631 g | $2.61 |
Nazgul Evoque F5 V2 flight time
The Nazgul Evoque F5 V2 flies ≈ 5.2 min on the 1400 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
6S HD version. Squashed-X 225mm / DeadCat 223mm frame geometry.
