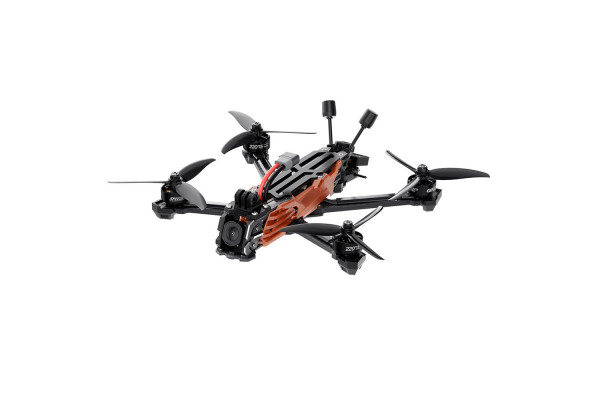

GEPRC Vapor D5
At 428 g dry the Vapor D5 is 640-697 g ready to fly on the 6 matching 6S packs listed below (1400 mAh): the pack is 33-39% of all-up weight.
| Class | freestyle (deadcat) |
|---|---|
| Wheelbase | 238 mm |
| Weight (no battery) | 428 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | GEPRC SPEEDX2 2207E 1960KV |
| VTX system | DJI O4 Pro |
| Receiver options | GEPRC ELRS Nano 2.4GHz |
Full motor specs: GEPRC SPEEDX2 2207E
What battery does the Vapor D5 use?
| Cells | 6S |
|---|---|
| Capacity | 1400 mAh |
| Recommended range | 1300-1800 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 428 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 1400mAh 6S | 1400 | 160C | 269.0 g | 697 g | $1.45 |
| Tattu R-Line Version 3.0 1400mAh 6S | 1400 | 120C | 233.0 g | 661 g | $1.79 |
| Tattu R-Line Version 5.0 1400mAh 6S | 1400 | 150C | 222.0 g | 650 g | $1.79 |
| Tattu R-Line Version 4.0 1400mAh 6S | 1400 | 130C | 222.0 g | 650 g | $1.83 |
| CNHL Ultra Black Series 1400mAh 6S | 1400 | 150C | 239.0 g | 667 g | $1.96 |
| Lumenier N2O Feather-Lite XT-60 1400mAh 6S | 1400 | 150C | 212.0 g | 640 g | $2.61 |
Vapor D5 flight time
The Vapor D5 flies ≈ 5.2 min on the 1400 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
O4 Pro version, 238mm deadcat frame, Gemfan 5136 props.
