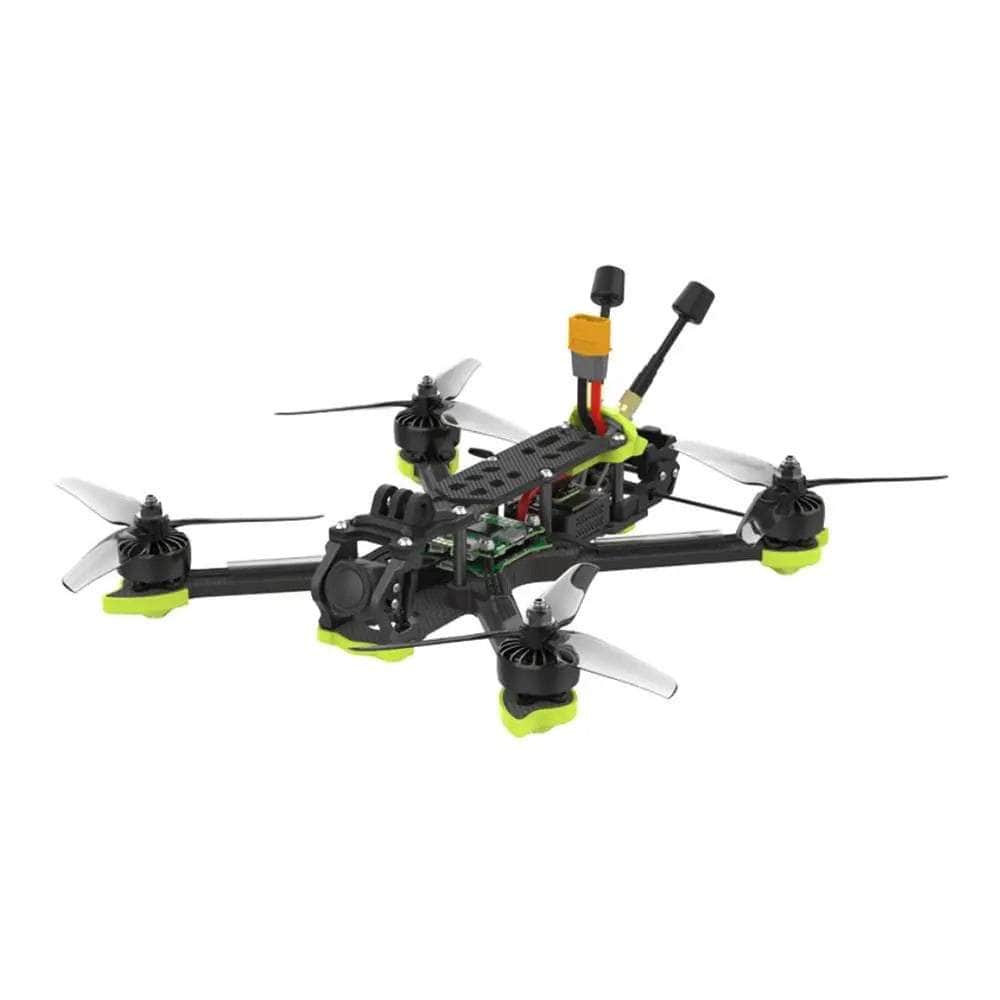

iFlight Nazgul5 V3
At 435 g dry the Nazgul5 V3 is 647-704 g ready to fly on the 6 matching 6S packs listed below (1400 mAh): the pack is 33-38% of all-up weight. iFlight publishes 660 g all-up with its own pack.
| Class | freestyle |
|---|---|
| Wheelbase | 245 mm |
| Weight (no battery) | 435 g |
| Typical AUW | 660 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | iFlight XING-E Pro 2207 1800KV |
| VTX system | DJI O3 |
| Flight controller | BLITZ F722 |
| Receiver options | DJI BNF, ELRS, or TBS Crossfire |
Full motor specs: iFlight Xing-E PRO 2207
What battery does the Nazgul5 V3 use?
| Cells | 6S |
|---|---|
| Capacity | 1400 mAh |
| Recommended range | 1300-1500 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 435 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 1400mAh 6S | 1400 | 160C | 269.0 g | 704 g | $1.45 |
| Tattu R-Line Version 3.0 1400mAh 6S | 1400 | 120C | 233.0 g | 668 g | $1.79 |
| Tattu R-Line Version 5.0 1400mAh 6S | 1400 | 150C | 222.0 g | 657 g | $1.79 |
| Tattu R-Line Version 4.0 1400mAh 6S | 1400 | 130C | 222.0 g | 657 g | $1.83 |
| CNHL Ultra Black Series 1400mAh 6S | 1400 | 150C | 239.0 g | 674 g | $1.96 |
| Lumenier N2O Feather-Lite XT-60 1400mAh 6S | 1400 | 150C | 212.0 g | 647 g | $2.61 |
Nazgul5 V3 flight time
The Nazgul5 V3 flies ≈ 5.2 min on the 1400 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
HD O3 version. Wheelbase 245mm, Nazgul 5140 props. flight_controller, receiver_options read 2026-10-17 off the cited GetFPV listing's spec block. The cited GetFPV listing does not print the 435 g dry or 660 g all-up weights shown here; it gives "Takeoff Weight: Approx. 620 g" with no pack named, and a 255 mm wheelbase against the 245 mm here. Both pages' figures are kept until an iFlight source turns up (iFlight no longer lists the Nazgul5 V3)
