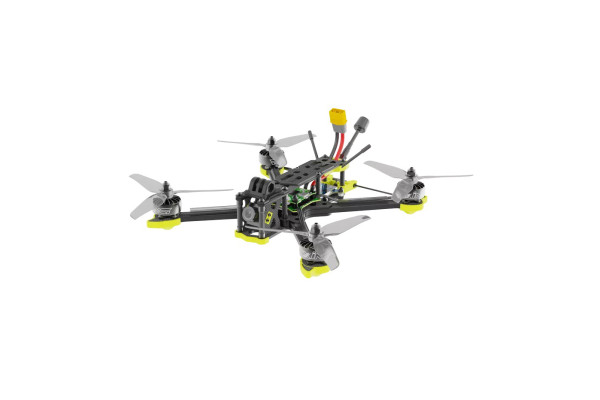

iFlight Nazgul5 V2
At 393.4 g dry the Nazgul5 V2 is 605.4-662.4 g ready to fly on the 6 matching 6S packs listed below (1400 mAh): the pack is 35-41% of all-up weight. iFlight publishes 620 g all-up with its own pack.
| Class | freestyle |
|---|---|
| Wheelbase | 235 mm |
| Weight (no battery) | 393.4 g |
| Typical AUW | 620 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | iFlight XING-E 2207 1800KV |
| VTX system | analog (HD variants) |
What battery does the Nazgul5 V2 use?
| Cells | 6S |
|---|---|
| Capacity | 1400 mAh |
| Recommended range | 1300-1500 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 393.4 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| GNB Gaoneng 1400mAh 6S | 1400 | 160C | 269.0 g | 662.4 g | $1.45 |
| Tattu R-Line Version 3.0 1400mAh 6S | 1400 | 120C | 233.0 g | 626.4 g | $1.79 |
| Tattu R-Line Version 5.0 1400mAh 6S | 1400 | 150C | 222.0 g | 615.4 g | $1.79 |
| Tattu R-Line Version 4.0 1400mAh 6S | 1400 | 130C | 222.0 g | 615.4 g | $1.83 |
| CNHL Ultra Black Series 1400mAh 6S | 1400 | 150C | 239.0 g | 632.4 g | $1.96 |
| Lumenier N2O Feather-Lite XT-60 1400mAh 6S | 1400 | 150C | 212.0 g | 605.4 g | $2.61 |
Nazgul5 V2 flight time
The Nazgul5 V2 flies ≈ 5.2 min on the 1400 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
Legacy bestseller, superseded by V3 but still widely flown. 235mm wheelbase. Source archived 2023-09-26: the manufacturer page for this revision was taken down when the model was superseded, so the citation points at the Internet Archive copy of https://shop.iflight.com/Nazgul5-Analog-V2-6S-BNF-Pro1820. The specs were verified against that page when written.
