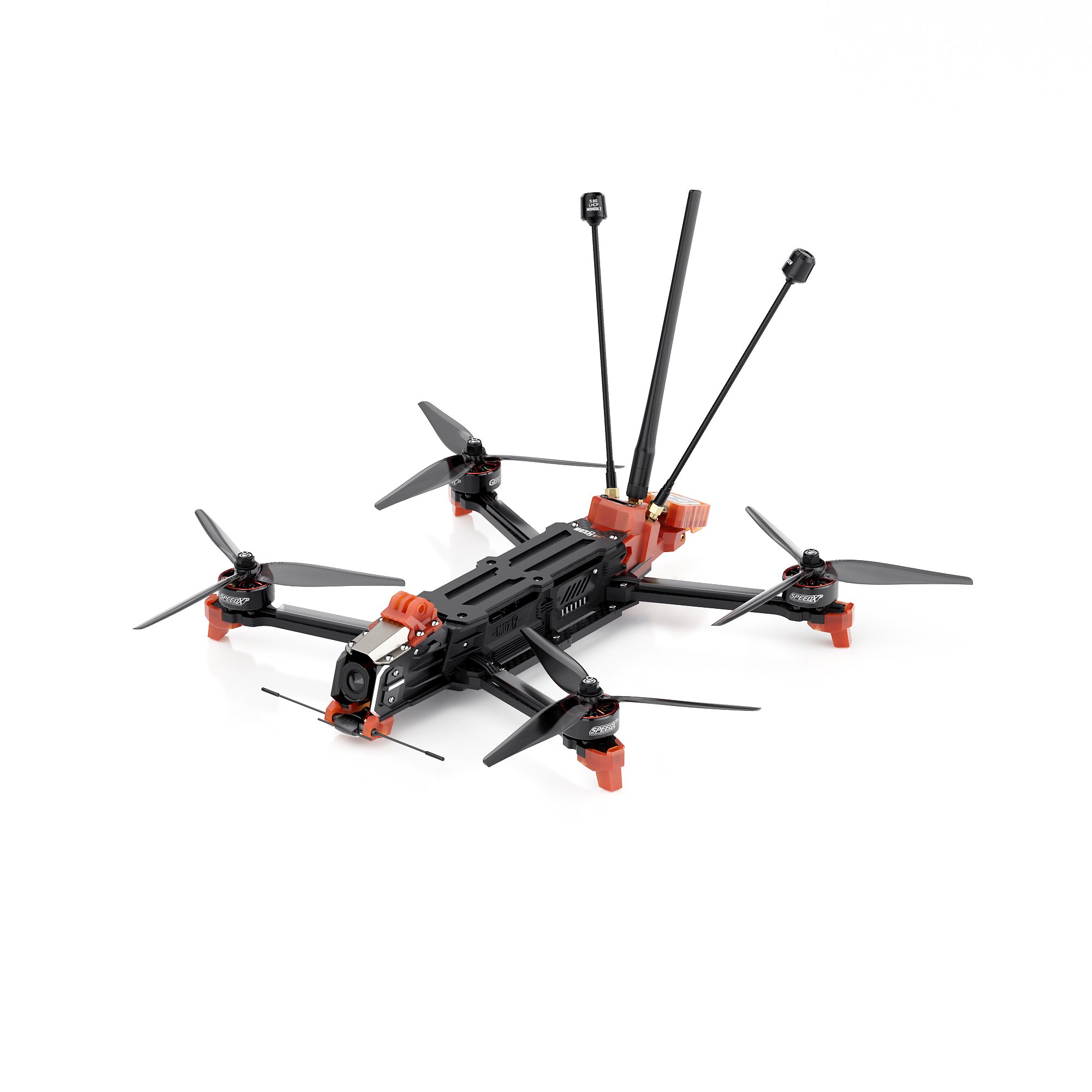

GEPRC MOZ7 V2
At 750 g dry the MOZ7 V2 is 1047-1550 g ready to fly on the 6 matching 6S packs listed below (3000-6000 mAh): the pack is 28-52% of all-up weight.
| Class | long range |
|---|---|
| Wheelbase | 336 mm |
| Weight (no battery) | 750 g |
| Prop size | 7 " |
| VTX system | DJI O4 Pro (O3/Wasp variants) |
| Flight controller | TAKER H743 BT |
| Receiver options | PNP / ELRS 915M/2.4G GemX / TBSNanoRX |
| Manufacturer flight time | ~25-30 (Li-ion 6S) min |
What battery does the MOZ7 V2 use?
| Cells | 6S |
|---|---|
| Capacity | 8000 mAh |
| Recommended range | 3300-4000 LiPo or 6S2P Li-ion 6000-8000 mAh |
| Connector | XT60 |
| Chemistry | LiPo / Li-ion |
Matching packs from our database
All-up weight is this quad's 750 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Lumenier NAV 18650 6000mAh 6S | 6000 | 10C | 635.0 g | 1385 g | $1.46 |
| Lumenier CineLifter - AS150 5200mAh 6S | 5200 | 120C | 800.0 g | 1550 g | $1.88 |
| Lumenier CineLifter - AS150 4500mAh 6S | 4500 | 120C | 705.0 g | 1455 g | $2.03 |
| Lumenier CineLifter 3500mAh 6S | 3500 | 120C | 580.0 g | 1330 g | $2.0 |
| Auline 3300mAh 6S | 3300 | 45C | 430.0 g | 1180 g | $1.02 |
| Auline 3000mAh 6S | 3000 | 10C | 297.0 g | 1047 g | $1.44 |
MOZ7 V2 flight time
The MOZ7 V2 flies ≈ 12.0-24.0 min on the 6 pack capacities listed above at our 12 A cruise-current estimate, with 80% of a pack used: 3000 mAh ≈ 12.0 min, 3300 mAh ≈ 13.2 min, 3500 mAh ≈ 14.0 min, 4500 mAh ≈ 18.0 min, 5200 mAh ≈ 20.8 min, 6000 mAh ≈ 24.0 min.
Where this data comes from
Manufacturer spec ~750g; independent reviews measured closer to 843g dry.
