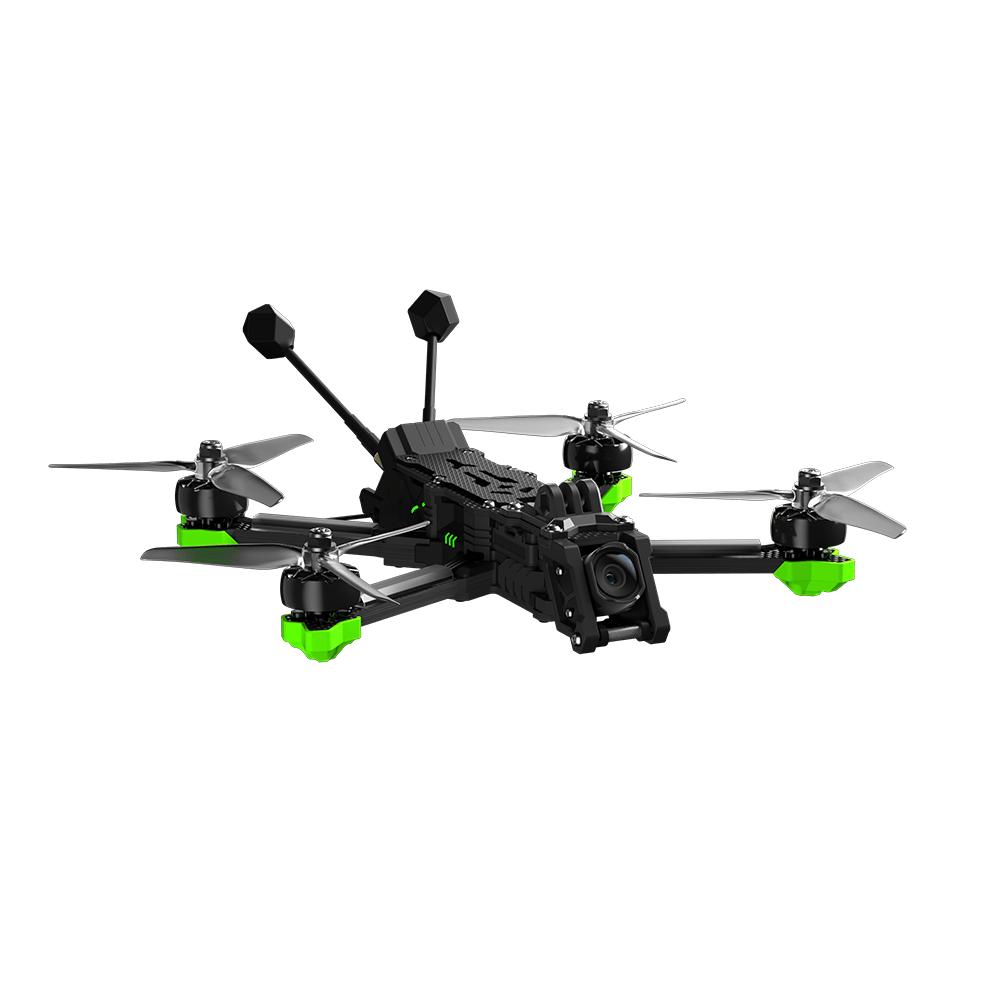

iFlight Nazgul Evoque F5 V3
At 492 g dry the Nazgul Evoque F5 V3 is 708-746 g ready to fly on the 6 matching 6S packs listed below (1480-1500 mAh): the pack is 31-34% of all-up weight. iFlight publishes 736 g all-up with its own pack.
| Class | freestyle |
|---|---|
| Wheelbase | 239 mm |
| Weight (no battery) | 492 g |
| Typical AUW | 736 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | iFlight XING2 2207 1750KV |
| VTX system | DJI O4 Pro |
| Flight controller | Borg Mini F7 Flight Controller |
| Manufacturer flight time | 12-13 hover (6S 1480) min |
Full motor specs: iFlight Xing2 2207
What battery does the Nazgul Evoque F5 V3 use?
| Cells | 6S |
|---|---|
| Capacity | 1480 mAh |
| Recommended range | 1480-1550 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 492 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Tattu R-Line Version 6.0 SQ 1480mAh 6S | 1480 | 160C | 220.0 g | 712 g | $1.29 |
| Dogcom Ultra Series 1480mAh 6S | 1480 | 150C | 216.0 g | 708 g | $1.52 |
| Dogcom SBang 1480mAh 6S | 1480 | 150C | 239.0 g | 731 g | $1.73 |
| Dogcom SBang V2 1480mAh 6S | 1480 | 160C | 244.0 g | 736 g | $1.86 |
| RaceDayQuads CNHL Black Series 1500mAh 6S | 1500 | 100C | 254.0 g | 746 g | $1.08 |
| CNHL Black Series V2.0 1500mAh 6S | 1500 | 130C | 251.0 g | 743 g | $1.31 |
Nazgul Evoque F5 V3 flight time
The Nazgul Evoque F5 V3 flies ≈ 5.5-5.5 min on the 2 pack capacities listed above at our 13 A cruise-current estimate, with 80% of a pack used: 1480 mAh ≈ 5.5 min, 1500 mAh ≈ 5.5 min.
Where this data comes from
O4 Pro + GPS version. DeadCat 236mm / True X 239mm dual geometry.
