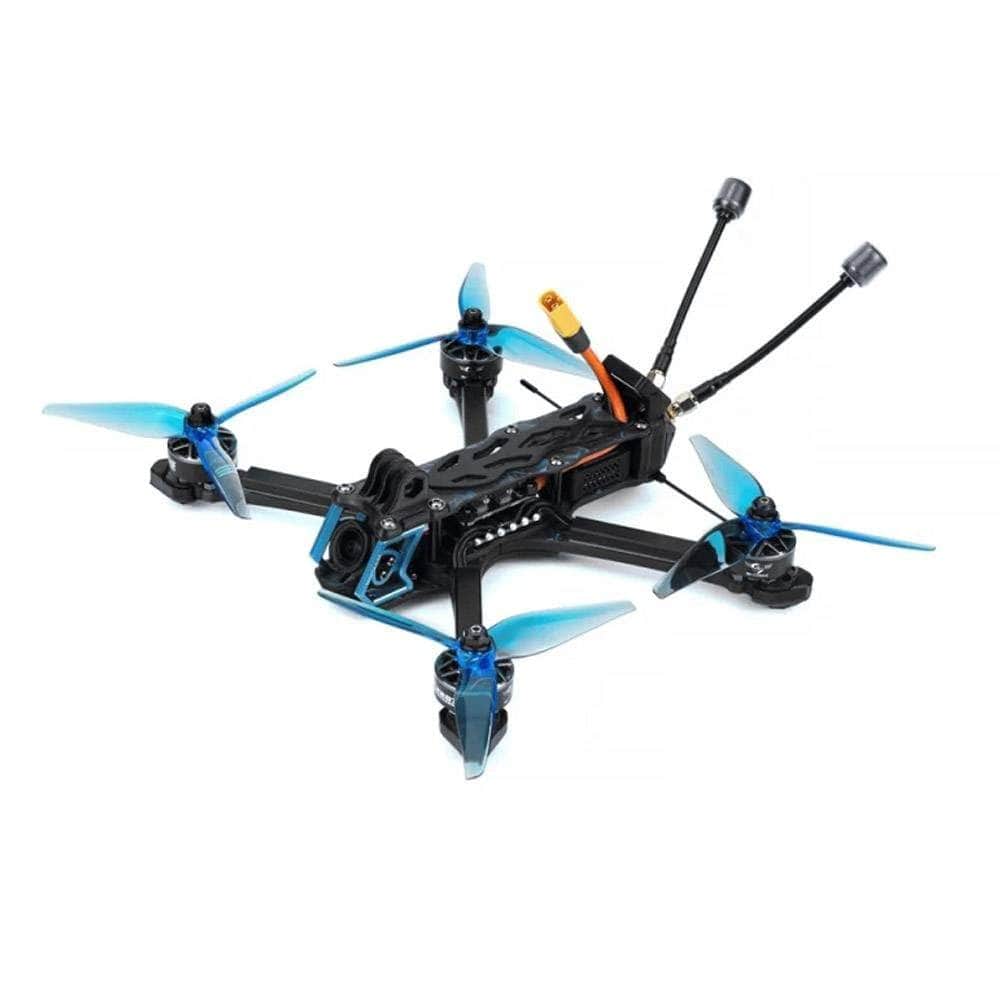

Axisflying Manta 5 SE
At 461.1 g dry the Manta 5 SE is 650.1-704.1 g ready to fly on the 6 matching 6S packs listed below (1300 mAh): the pack is 29-35% of all-up weight. Axisflying publishes 652.7 g all-up with its own pack.
| Class | freestyle |
|---|---|
| Wheelbase | 223 mm |
| Weight (no battery) | 461.1 g |
| Typical AUW | 652.7 g |
| Prop size | 5.1 " |
| Prop mount | M5 |
| Motors | Axisflying AE2207 V2 1960KV |
| VTX system | analog Smurfs 1.6W (O3/O4 variants) |
| Flight controller | Axisflying Argus ECO FC F405 |
| Receiver options | TBS Nano RX or ELRS 2.4 GHz |
What battery does the Manta 5 SE use?
| Cells | 6S |
|---|---|
| Capacity | 1300 mAh |
| Recommended range | 1100-1500 mAh |
| Connector | XT60 |
| Chemistry | LiPo |
Matching packs from our database
All-up weight is this quad's 461.1 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| CNHL Black Series V2.0 1300mAh 6S | 1300 | 130C | 223.0 g | 684.1 g | $1.26 |
| GNB RDQ Series 1300mAh 6S | 1300 | 100C | 243.0 g | 704.1 g | $1.26 |
| Tattu FunFly 1300mAh 6S | 1300 | 100C | 225.0 g | 686.1 g | $1.37 |
| GNB Gaoneng 1300mAh 6S | 1300 | 120C | 189.0 g | 650.1 g | $1.55 |
| Dogcom 1300mAh 6S | 1300 | 150C | 216.0 g | 677.1 g | $1.59 |
| RDQ RDQ Series 1300mAh 6S | 1300 | 120C | 193.0 g | 654.1 g | $1.72 |
Manta 5 SE flight time
The Manta 5 SE flies ≈ 4.8 min on the 1300 mAh pack listed above at our 13 A cruise-current estimate, with 80% of a pack used.
Where this data comes from
Analog SE version. 223mm SquashedX. V2 with O4 Pro exists.
