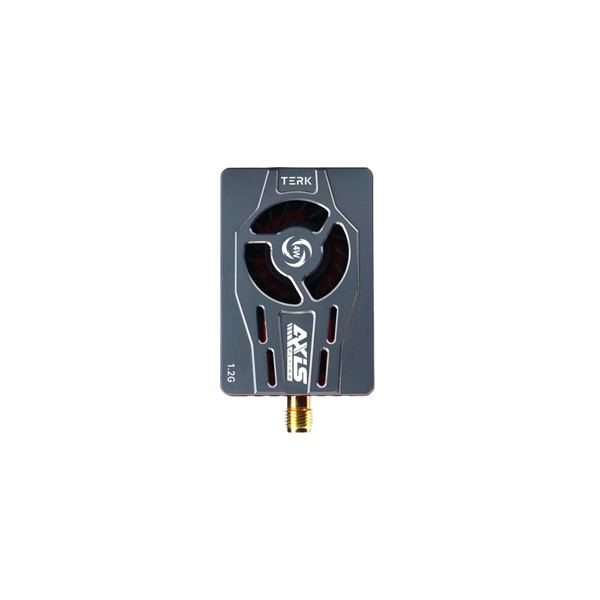

Axisflying TERK 1.2G 4W VTX

Where this data comes from

Read 2026-09-24 off Axisflying's own site, the fourteenth VTX manufacturer catalogue read beside the US retail scrape and the third brand this catalogue carried no transmitter of at all. www.axisflying.com is a UEEShop store with no products.json; its sitemap is named after the domain and is linked only from robots.txt. Its whole transmitter line is /collections/vtx. The brand's own Download Center (/download/vtx) serves six VTX manuals through a public POST (do_action=action.getDownloadCheck), all one-page image-only PDFs rendered here at 6x with Quartz/CoreGraphics. The page's own Specifications table has no power row at all - the figure comes from the brand's datasheet image, read at full resolution: an RF Output table giving Power Level 0-4 as PIT / 25mW / 200mW / 2W / 4W with min/typ/max in dBm per step (-30/12/22/32/35.5 min, 37dBm max at level 4) and current at 12V per step. Its General Characteristics table states Input voltage DC +7V~30V, output DC +5V, IRC TRAMP, Frequency band 1080-1360MHz, 16 channels, SMA 50 Ohms, FM/PLL, +-100kHz stability, S/N >55dBc, -10C~+60C, Weight Approx 40g, Profile dimension 48mm(L)*32mm(W)*19mm(H); a dimension drawing gives the 20mm x 20mm hole pattern. The page's HTML table agrees on all of these. Both the page and the image print Band B channel 5 as 1258 MHz where every other step in both bands is a multiple of 40 (1080/1120/1160/1200/1240/1280/1320/1360) - the brand's own typo, carried consistently, not a reading error here.

• www.axisflying.com/products/terk-12g-4w-vtx
