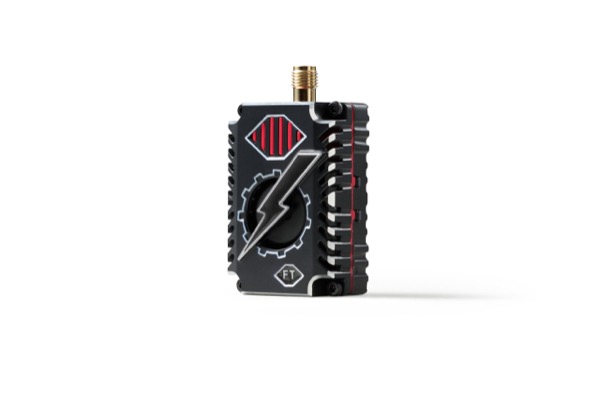

FT Systems FT VTX 1.2GHz 4W 9CH
Of the 10 other 1.2/1.3 GHz analog video transmitters in our database, 7 have a lower maximum power than the FT VTX 1.2GHz 4W 9CH (4000 mW, 36 dBm), 2 the same and 1 a higher one; the class median is 2000 mW.
FT Systems's own Betaflight VTX table is on this page: 2 bands of 8 channels (9 in use), 1080–1360 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 4000 mW |
| Power levels | 0 (pit) / 25 / 2000 / 4000 mW |
| Frequency range | 1080-1360 MHz |
| Band | 1.2/1.3 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm |
| Channels | 9 |
| Antenna connector | SMA |
FT Systems FT VTX 1.2GHz 4W 9CH VTX table for Betaflight
The band and channel frequencies and power levels as FT Systems publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
| B BAND_B | 1258 | — | — | — | — | — | — | — |
Frequencies in MHz; "—" is an unused slot. Power levels: 0 (value 9), 25 (value 25), 2W (value 2000), 4W (value 4000).
vtxtable bands 2
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 1080 1120 1160 1200 1240 1280 1320 1360
vtxtable band 2 BAND_B B CUSTOM 1258 0 0 0 0 0 0 0
vtxtable powerlevels 4
vtxtable powervalues 9 25 2000 4000
vtxtable powerlabels 0 25 2W 4W
saveSource: https://ft.systems/wp-content/uploads/2025/08/FT-VTX-1D2.zip — Copied from 'FT VTX 1D2.json' in the maker's settings download (https://ft.systems/wp-content/uploads/2025/08/FT-VTX-1D2.zip), linked from https://ft.systems/en/video-transmitter-vtx-ft-1-2/ as 'Settings File'. Every frequency matches the frequency table on page 4 of the maker's manual FT_VTX_instruction_1.2_GHz.pdf. The ninth channel, 1258 MHz, is the file's BAND_B CH1; the other seven slots of that band are 0, Betaflight's unused slot. Power values and labels are the file's own: its lowest step is labelled 0 but commanded as 9 mW, as on FT's 4.8-7.2 GHz file.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 1.2-1.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Ukrainian-made transmitter: 9 channels (one band) over 1080-1360 MHz, an aluminium heatsink with a fan, controlled over IRC Tramp. FT Systems quotes measured RF output of 3680-4530 mW across the range rather than one figure, because the amplifier does not deliver the same power at every frequency - the 4000 mW here is the nominal top setting. No weight: the product page says 30 g and the maker's manual 25.85 g for the same 53x28.85x16 mm body, so the two maker sources disagree one against one. Outside the 5.8 GHz band this is not a licence-free link in most countries; check local rules before transmitting. FT prints the connector as 'SMA female'; the column holds one spelling per connector.
