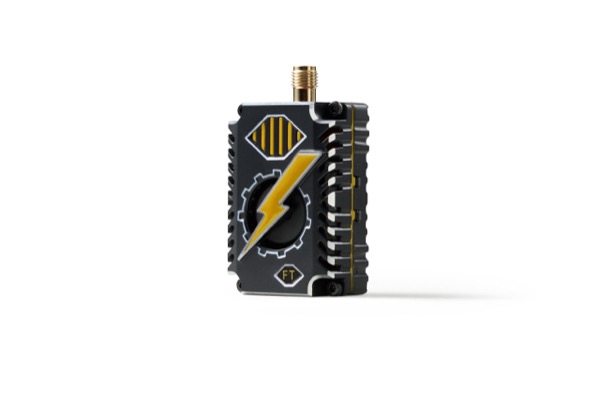

FT Systems FT VTX 2.7GHz 4W 16CH
| System | analog |
|---|---|
| Max power | 4000 mW |
| Power levels | 0 (pit) / 25 / 2000 / 4000 mW |
| Frequency range | 2700-3000 MHz |
| Band | 2.4-3.0 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm |
| Channels | 16 |
| Antenna connector | SMA |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Ukrainian-made transmitter: 16 channels (two bands) over 2700-3000 MHz, an aluminium heatsink with a fan, controlled over IRC Tramp. FT Systems quotes measured RF output of 3400-3890 mW across the range rather than one figure, because the amplifier does not deliver the same power at every frequency - the 4000 mW here is the nominal top setting. No weight: the product page says 30 g and the maker's manual 25.85 g for the same 53x28.85x16 mm body, so the two maker sources disagree one against one. Outside the 5.8 GHz band this is not a licence-free link in most countries; check local rules before transmitting. FT prints the connector as 'SMA female'; the column holds one spelling per connector.
