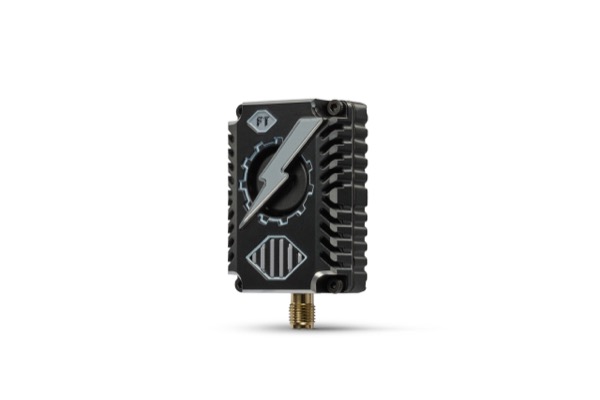

FT Systems FT VTX 3.3GHz 4W 16CH
Of the 13 other 3.1-4.0 GHz analog video transmitters in our database, 4 have a lower maximum power than the FT VTX 3.3GHz 4W 16CH (4000 mW, 36 dBm), 4 the same and 5 a higher one; the class median is 4000 mW.
FT Systems's own Betaflight VTX table is on this page: 2 bands of 8 channels, 3170–3470 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 4000 mW |
| Power levels | 0 (pit) / 25 / 2000 / 4000 mW |
| Frequency range | 3170-3470 MHz |
| Band | 3.1-4.0 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm |
| Channels | 16 |
| Antenna connector | SMA |
FT Systems FT VTX 3.3GHz 4W 16CH VTX table for Betaflight
The band and channel frequencies and power levels as FT Systems publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 3330 | 3350 | 3370 | 3390 | 3410 | 3430 | 3450 | 3470 |
| B BAND_B | 3170 | 3190 | 3210 | 3230 | 3250 | 3270 | 3290 | 3310 |
Frequencies in MHz; "—" is an unused slot. Power levels: 0 (value 9), 25 (value 25), 2W (value 2000), 4W (value 4000).
vtxtable bands 2
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 3330 3350 3370 3390 3410 3430 3450 3470
vtxtable band 2 BAND_B B CUSTOM 3170 3190 3210 3230 3250 3270 3290 3310
vtxtable powerlevels 4
vtxtable powervalues 9 25 2000 4000
vtxtable powerlabels 0 25 2W 4W
saveSource: https://ft.systems/wp-content/uploads/2025/08/FT-VTX-3D3.zip — Copied from 'FT VTX 3D3.json' in the maker's settings download (https://ft.systems/wp-content/uploads/2025/08/FT-VTX-3D3.zip), linked from https://ft.systems/en/video-transmitter-vtx-ft-3-3/ as 'Settings File'. Every frequency matches the frequency table on page 4 of the maker's manual FT_VTX_3.3-GHZ.pdf. Power values and labels are the file's own: its lowest step is labelled 0 but commanded as 9 mW, as on FT's 4.8-7.2 GHz file.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 3.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Ukrainian-made transmitter: 16 channels (two bands) over 3170-3470 MHz, an aluminium heatsink with a fan, controlled over IRC Tramp. FT Systems quotes measured RF output of 4090-4480 mW across the range rather than one figure, because the amplifier does not deliver the same power at every frequency - the 4000 mW here is the nominal top setting. No weight: the product page says 30 g and the maker's manual 25.85 g for the same 53x28.85x16 mm body, so the two maker sources disagree one against one. Outside the 5.8 GHz band this is not a licence-free link in most countries; check local rules before transmitting. FT prints the connector as 'SMA female'; the column holds one spelling per connector.
