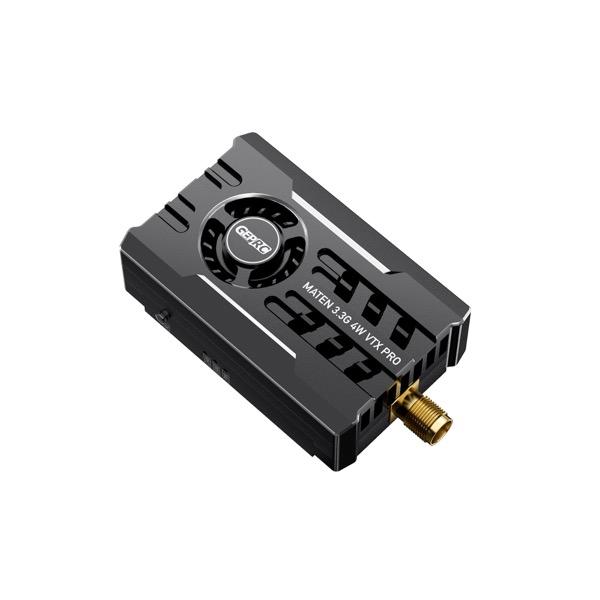

GEPRC MATEN 3.3G 4W VTX PRO
| System | analog |
|---|---|
| Max power | 4000 mW |
| Power levels | 25 / 200 / 1600 / 4000 mW |
| Frequency range | 3000-3500 MHz |
| Input voltage | 12-36V (3-8S) |
| Mounting | 20x20mm M2 / 25.5x25.5mm M2 |
| Channels | 48 |
| Antenna connector | SMA |
| Weight | 36.0 g |
| Price (approx.) | 69.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power: 25mW/200mW/1600mW/4000mW/Pit mode', 'Frequency: 3000-3500MHz', 'Channel: 48CH', 'Input voltage: DC12-36V（3-8S Battery）', 'Mounting hole: 20x20mm(M2),25.5×25.5mm(M2)', 'Antenna interface: SMA', 'Weight: 36g', 'Size: 57×31.5×17.5mm'. Same six A-F bands (3083-3495 MHz) as the 3 W model, and the same round 3000-3500 on the spec line; this SKU differs from it in the amplifier, the SMA pigtail and 7mm of length.
