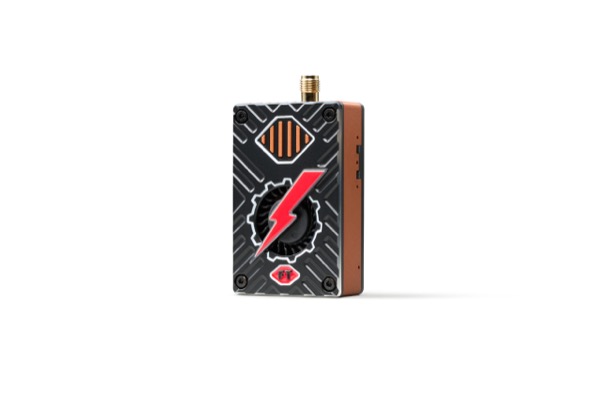

FT Systems FT VTX 7.0-8.5GHz 5W 80CH
Of the 8 other 6.0-8.5 GHz analog video transmitters in our database, 3 have a lower maximum power than the FT VTX 7.0-8.5GHz 5W 80CH (5000 mW, 37 dBm), 3 the same and 2 a higher one; the class median is 5000 mW.
| System | analog |
|---|---|
| Max power | 5000 mW |
| Power levels | 0 (pit) / 500 / 2500 / 5000 mW |
| Frequency range | 7060-8500 MHz |
| Band | 6.0-8.5 GHz |
| Input voltage | 15-36V (4-8S) |
| Mounting | 20x20mm |
| Channels | 80 |
| Antenna connector | SMA |
Other transmitters in this band, side by side: 6-8.5 GHz (incl. 7.2 GHz) FPV VTX compared.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Ukrainian-made transmitter: 80 channels (ten bands of eight) over 7060-8500 MHz, an aluminium heatsink with a fan, controlled over IRC Tramp. FT Systems quotes measured RF output of 3920-8010 mW across the range rather than one figure, because the amplifier does not deliver the same power at every frequency - the 5000 mW here is the nominal top setting. No weight: the product page says 50 g and the maker's manual 56 g (the page gives 64.13x37.2x17.2 mm, the manual 64.13x37.4x18.8 mm), so the two maker sources disagree one against one. Outside the 5.8 GHz band this is not a licence-free link in most countries; check local rules before transmitting. FT prints the connector as 'SMA female'; the column holds one spelling per connector.
