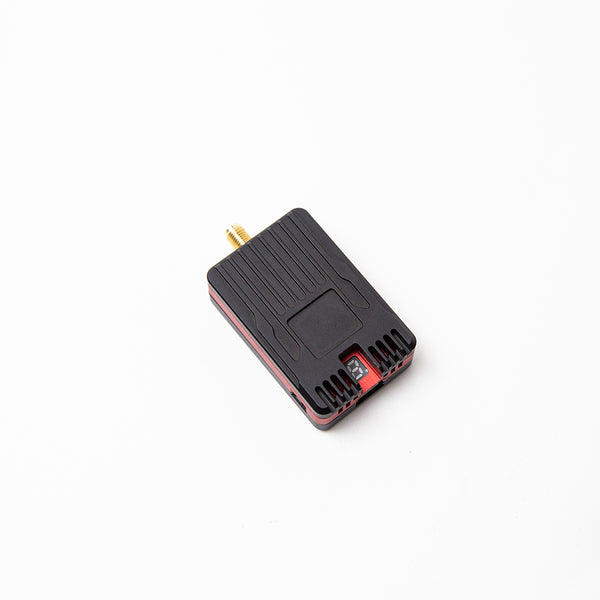

Skyzone VT7550 CNC 7.5G 5W VTX
| System | analog |
|---|---|
| Max power | 5000 mW |
| Frequency range | 6240-7500 MHz |
| Input voltage | 9-36V |
| Mounting | 20x20mm |
| Channels | 64 |
| Antenna connector | SMA |
| Weight | 73.5 g |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. The one VT-series part the brand documents: /pages/download links an unlabelled image next to the Steadyview X 7.5G manual, and it is the VT7550's own one-page spec sheet. Read at full resolution it gives the frequency table (8 bands A B C D E F H J of 8 channels, 6240-7500 MHz), Antenna port SMA, Input voltage 9~36V, Protocol IRC/Button control with LED segment display, Mounting 20*20mm*M3, size 63.5*38*20.8mm, weight 73.5g, and a wiring diagram whose pin rail reads IRC / VTX / GND / 5V OUT / GND / 9-36V. Its Power row states only tolerances - 'Low power ±2dBm, Max power ±0.8dBm' - so max_power_mw holds the 5 W the brand names the part with on both shops ('VT7550 CNC 7.5G 5W VTX' over 'The SKYZONE VT7550 6.0G/7.5G 5W VTX'), and power_levels_mw is empty because no document enumerates the steps. price_usd is empty on a published page because the brand's two shops disagree about it: $89.90 on skyzonefpv.com and $89.99 on atomrc.com, both on 2026-09-25.
