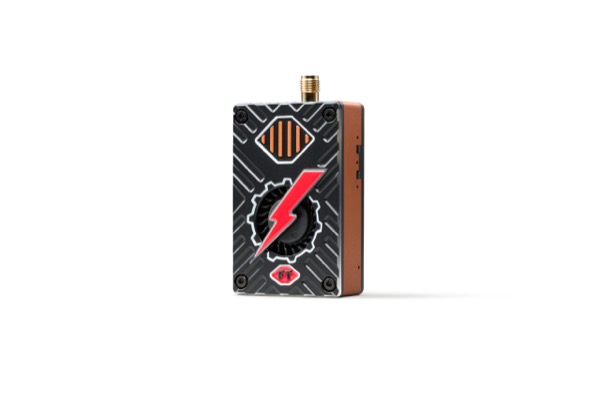

FT Systems FT VTX 7.2GHz 5W 64CH
Of the 8 other 6.0-8.5 GHz analog video transmitters in our database, 3 have a lower maximum power than the FT VTX 7.2GHz 5W 64CH (5000 mW, 37 dBm), 3 the same and 2 a higher one; the class median is 5000 mW.
FT Systems's own Betaflight VTX table is on this page: 8 bands of 8 channels, 6110–7210 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 5000 mW |
| Power levels | 0 (pit) / 25 / 2500 / 5000 mW |
| Frequency range | 6110-7210 MHz |
| Band | 6.0-8.5 GHz |
| Input voltage | 12-36V (3-8S) |
| Mounting | 20x20mm |
| Channels | 64 |
| Antenna connector | SMA |
FT Systems FT VTX 7.2GHz 5W 64CH VTX table for Betaflight
The band and channel frequencies and power levels as FT Systems publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 6110 | 6130 | 6150 | 6170 | 6190 | 6210 | 6230 | 6250 |
| B BAND_B | 6270 | 6290 | 6310 | 6330 | 6350 | 6370 | 6390 | 6410 |
| E BAND_E | 6430 | 6450 | 6470 | 6490 | 6510 | 6530 | 6550 | 6570 |
| F BAND_F | 6590 | 6610 | 6630 | 6650 | 6670 | 6690 | 6710 | 6730 |
| R BAND_R | 6750 | 6770 | 6790 | 6810 | 6830 | 6850 | 6870 | 6890 |
| P BAND_P | 6910 | 6930 | 6950 | 6970 | 6990 | 7010 | 7030 | 7050 |
| H BAND_H | 7070 | 7090 | 7110 | 7130 | 7150 | 7170 | 7190 | 7210 |
| U BAND_U | 6115 | 6265 | 6425 | 6585 | 6745 | 6905 | 7065 | 7185 |
Frequencies in MHz; "—" is an unused slot. Power levels: 0 (value 9), 25 (value 25), 2.5 (value 2500), 5W (value 5000).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 6110 6130 6150 6170 6190 6210 6230 6250
vtxtable band 2 BAND_B B CUSTOM 6270 6290 6310 6330 6350 6370 6390 6410
vtxtable band 3 BAND_E E CUSTOM 6430 6450 6470 6490 6510 6530 6550 6570
vtxtable band 4 BAND_F F CUSTOM 6590 6610 6630 6650 6670 6690 6710 6730
vtxtable band 5 BAND_R R CUSTOM 6750 6770 6790 6810 6830 6850 6870 6890
vtxtable band 6 BAND_P P CUSTOM 6910 6930 6950 6970 6990 7010 7030 7050
vtxtable band 7 BAND_H H CUSTOM 7070 7090 7110 7130 7150 7170 7190 7210
vtxtable band 8 BAND_U U CUSTOM 6115 6265 6425 6585 6745 6905 7065 7185
vtxtable powerlevels 4
vtxtable powervalues 9 25 2500 5000
vtxtable powerlabels 0 25 2.5 5W
saveSource: https://ft.systems/wp-content/uploads/2025/11/7D2-T-5.json_.zip — Copied from '7D2 T-5.json' in the maker's settings download (https://ft.systems/wp-content/uploads/2025/11/7D2-T-5.json_.zip), linked from https://ft.systems/en/video-transmitter-vtx-ft-7-2/ as 'Settings File'. Every frequency matches the frequency table on page 4 of the maker's manual FT_VTX_7.2-MHZ-5W.pdf. Power values and labels are the file's own: its lowest step is labelled 0 but commanded as 9 mW, as on FT's 4.8-7.2 GHz file.. Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 6-8.5 GHz (incl. 7.2 GHz) FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Ukrainian-made transmitter: 64 channels (eight bands) over 6110-7210 MHz, an aluminium heatsink with a fan, controlled over IRC Tramp. FT Systems quotes measured RF output of 4400-6000 mW across the range rather than one figure, because the amplifier does not deliver the same power at every frequency - the 5000 mW here is the nominal top setting. No weight: the product page says 50 g and the maker's manual 56 g for the same 64.13x37.2x17.2 mm body, so the two maker sources disagree one against one. Outside the 5.8 GHz band this is not a licence-free link in most countries; check local rules before transmitting. FT prints the connector as 'SMA female'; the column holds one spelling per connector.
