HDZero Freestyle V2 20x20 25-1000mW Digital HD Kit
Listed as: HDZero Freestyle V2 20x20 25-1000mW Digital HD Kit - U.FL
Of the 10 other 5.8 GHz HDZero video transmitters in our database, 8 have a lower maximum power than the Freestyle V2 20x20 25-1000mW Digital HD Kit (1000 mW, 30 dBm) and 2 the same; the class median is 200 mW.
| System | HDZero |
|---|---|
| Max power | 1000 mW |
| Power levels | 25 / 200 (HAM licence unlock: 500 / 1000) mW |
| Frequency range | 5.725-5.850 GHz |
| Band | 5.8 GHz |
| Input voltage | 7-25V |
| Power draw | 6-15 W |
| Mounting | 20x20mm M2 |
| Channels | 12 |
| Antenna connector | U.FL |
| Price (approx.) | 179.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

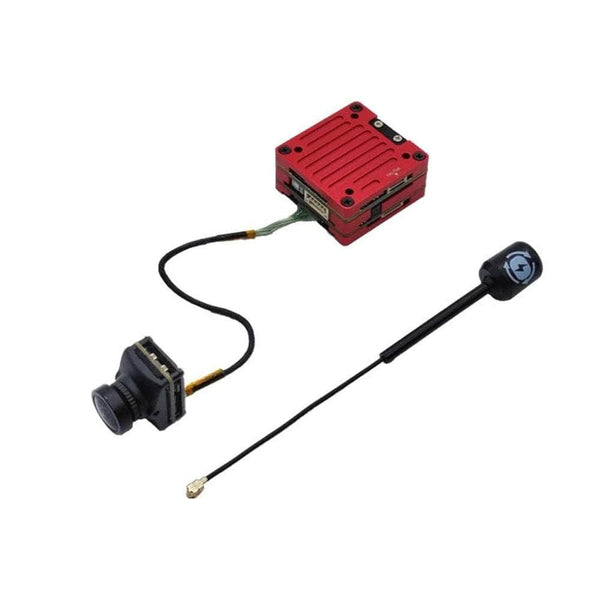

Second source 2026-09-23: this kit is the Freestyle V2 VTX plus a Nano 90 V2 camera (19x19 mount) and an RHCP antenna, and HDZero's kit page reprints the transmitter's block verbatim - 22.3 g, 29x30x14mm, 5.725-5.850GHz, Transmitter Power 25mW,200mW, 20x20mm M2 holes, Secured U.FL, Input Power 7-25V, 6-15W - with the same sentence that the VTX is capable of 1W at R1 once unlocked with a licence. weight_g stays empty on purpose: 22.3 g is the transmitter and this SKU is a box with a camera and an antenna in it, and no source weighs the box. power_draw is the maker's own supply figure, 'Power Consumption: 6~15W' in the Freestyle V2 column (the VTX in this kit), read 2026-10-17; it is the VTX's input draw, not its RF output.
