RUSHFPV XSPAN 4.0-4.8GHz 10W
| System | analog |
|---|---|
| Max power | 10000 mW |
| Power levels | 25 / 200 / 2000 / 10000 mW |
| Frequency range | 4.02-4.80 GHz |
| Input voltage | 7-30V |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

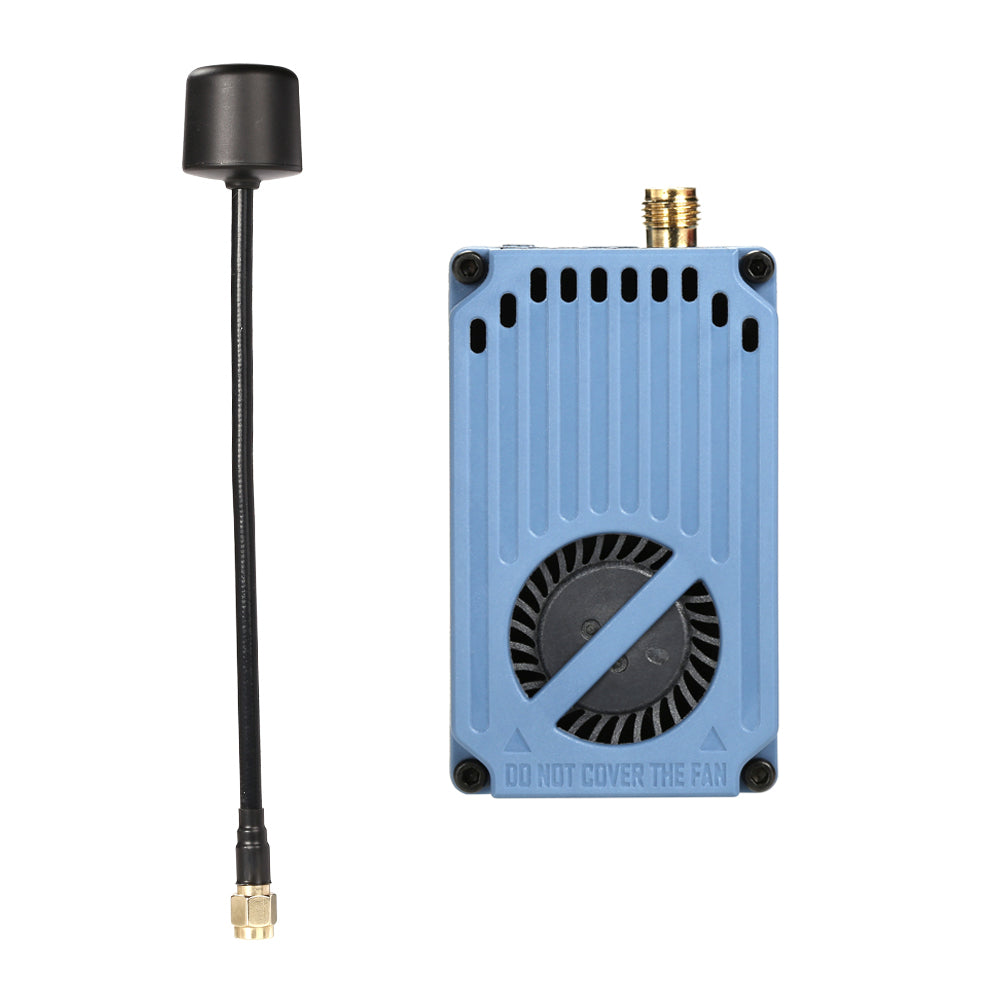

Board marking XN-40481. Label: power steps PIT / 25 / 200 mW / 2 W / 10 W, five bands A, B, E, F, R spanning 4020-4800 MHz, eight channels per band, 7-30 V dual DC-in. Sold as '4G-4.8G'; the 4020-4800 MHz edges are the label's own. X-SPAN is RushFPV's name for its wideband analog module line - a standalone brick with an SMA jack, a fan and a dual DC-in that also feeds the camera, not a board you bolt into a stack. RushFPV publishes no weight and no mounting pattern for the class, so those columns stay empty. Output above the lowest step is licensed spectrum in most countries; the module's own label carries that reminder.
