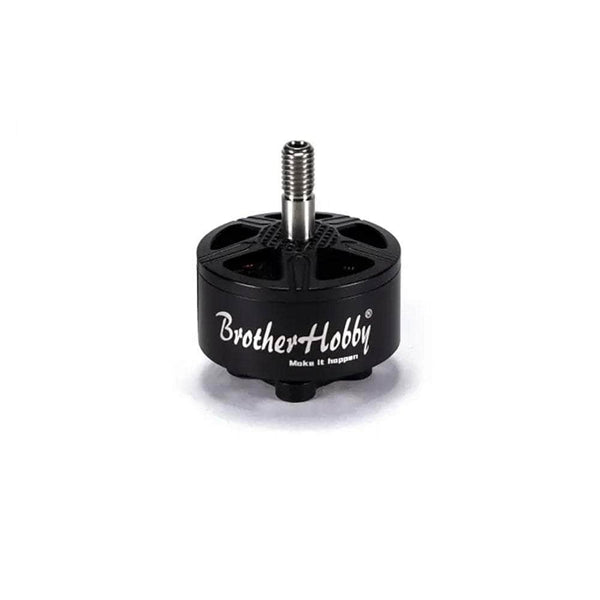

BrotherHobby Avenger 2510

BrotherHobby Avenger 2510
Image: racedayquads.com
Stator2510
KV options1250
Weight55.0 g
ShaftM5
Max cells5-7S
Configuration12N14P
DimensionsØ30.3x36.5 mm
Mount16x16mm (M3)
Max thrust2717 g
Price (approx.)32.49 USD

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
930 HQ 8*4.5*3 Triblade 7S 30 2.0 A 6242 372 g 6.64 g/W
930 HQ 8*4.5*3 Triblade 7S 40 4.2 A 8032 647 g 5.5 g/W
930 HQ 8*4.5*3 Triblade 7S 50 7.3 A 9566 912 g 4.46 g/W
930 HQ 8*4.5*3 Triblade 7S 60 12.1 A 11192 1224 g 3.61 g/W
930 HQ 8*4.5*3 Triblade 7S 70 17.7 A 12442 1592 g 3.22 g/W
930 HQ 8*4.5*3 Triblade 7S 80 26.3 A 13321 2525 g 3.44 g/W
930 HQ 8*4.5*3 Triblade 7S 90 36.9 A 14807 2615 g 2.55 g/W
930 HQ 8*4.5*3 Triblade 7S 100 44.0 A 15535 2717 g 2.23 g/W
1030 HQ 8*4.5*3 Triblade 6S 30 2.2 A 6146 359 g 6.8 g/W
1030 HQ 8*4.5*3 Triblade 6S 40 4.4 A 7737 611 g 5.79 g/W
1030 HQ 8*4.5*3 Triblade 6S 50 7.4 A 9181 868 g 4.89 g/W
1030 HQ 8*4.5*3 Triblade 6S 60 12.7 A 10792 1199 g 3.93 g/W
1030 HQ 8*4.5*3 Triblade 6S 70 19.2 A 12262 1568 g 3.4 g/W
1030 HQ 8*4.5*3 Triblade 6S 80 27.1 A 13446 1930 g 2.98 g/W
1030 HQ 8*4.5*3 Triblade 6S 90 36.8 A 14514 2220 g 2.53 g/W
1030 HQ 8*4.5*3 Triblade 6S 100 45.0 A 15195 2595 g 2.42 g/W
1380 HQ 7*4*3 Triblade 5S 30 2.8 A 7681 315 g 5.63 g/W
1380 HQ 7*4*3 Triblade 5S 40 4.5 A 9128 507 g 5.63 g/W
1380 HQ 7*4*3 Triblade 5S 50 8.1 A 11195 708 g 4.37 g/W
1380 HQ 7*4*3 Triblade 5S 60 10.9 A 12590 865 g 3.97 g/W
1380 HQ 7*4*3 Triblade 5S 70 17.5 A 14345 1152 g 3.31 g/W
1380 HQ 7*4*3 Triblade 5S 80 25.7 A 15991 1500 g 2.93 g/W
1380 HQ 7*4*3 Triblade 5S 90 34.9 A 16550 1942 g 2.81 g/W
1380 HQ 7*4*3 Triblade 5S 100 43.7 A 18820 2178 g 2.52 g/W

Manufacturer bench figures (BrotherHobby 2017 bench, 45 A ESC, 8 throttle points per KV; 930KV on 7S, 1030KV on 6S, 1380KV on 5S); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Hurricane LR 6026-2 6.0x2.6 2 3.0 g
Gemfan Freestyle 6030 6.0x3.0 3 4.45 g
HQProp 5.5X2.2X3 5.5x2.2 3 4.6 g
HQProp 5535 5.5x3.5x3 V2 5.5x3.5 3 4.6 g
HQProp 6x4.3x2 6.0x4.3 2 4.7 g

Where this data comes from

BrotherHobby lists the 2510 in 930/1030/1380 KV; motor body Φ30.3x36.5 mm, 12N14P, M3 16x16 bolt pattern, 55.3 g with 25 cm wires
