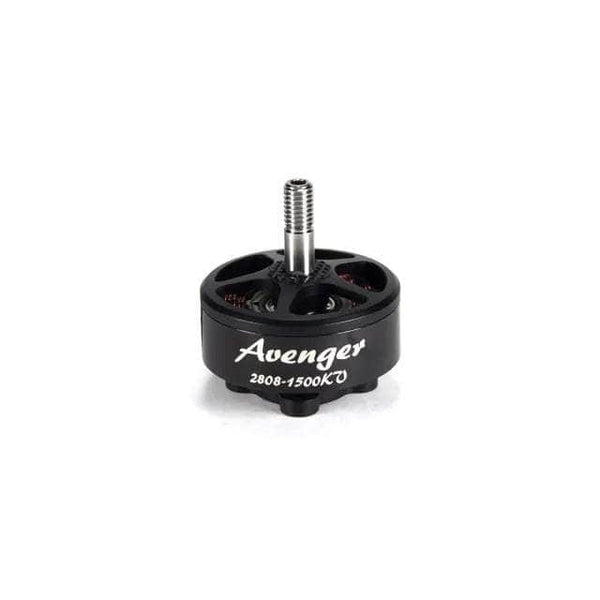

BrotherHobby Avenger 2808

BrotherHobby Avenger 2808
Image: racedayquads.com
Stator2808
KV options1500
Weight55.0 g
Shaft5mm
Max cells4-6S
Configuration12N14P
DimensionsØ33x36.2 mm
MountØ19 (4-M3)
Winding resistance48.00 mOhm
Max thrust2738 g
Price (approx.)27.99 USD

At 55 g it is 6.5 g lighter than average across the 5 2808-class motors in our database (avg 61.5 g).

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1350 HQ 8X4.5X3 6S 30 8.1 A — 761 g 3.73 g/W
1350 HQ 8X4.5X3 6S 40 10.45 A 10243 979 g 3.72 g/W
1350 HQ 8X4.5X3 6S 50 19.3 A 12061 1416 g 2.91 g/W
1350 HQ 8X4.5X3 6S 60 30.49 A 13564 1811 g 2.37 g/W
1350 HQ 8X4.5X3 6S 70 36.26 A 14403 2001 g 2.2 g/W
1350 HQ 8X4.5X3 6S 80 49.74 A 15175 2313 g 1.86 g/W
1350 HQ 8X4.5X3 6S 90 56.86 A 15721 2458 g 1.75 g/W
1350 HQ 8X4.5X3 6S 100 68.48 A 16074 2738 g 1.63 g/W
1500 HQ 7X3.5X3 6S 30 3.2 A 10211 420 g 5.21 g/W
1500 HQ 7X3.5X3 6S 40 6.7 A 12713 721 g 4.27 g/W
1500 HQ 7X3.5X3 6S 50 11.2 A 14528 1027 g 3.64 g/W
1500 HQ 7X3.5X3 6S 60 17.0 A 17186 1344 g 3.15 g/W
1500 HQ 7X3.5X3 6S 70 29.3 A 19957 1938 g 2.65 g/W
1500 HQ 7X3.5X3 6S 80 40.8 A 22117 2296 g 2.26 g/W
1500 HQ 7X3.5X3 6S 90 58.6 A 21634 2408 g 1.66 g/W
1500 HQ 7X3.5X3 6S 100 63.3 A 21705 2469 g 1.57 g/W
1900 HQ 6X3.5X3 6S 30 5.3 A 13352 433 g 3.24 g/W
1900 HQ 6X3.5X3 6S 40 8.8 A 15851 657 g 2.97 g/W
1900 HQ 6X3.5X3 6S 50 16.7 A 19620 1023 g 2.44 g/W
1900 HQ 6X3.5X3 6S 60 24.7 A 22015 1323 g 2.14 g/W
1900 HQ 6X3.5X3 6S 70 35.0 A 24800 1724 g 1.98 g/W
1900 HQ 6X3.5X3 6S 80 51.5 A 27292 2206 g 1.72 g/W
1900 HQ 6X3.5X3 6S 90 62.0 A 28803 2578 g 1.67 g/W
1900 HQ 6X3.5X3 6S 100 63.5 A 28856 2608 g 1.65 g/W

Manufacturer bench figures (BrotherHobby 2022 bench, 6S 80 A ESC, 8 throttle points (30-100%) per winding on one prop each; 1350KV on HQ 8X4.5X3, 1500KV on HQ 7X3.5X3, 1900KV on HQ 6X3.5X3); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
APC 7x4 SF-B4 2-Blade 7.0x4.0 2 5.1 g
HQProp 7x5.5x2 7.0x5.5 2 6.4 g
Gemfan Cinelifter 7035 7x3.5x3 7.0x3.5 3 6.5 g
HQProp 7x4.5x2 Durable 7.0x4.5 2 6.6 g
HQProp MacroQuad 7x4.5 Glass Fiber Nylon CCW 7.0x4.5 2 6.8 g

Where this data comes from

BrotherHobby publishes three Avenger 2808 Test Reports (1350/1500/1900 KV); our listing sells the 1500 KV, whose block gives 48.00 mOhm, 1.69A/10V idle, a 28.00 mm x 8 mm stator and N52H magnets. weight_g is corrected from 54 g to 55.0 g: all three Specification blocks state "Weight Including Cable (g) 55.00" beside "18#, 250mm", where RaceDayQuads prints 54 g. Two source defects reproduced rather than repaired: the 1350 KV sheet's 30% row prints an RPM of "900" where its run is five digits throughout, so that row publishes no RPM; and the 1500 KV sheet's RPM falls from 22117 at 80% to 21634 at 90% while current, thrust and power rise normally
