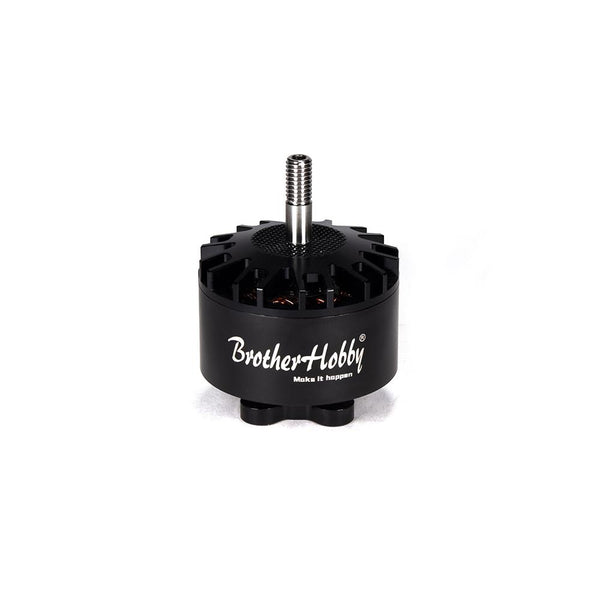

BrotherHobby Tornado T5 3115 Pro

BrotherHobby Tornado T5 3115 Pro
Image: racedayquads.com
Stator3115
KV options400, 1050
Weight110.0 g
Shaft5mm
Max cells6-12S
Configuration12N14P
DimensionsØ37.5x49.5 mm
MountØ19 (4-M3)
Max thrust4480 g
Price (approx.)55.49 USD

At 110 g it is right at the class average across the 4 3115-class motors in our database (avg 107.0 g).

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
400 GF 13X8X3 8S 30 2.5 A 4314 765 g 9.11 g/W
400 GF 13X8X3 8S 40 4.1 A 5191 1154 g 8.38 g/W
400 GF 13X8X3 8S 50 5.8 A 5998 1536 g 7.88 g/W
400 GF 13X8X3 8S 60 7.3 A 6544 1841 g 7.53 g/W
400 GF 13X8X3 8S 70 9.6 A 7101 2251 g 7.0 g/W
400 GF 13X8X3 8S 80 12.5 A 7555 2633 g 6.29 g/W
400 GF 13X8X3 8S 90 16.5 A 8168 3012 g 5.45 g/W
400 GF 13X8X3 8S 100 21.1 A 8801 3650 g 5.18 g/W
400 HQ 9X5X3 12S 30 1.7 A 6868 710 g 8.29 g/W
400 HQ 9X5X3 12S 40 3.0 A 8251 1061 g 7.02 g/W
400 HQ 9X5X3 12S 50 5.2 A 9747 1502 g 5.73 g/W
400 HQ 9X5X3 12S 60 9.0 A 11389 2063 g 4.55 g/W
400 HQ 9X5X3 12S 70 13.5 A 12816 2654 g 3.9 g/W
400 HQ 9X5X3 12S 80 20.3 A 14367 3366 g 3.29 g/W
400 HQ 9X5X3 12S 90 23.2 A 14830 3706 g 3.17 g/W
400 HQ 9X5X3 12S 100 25.4 A 15575 3904 g 3.05 g/W
480 GF 13x8x3 6S 30 2.3 A 3971 666 g 11.49 g/W
480 GF 13x8x3 6S 40 4.2 A 4866 994 g 9.39 g/W
480 GF 13x8x3 6S 50 6.4 A 5531 1349 g 8.36 g/W
480 GF 13x8x3 6S 60 9.6 A 6267 1703 g 7.04 g/W
480 GF 13x8x3 6S 70 13.3 A 6885 2076 g 6.22 g/W
480 GF 13x8x3 6S 80 15.8 A 7050 2312 g 5.83 g/W
480 GF 13x8x3 6S 90 19.9 A 7749 2668 g 5.34 g/W
480 GF 13x8x3 6S 100 29.0 A 8506 3413 g 4.69 g/W
640 GF11X7X3 6S 30 3.1 A 5084 740 g 9.47 g/W
640 GF11X7X3 6S 40 6.4 A 6277 1164 g 7.22 g/W
640 GF11X7X3 6S 50 11.9 A 7586 1712 g 5.71 g/W
640 GF11X7X3 6S 60 13.9 A 7985 1919 g 5.48 g/W
640 GF11X7X3 6S 70 18.9 A 8745 2325 g 4.9 g/W
640 GF11X7X3 6S 80 22.2 A 9182 2568 g 4.61 g/W
640 GF11X7X3 6S 90 26.8 A 9551 2946 g 4.38 g/W
640 GF11X7X3 6S 100 39.0 A 9932 3699 g 3.81 g/W
900 HQ 9x5x3 6S 30 1.8 A 4586 264 g 5.82 g/W
900 HQ 9x5x3 6S 40 7.4 A 7749 831 g 4.46 g/W
900 HQ 9x5x3 6S 50 13.0 A 9630 1300 g 3.98 g/W
900 HQ 9x5x3 6S 60 24.1 A 11690 1996 g 3.31 g/W
900 HQ 9x5x3 6S 70 40.8 A 13616 2843 g 2.79 g/W
900 HQ 9x5x3 6S 80 52.2 A 14567 3251 g 2.49 g/W
900 HQ 9x5x3 6S 90 61.5 A 15350 3645 g 2.38 g/W
900 HQ 9x5x3 6S 100 65.8 A 15508 3802 g 2.32 g/W
970 HQ 10x4.5x3 6S 30 7.3 A 8633 1014 g 5.51 g/W
970 HQ 10x4.5x3 6S 40 12.1 A 9637 1512 g 4.96 g/W
970 HQ 10x4.5x3 6S 50 18.0 A 10816 1952 g 4.32 g/W
970 HQ 10x4.5x3 6S 60 24.2 A 11777 2351 g 3.87 g/W
970 HQ 10x4.5x3 6S 70 33.2 A 12955 2872 g 3.46 g/W
970 HQ 10x4.5x3 6S 80 43.9 A 13590 3171 g 2.89 g/W
970 HQ 10x4.5x3 6S 90 49.5 A 14428 3428 g 2.77 g/W
970 HQ 10x4.5x3 6S 100 65.4 A 15750 4431 g 2.71 g/W
1050 HQ 9x5x3 6S 30 10.8 A 8442 1296 g 4.78 g/W
1050 HQ 9x5x3 6S 40 16.1 A 9896 1814 g 4.49 g/W
1050 HQ 9x5x3 6S 50 21.6 A 11177 2082 g 3.84 g/W
1050 HQ 9x5x3 6S 60 27.0 A 12076 2417 g 3.58 g/W
1050 HQ 9x5x3 6S 70 39.7 A 13298 3035 g 3.07 g/W
1050 HQ 9x5x3 6S 80 46.5 A 14107 3450 g 2.98 g/W
1050 HQ 9x5x3 6S 90 57.2 A 14947 3774 g 2.65 g/W
1050 HQ 9x5x3 6S 100 68.2 A 15048 4449 g 2.62 g/W
1200 8.0*4.5 CF Dualblade 6S 30 4.5 A 7554 500 g 4.63 g/W
1200 8.0*4.5 CF Dualblade 6S 40 10.7 A 10422 970 g 3.78 g/W
1200 8.0*4.5 CF Dualblade 6S 50 15.5 A 11893 1270 g 3.43 g/W
1200 8.0*4.5 CF Dualblade 6S 60 24.8 A 13887 1760 g 2.97 g/W
1200 8.0*4.5 CF Dualblade 6S 70 35.0 A 15553 2230 g 2.68 g/W
1200 8.0*4.5 CF Dualblade 6S 80 54.6 A 17799 2970 g 2.3 g/W
1200 8.0*4.5 CF Dualblade 6S 90 73.6 A 19430 3520 g 2.04 g/W
1200 8.0*4.5 CF Dualblade 6S 100 88.6 A 20843 4120 g 2.0 g/W
1200 9.0*4.7 CF Dualblade 6S 30 3.7 A 7459 470 g 5.29 g/W
1200 9.0*4.7 CF Dualblade 6S 40 7.5 A 9751 860 g 4.78 g/W
1200 9.0*4.7 CF Dualblade 6S 50 13.6 A 12047 1340 g 4.11 g/W
1200 9.0*4.7 CF Dualblade 6S 60 20.3 A 13805 1770 g 3.65 g/W
1200 9.0*4.7 CF Dualblade 6S 70 30.7 A 15869 2400 g 3.28 g/W
1200 9.0*4.7 CF Dualblade 6S 80 46.3 A 18051 3120 g 2.84 g/W
1200 9.0*4.7 CF Dualblade 6S 90 65.5 A 20081 3940 g 2.55 g/W
1200 9.0*4.7 CF Dualblade 6S 100 80.2 A 21218 4480 g 2.38 g/W
1520 GF8*4*3 4S 30 8.6 A 8802 657 g 4.55 g/W
1520 GF8*4*3 4S 40 13.6 A 10382 934 g 4.09 g/W
1520 GF8*4*3 4S 50 17.5 A 11572 1143 g 3.89 g/W
1520 GF8*4*3 4S 60 25.4 A 13215 1502 g 3.52 g/W
1520 GF8*4*3 4S 70 36.0 A 14942 1917 g 3.17 g/W
1520 GF8*4*3 4S 80 49.2 A 16406 2372 g 2.87 g/W
1520 GF8*4*3 4S 90 53.7 A 17052 2571 g 2.85 g/W
1520 GF8*4*3 4S 100 61.1 A 17757 2792 g 2.72 g/W

Manufacturer bench figures (BrotherHobby bench (2018-2023 sheets), 8 throttle points (30-100%) per winding on one prop each; 400KV on 8S and again on 12S, 480/640/900/970/1050KV and both 1200KV runs on 6S, 1520KV on 4S); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
HQProp 8x5 8.0x5.0 2 10.0 g
Gemfan Cinelifter 8040 8.0x4.0 3 10.5 g
HQProp 8x3.7x3 3-Blade 8.0x3.7 3 12.0 g
HQProp MacroQuad 8x4x3 3-Blade 8.0x4.0 3 12.8 g
HQProp 8x4x3 3-Blade 8.0x4.0 3 13.0 g

Where this data comes from

BrotherHobby publishes ten Tornado T5 3115 PRO Test Reports; our listing sells the 400 and 1050 KV windings, whose blocks give 212.00 and 34.00 mOhm and 110.00 and 108.00 g with cable (16# 300 mm), against the 110 g our retail source prints. Every block states a 31.00 x 15 mm stator, 12N14P and N52H; the 900 KV sheet's lamination is nippon 1500# where the others are Kawasaki 1200# 0.2 mm. Two source facts recorded rather than repaired: the 400 KV HQ 9X5X3 sheet is headed 12S and states 220.00 g - twice the 110.00 g the 400 KV 8S sheet states for the same winding, and above the 5-8S our listing sells - and the 1200 KV drawing calls out 18AWG 250 mm leads where its own block says 16#, 300 mm. Peak thrust 4480 g is the 1200 KV 9.0*4.7 run, a winding our source does not sell
