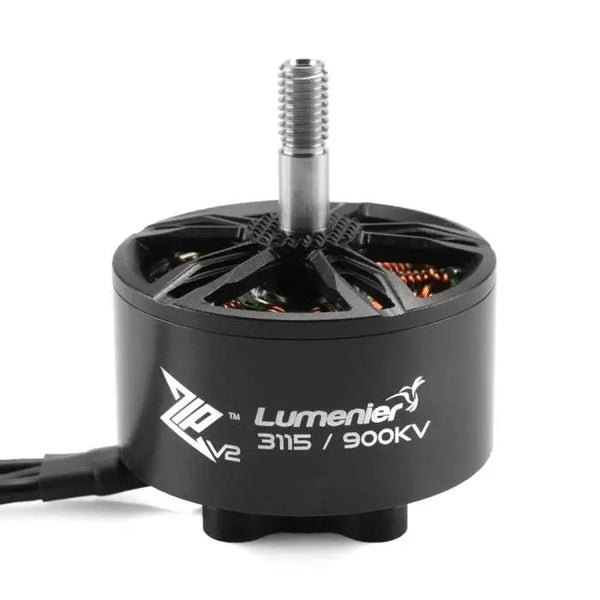

Lumenier ZIP V2 3115 Cinematic
| Stator | 3115 |
|---|---|
| KV options | 900, 1050 |
| Weight | 98.0 g |
| Shaft | 5mm |
| Max cells | 4-6S |
| Configuration | 12N14P |
| Mount | 19x19mm (M3) |
| Price (approx.) | 51.99 USD |
At 98 g it is 9.0 g lighter than average across the 4 3115-class motors in our database (avg 107.0 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| HQProp 8x5 | 8.0x5.0 | 2 | 10.0 g |
| Gemfan Cinelifter 8040 | 8.0x4.0 | 3 | 10.5 g |
| HQProp 8x3.7x3 3-Blade | 8.0x3.7 | 3 | 12.0 g |
| HQProp MacroQuad 8x4x3 3-Blade | 8.0x4.0 | 3 | 12.8 g |
| HQProp 8x4x3 3-Blade | 8.0x4.0 | 3 | 13.0 g |
Where this data comes from
Lumenier's own Specifications block for the ZIP V2 3115 Cinematic states 19x19 mm M3 base mounting, 12N14P, 98 g with short wires, "No.of Cells(Lipo): 4-6S", a 0.2 mm Kawasaki silicon steel stator, N52H arc magnets, Japanese NMB 11x5x5 bearings, a 4.8 mm titanium-alloy inner shaft, a 5 mm prop shaft and 50 cm of 18AWG 200 degC wire - and, alone in the ZIP V2 line, no body dimension, so dimensions_mm stays empty. The 4-6S is the brand's own figure for a 31 mm stator where its smaller 2807 and 2812 are rated 3-8S, and it confirms what our retail listing published. No thrust, current or power figure of any kind
