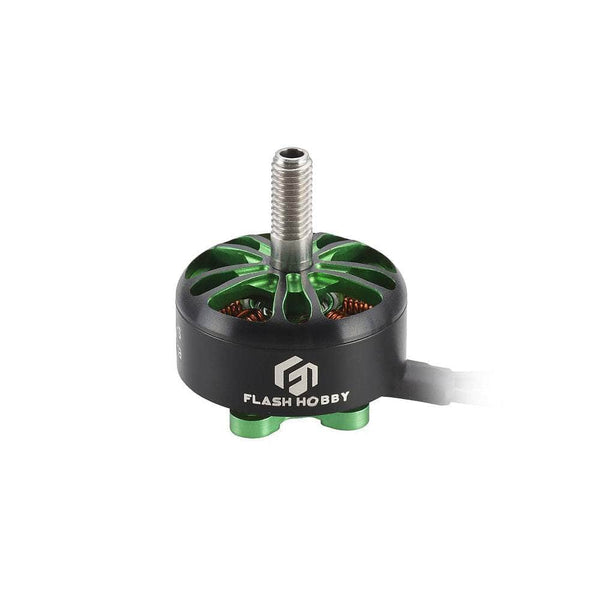

Flash Hobby Arthur 2207.5
| Stator | 2207.5 |
|---|---|
| KV options | 2500 |
| Weight | 36.3 g |
| Shaft | 5mm |
| Max cells | 3-6S |
| Configuration | 12N14P |
| Mount | 16x16mm |
| Max thrust | 1590 g |
| Price (approx.) | 20.49 USD |
At 36.3 g it is 3.2 g heavier than average across the 40 2207-class motors in our database (avg 33.1 g).
Thrust data (Flash Hobby bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 2500 | DAL 5047 3R | 4S | 50 | 8.58 A | — | 494 g | 3.53 g/W |
| 2500 | DAL 5047 3R | 4S | 60 | 14.19 A | — | 690 g | 2.99 g/W |
| 2500 | DAL 5047 3R | 4S | 70 | 21.51 A | — | 912 g | 2.6 g/W |
| 2500 | DAL 5047 3R | 4S | 80 | 30.63 A | — | 1133 g | 2.27 g/W |
| 2500 | DAL 5047 3R | 4S | 90 | 37.6 A | — | 1291 g | 2.11 g/W |
| 2500 | DAL 5047 3R | 4S | 100 | 38.94 A | — | 1305 g | 2.06 g/W |
| 2500 | GF 6045x2 | 4S | 50 | 9.8 A | — | 700 g | 4.38 g/W |
| 2500 | GF 6045x2 | 4S | 60 | 15.9 A | — | 927 g | 3.58 g/W |
| 2500 | GF 6045x2 | 4S | 70 | 23.33 A | — | 1158 g | 3.05 g/W |
| 2500 | GF 6045x2 | 4S | 80 | 32.25 A | — | 1380 g | 2.63 g/W |
| 2500 | GF 6045x2 | 4S | 90 | 41.15 A | — | 1540 g | 2.3 g/W |
| 2500 | GF 6045x2 | 4S | 100 | 43.55 A | — | 1590 g | 2.24 g/W |
Manufacturer bench figures (Flash Hobby bench, two 5in props at a nominal 16 V (4S), 50-100% throttle in 10% steps; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
Bench rows are Flash Hobby's own test table, headed "A2207.5-2500kv", published as a description image on this retail listing; flashhobby.com publishes no bench table for any FPV motor. The table carries no spec block of its own - the listing's does the cross-checking, and its "Max pull: 1590" is this table's Gemfan 6045x2 full-throttle row to the gram. The Volts column prints a flat nominal 16 on all twelve rows, but each row's own Power is 16.29 x its current, to 0.05 W on every row of both runs, so 16 is the pack's nominal voltage and not the bench's; the voltage is carried as printed and the efficiency column is the sheet's own thrust / power. Operating temperature: 59.3 degC on the DAL 5047 3R run, 68.2 degC on the Gemfan 6045x2 run.
