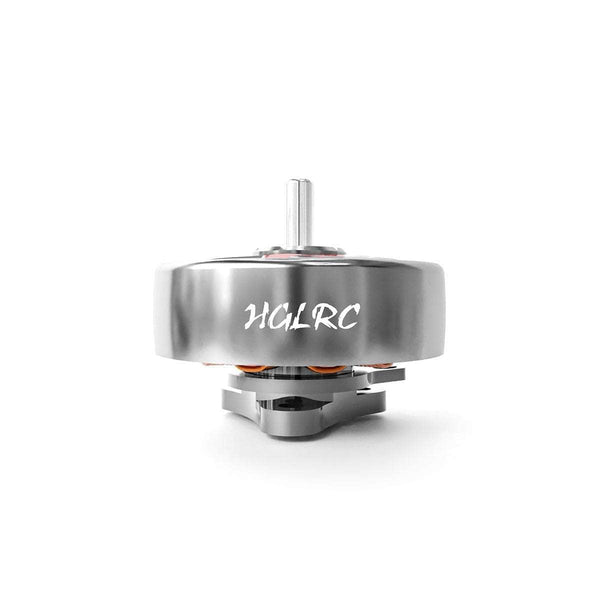

HGLRC SPECTER 1002

Stator	1002
KV options	21000
Weight	2.5 g
Shaft	M1.5x3.75mm
Max cells	1S
Configuration	9N12P
Dimensions	Ø13.59x8.25 mm
Mount	3-M1.4-EQS-Ø6.6
Max thrust	88 g
Price (approx.)	15.99 USD

At 2.5 g it is right at the class average across the 4 1002-class motors in our database (avg 2.5 g).

Best props for the SPECTER 1002

1.6-2 inches

Thrust data (HGLRC bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
21000	GF1610R*2	1S	50	2.1 A	—	29 g	3.732 g/W
21000	GF1610R*2	1S	100	7.5 A	—	68 g	2.45 g/W
21000	GF1635R*3	1S	50	2.6 A	—	31 g	3.222 g/W
21000	GF1635R*3	1S	100	8.9 A	—	71 g	2.156 g/W
21000	GF1635R*4	1S	50	2.8 A	—	34 g	3.282 g/W
21000	GF1635R*4	1S	100	9.9 A	—	75 g	2.048 g/W
21000	GF2015R*2	1S	50	3.3 A	—	42 g	3.44 g/W
21000	GF2015R*2	1S	100	10.3 A	—	88 g	2.309 g/W
21000	GF2023R*3	1S	50	4.2 A	—	40 g	2.574 g/W
21000	GF2023R*3	1S	100	13.3 A	—	72 g	1.463 g/W

Manufacturer bench figures (HGLRC bench, 21000 KV at 1S (3.7 V), 50% and 100% throttle on each of five 1.6-2in whoop props); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
HQProp 40MMX2 Ultralight 40mm Micro/Whoop	1.6x1.2	2	0.2 g
HQProp 51MMX2 Ultralight	2.0x0.9	2	0.23 g
HQProp 40mm Ultralight 3-Blade	1.6x1.0	3	0.25 g
Gemfan 40mm 1608 3-Blade	1.6x0.8	3	0.42 g
HQProp Durable T2x2x4	2.0x2.0	4	0.8 g

Where this data comes from

The rows are HGLRC's own 'Efficacy table', published as an image in the description gallery of the motor's product page on hglrc.com - the eighth brand this dataset has read a manufacturer sheet from, and the first whose sheet publishes a per-run MOTOR TEMPERATURE. One template across the whole SPECTER line: columns Prop (inch) / Voltages (V) / Throttle (%) / Load Currency (A) / Pull (g) / Power (W) / Efficiency (g/W) / Temperature (in full throttle load 5's). Two throttle points per prop run, 50% and 100%, no RPM column at all, and the temperature is one figure per voltage block measured after five seconds at full throttle, not per row. Full-throttle temperature runs 60 degC on the GF1610R*2 to 83 degC (the sheet labels it 'Hot') on the GF2023R*3. Every row's Power column is exactly 3.7 V x its own current. THIS PAGE'S SPEC FIGURES DISAGREE WITH THEMSELVES: the product page's text block states 13.5 A and 85 W, its Specification IMAGE states 13.3 A and 52 W, and the bench table's largest row is 13.3 A / 49.2 W - so the image's current is the table's own maximum and the text's is not. Neither figure is a field we carry; both are recorded rather than chosen between.
