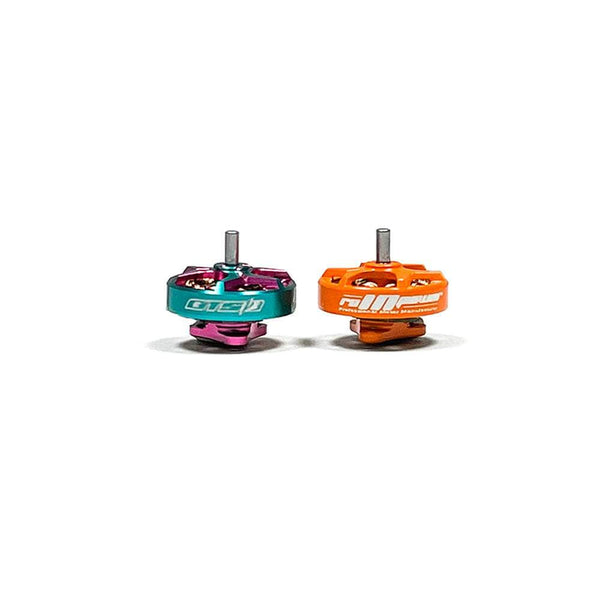

RCINPOWER GTS-V3 1002

RCINPOWER GTS-V3 1002
Image: racedayquads.com
Stator1002
KV options14000, 19000, 22000
Weight2.5 g
Shaft1.5mm
Max cells1S
Configuration9N12P
Dimensions13.5x7.75 mm
Mount9x9mm
Winding resistance175 / 89 / 75 (14000/19000/22000KV) mOhm
Max thrust115 g
Price (approx.)15.99 USD

At 2.5 g it is right at the class average across the 4 1002-class motors in our database (avg 2.5 g).

Thrust data (RCINPOWER bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
14000 Gemfan 1610R*2 2S 50 1.4 A — 39 g 3.764 g/W
14000 Gemfan 1610R*2 2S 100 5.0 A — 89 g 2.405 g/W
14000 Gemfan 1635R*3 2S 50 1.7 A — 40 g 3.18 g/W
14000 Gemfan 1635R*3 2S 100 6.0 A — 92 g 2.072 g/W
14000 Gemfan 1635R*4 2S 50 1.9 A — 43 g 3.058 g/W
14000 Gemfan 1635R*4 2S 100 6.6 A — 98 g 2.007 g/W
14000 Gemfan 2015R*2 2S 50 2.2 A — 53 g 3.256 g/W
14000 Gemfan 2015R*2 2S 100 7.0 A — 115 g 2.22 g/W
14000 Gemfan 2023R*3 2S 50 2.8 A — 51 g 2.461 g/W
14000 Gemfan 2023R*3 2S 100 9.0 A — 93 g 1.396 g/W
19000 Gemfan 1610R*2 1S 50 1.8 A — 28 g 4.204 g/W
19000 Gemfan 1610R*2 1S 100 6.6 A — 62 g 2.539 g/W
19000 Gemfan 1635R*3 1S 50 2.1 A — 27 g 3.475 g/W
19000 Gemfan 1635R*3 1S 100 8.0 A — 64 g 2.162 g/W
19000 Gemfan 1635R*4 1S 50 2.5 A — 30 g 3.243 g/W
19000 Gemfan 1635R*4 1S 100 8.8 A — 68 g 2.088 g/W
19000 Gemfan 2015R*2 1S 50 2.9 A — 37 g 3.448 g/W
19000 Gemfan 2015R*2 1S 100 9.2 A — 79 g 2.321 g/W
19000 Gemfan 2023R*3 1S 50 3.7 A — 36 g 2.63 g/W
19000 Gemfan 2023R*3 1S 100 11.8 A — 65 g 1.489 g/W
22000 Gemfan 1610R*2 1S 50 2.2 A — 31 g 3.808 g/W
22000 Gemfan 1610R*2 1S 100 7.9 A — 72 g 2.463 g/W
22000 Gemfan 1635R*3 1S 50 2.7 A — 33 g 3.303 g/W
22000 Gemfan 1635R*3 1S 100 9.4 A — 75 g 2.156 g/W
22000 Gemfan 1635R*4 1S 50 3.0 A — 36 g 3.243 g/W
22000 Gemfan 1635R*4 1S 100 10.4 A — 79 g 2.053 g/W
22000 Gemfan 2015R*2 1S 50 3.5 A — 44 g 3.398 g/W
22000 Gemfan 2015R*2 1S 100 10.9 A — 93 g 2.306 g/W
22000 Gemfan 2023R*3 1S 50 4.4 A — 42 g 2.58 g/W
22000 Gemfan 2023R*3 1S 100 14.0 A — 76 g 1.467 g/W

Manufacturer bench figures (RCinPower bench, 2S (7.4 V) on the 14000 KV and 1S (3.7 V) on the 19000/22000 KV, five props per KV, 50% and 100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
weBLEEDfpv HQ Ultralight Whoop 31MM 1.22x1.0 3 0.16 g
HQProp 40MMX2 Ultralight 40mm Micro/Whoop 1.6x1.2 2 0.2 g
HQProp 51MMX2 Ultralight 2.0x0.9 2 0.23 g
Gemfan 35MMS 3-Blade 1.4x0.96 3 0.24 g
HQProp 40mm Ultralight 3-Blade 1.6x1.0 3 0.25 g

Where this data comes from

A 1-2S micro motor: 9N12P, 10x2 mm stator, 1.5 mm shaft, 13.5x7.75 mm, 2.5 g with 5 cm wire. RCinPower rates the 14000 KV at 1-2S and benches it at 7.4 V; the 19000 and 22000 KV sheets are 1S and bench at 3.7 V, so the 115 g peak is a 2S figure. Internal resistance 175/89/75 mOhm for 14000/19000/22000 KV. Temperature after 3 s at full throttle reaches 58-84 degC, and RCinPower marks the Gemfan 2023R*3 full-throttle run "Hot" on both 1S KVs
