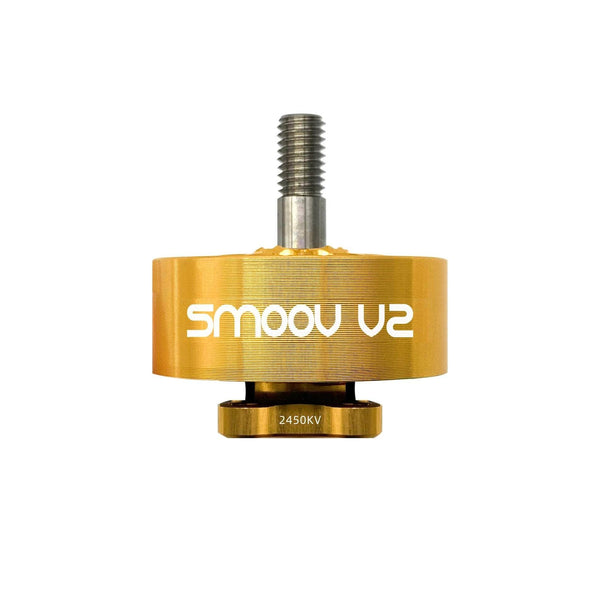

NewBeeDrone Smoov V2 2306.5
| Stator | 2306.5 |
|---|---|
| KV options | 1750, 2450 |
| Weight | 36.0 g |
| Shaft | 5mm |
| Max cells | 6S |
| Configuration | 12N14P |
| Dimensions | Ø29.4x31.6 mm |
| Price (approx.) | 29.99 USD |
At 36 g it is 3.5 g heavier than average across the 21 2306-class motors in our database (avg 32.5 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
NewBeeDrone's own product page for the 2306.5 Smoov V2 Ring Magnet publishes a labelled Specifications list and no bench table: 12N14P single-winding 0.15 mm lamination stator, 23 mm x 6.5 mm stator, 5 mm shaft, 29.4x31.6 mm body, 36 g including cable, 20AWG 150 mm wire, NSK/NMB 684ZZ bearings, N48SH ring magnets, a suggested propeller of 5-6 inch and a 30-60 A ESC, with the two windings given as 1750 KV for 6S and 2450 KV for 4S - both of which our listing already carries. The five product images are photographs.
