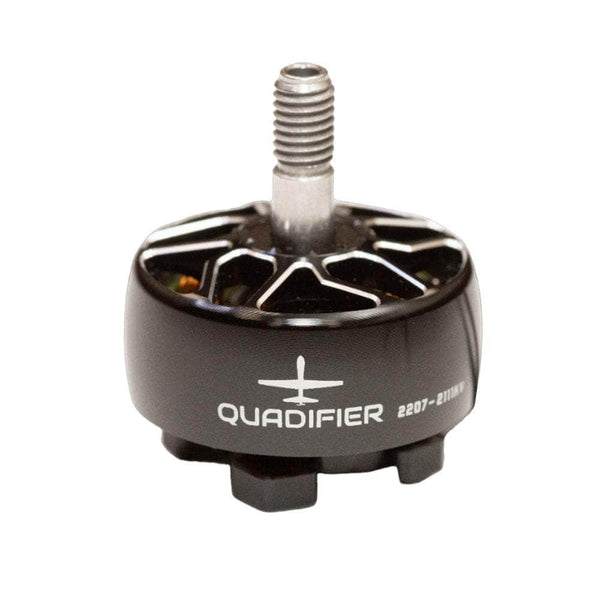

Quadifier Venom 2207
| Stator | 2207 |
|---|---|
| KV options | 2111 |
| Weight | 32.2 g |
| Shaft | 5mm |
| Max cells | 6S |
| Configuration | 12N14P |
| Dimensions | Ø28.4x32.3 mm |
| Mount | 16x16mm |
| Price (approx.) | 20.99 USD |
At 32.2 g it is right at the class average across the 40 2207-class motors in our database (avg 33.1 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
Quadifier's own site (quadifier.com, Wix - its product list is /store-products-sitemap.xml, 93 URLs) publishes the same Specifications block our retail listing carries and no bench table: 12N14P, 16 x 16 mm mounting, a Ø 28.4 x 32.3 mm body, a 5 mm shaft, 6S, 2111 KV, NMB bearings and N52HS magnets. Its own page states the motor was "designed in collaboration with FlyFishRC", which is where the block's wording comes from. Two source facts recorded rather than repaired: the block gives a 23 mm stator diameter and a 6 mm stator height for a motor both the brand and the retailer title 2207, and it states the weight twice - 32.2 g in the block and 34.2 g "including 150mm wire" in the features list - so the published 32.2 g is the bare motor.
