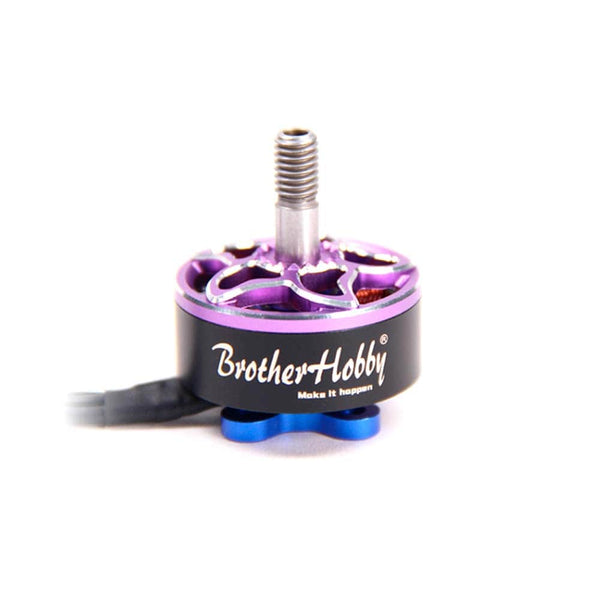

BrotherHobby VS 2207

BrotherHobby VS 2207
Image: racedayquads.com
Stator2207
KV options2400
Weight32.5 g
ShaftM5
Max cells4-6S
Configuration12N14P
DimensionsØ27x32.4 mm
Mount16x16mm (4-M3)
Max thrust1920 g
Price (approx.)20.49 USD

At 32.5 g it is right at the class average across the 40 2207-class motors in our database (avg 33.1 g).

Thrust data (BrotherHobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1720 GF 5*5.5*3 Triblade 6S 30 2.2 A 11196 230 g 4.36 g/W
1720 GF 5*5.5*3 Triblade 6S 40 4.5 A 14700 410 g 3.8 g/W
1720 GF 5*5.5*3 Triblade 6S 50 7.3 A 17419 590 g 3.37 g/W
1720 GF 5*5.5*3 Triblade 6S 60 11.2 A 20133 790 g 2.94 g/W
1720 GF 5*5.5*3 Triblade 6S 70 16.1 A 22413 1020 g 2.64 g/W
1720 GF 5*5.5*3 Triblade 6S 80 26.8 A 26141 1410 g 2.2 g/W
1720 GF 5*5.5*3 Triblade 6S 90 34.5 A 28092 1640 g 1.99 g/W
1720 GF 5*5.5*3 Triblade 6S 100 38.8 A 29255 1830 g 1.98 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 30 3.5 A 10577 248 g 3.54 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 40 7.4 A 15255 448 g 3.03 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 50 11.6 A 17981 646 g 2.78 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 60 17.9 A 20795 886 g 2.47 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 70 28.2 A 23071 1286 g 2.28 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 80 35.9 A 24368 1490 g 2.08 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 90 45.9 A 26772 1732 g 1.9 g/W
2400 HQ 5.1*4.1*3 Triblade 5S 100 51.6 A 29831 1920 g 1.87 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 30 4.2 A 12669 189 g 2.81 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 40 6.8 A 15417 296 g 2.72 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 50 11.8 A 18832 477 g 2.54 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 60 16.8 A 21359 633 g 2.37 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 70 21.6 A 23341 783 g 2.28 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 80 35.7 A 27102 1109 g 1.97 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 90 40.5 A 28037 1221 g 1.91 g/W
2700 HQ 5.1*4.3*3 Triblade 4S 100 47.9 A 29517 1420 g 1.89 g/W

Manufacturer bench figures (BrotherHobby 2020 bench, 8 throttle points per KV; 1720KV on 6S (40 A), 2400KV on 5S (55 A), 2700KV on 4S (48 A)); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

VS 2207 ships in 1720/2400/2700 KV; 32.5 g (1720/2400 KV) to 33.4 g (2700 KV) with 16 cm wires, body Φ27x32.4 mm, 4-M3 (16 mm) mount
