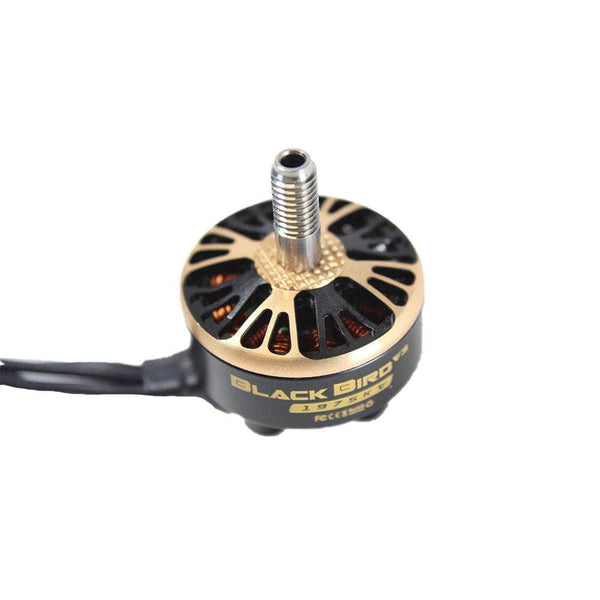

Axisflying Blackbird V3 2207

Axisflying Blackbird V3 2207
Image: racedayquads.com
Stator2207.3
KV options1975
Weight32.6 g
Shaft5mm
Max cells6S
Configuration12N14P
DimensionsØ27.5x33.4 mm
Mount16x16mm (M3)
Winding resistance56 (1975KV) / 45 (2125KV) / 36 (2725KV) mOhm
Max thrust1950.54 g
Price (approx.)41.49 USD

At 32.6 g it is right at the class average across the 40 2207-class motors in our database (avg 33.1 g).

Thrust data (Axisflying bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1975 BB4943.5 6S 20 0.67 A 8524 53.3 g 3.33 g/W
1975 BB4943.5 6S 30 1.93 A 12446 139.8 g 3.02 g/W
1975 BB4943.5 6S 40 4.35 A 16058 314.0 g 3.01 g/W
1975 BB4943.5 6S 50 7.43 A 19357 469.9 g 2.63 g/W
1975 BB4943.5 6S 60 11.67 A 22648 665.4 g 2.38 g/W
1975 BB4943.5 6S 70 15.98 A 25363 941.3 g 2.45 g/W
1975 BB4943.5 6S 80 22.52 A 28480 1212.6 g 2.24 g/W
1975 BB4943.5 6S 90 30.7 A 30934 1527.7 g 2.07 g/W
1975 BB4943.5 6S 100 42.29 A 33324 1770.3 g 1.74 g/W
1975 GF 51466 6S 20 0.6 A 7117 58.7 g 4.01 g/W
1975 GF 51466 6S 30 2.0 A 12456 173.6 g 3.62 g/W
1975 GF 51466 6S 40 4.1 A 15992 326.9 g 3.29 g/W
1975 GF 51466 6S 50 7.6 A 19379 581.0 g 3.18 g/W
1975 GF 51466 6S 60 12.2 A 22592 739.3 g 2.53 g/W
1975 GF 51466 6S 70 17.1 A 25270 984.2 g 2.4 g/W
1975 GF 51466 6S 80 24.0 A 28010 1251.2 g 2.17 g/W
1975 GF 51466 6S 90 32.1 A 30326 1568.8 g 2.04 g/W
1975 GF 51466 6S 100 44.7 A — 1814.7 g 1.69 g/W
2125 BB4943.5 6S 20 0.81 A 9112 67.25 g 3.45 g/W
2125 BB4943.5 6S 30 2.53 A 13514 193.97 g 3.19 g/W
2125 BB4943.5 6S 40 5.15 A 17178 344.97 g 2.79 g/W
2125 BB4943.5 6S 50 9.39 A 20725 547.61 g 2.43 g/W
2125 BB4943.5 6S 60 14.75 A 24349 852.83 g 2.41 g/W
2125 BB4943.5 6S 70 20.53 A 27213 1077.06 g 2.19 g/W
2125 BB4943.5 6S 80 28.62 A 30230 1360.33 g 1.98 g/W
2125 BB4943.5 6S 90 37.62 A 32559 1689.54 g 1.87 g/W
2125 BB4943.5 6S 100 50.79 A 34747 1926.71 g 1.58 g/W
2125 GF 51466 6S 20 0.8 A 9040 68.4 g 3.51 g/W
2125 GF 51466 6S 30 2.7 A 13393 186.15 g 2.93 g/W
2125 GF 51466 6S 40 5.7 A 16965 370.03 g 2.71 g/W
2125 GF 51466 6S 50 9.9 A 20664 605.74 g 2.55 g/W
2125 GF 51466 6S 60 15.2 A 23913 842.3 g 2.32 g/W
2125 GF 51466 6S 70 21.1 A 26790 1145.02 g 2.26 g/W
2125 GF 51466 6S 80 30.0 A 29572 1404.32 g 1.95 g/W
2125 GF 51466 6S 90 40.1 A 32098 1676.58 g 1.75 g/W
2125 GF 51466 6S 100 53.7 A 34112 1950.54 g 1.51 g/W
2725 BB4943.5 4S 30 7.68 A 15229 352.95 g 2.87 g/W
2725 BB4943.5 4S 40 12.85 A 17269 549.0 g 2.67 g/W
2725 BB4943.5 4S 50 21.74 A 19147 757.66 g 2.18 g/W
2725 BB4943.5 4S 60 25.21 A 21164 826.0 g 2.05 g/W
2725 BB4943.5 4S 70 30.22 A 23147 964.0 g 1.99 g/W
2725 BB4943.5 4S 80 36.65 A 25325 1123.0 g 1.91 g/W
2725 BB4943.5 4S 90 41.22 A 28607 1258.0 g 1.91 g/W
2725 BB4943.5 4S 100 46.17 A 29982 1459.38 g 1.98 g/W
2725 GF 51466 4S 30 6.9 A 14114 318.0 g 2.9 g/W
2725 GF 51466 4S 40 13.5 A 16205 586.9 g 2.71 g/W
2725 GF 51466 4S 50 22.1 A 18563 818.85 g 2.32 g/W
2725 GF 51466 4S 60 27.8 A 20644 968.0 g 2.17 g/W
2725 GF 51466 4S 70 31.5 A 22644 1081.7 g 2.15 g/W
2725 GF 51466 4S 80 36.8 A 24919 1245.61 g 2.12 g/W
2725 GF 51466 4S 90 42.1 A 26182 1410.74 g 2.1 g/W
2725 GF 51466 4S 100 47.9 A 29868 1513.26 g 1.97 g/W

Manufacturer bench figures (Axisflying bench, 1975 KV (Proxy Edition) and 2125 KV (Extreme Edition) at 6S / 24.00 V and 2725 KV at 4S / 16.00 V, on a BB4943.5 and a GF 51466; 20-100% in tens on the 6S windings, 30-100% on the 4S one); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Axisflying publishes the whole Black Bird V3 sheet as description images on its own product page: a SPECS table, a dimension drawing and a TEST DATA table of 52 rows - three windings on two props, 20-100% in tens at 24.00 V for the 1975 and 2125 KV and 30-100% at 16.00 V for the 2725 KV. Identity with the RaceDayQuads listing we price from is the stator (2207.3), the 1975 KV winding and the 32.6 g weight, which is the SPECS table's Weight (Excl.Cable); the page body states 36.5 g for the same motor including its 150 mm cables, so the two figures are the same motor with and without its leads. The brand sells the 1975 KV as the Proxy Edition and the 2125 KV as the Extreme Edition, both 6S; the 2725 KV in the SPECS table is the 4S winding, which is what its Rated Voltage row (4~6S/4S) separates. The spec-block cross-check lands on all three windings, each time on the GF 51466 run: Peak Current 44.7 / 53.7 / 48 A against 44.7, 53.7 and 47.9 A at 100%, and Max.Power 1070 / 1288 / 766 W against 1072.61, 1288.79 and 766.22 W. Max thrust is the 2125 KV GF 51466 100% row, 1950.54 g, which the body restates as "can get over 1.9KG and most current is about 50A"; the 1975 KV winding our source sells peaks at 1814.7 g. Four source facts recorded rather than repaired. The 1975 KV GF 51466 100% row prints an RPM of 23157 between a 90% row of 30326 and nothing above it, so that row publishes no RPM. The 1975 KV BB4943.5 run's printed efficiency rises at 70% (2.38 -> 2.45 g/W) before falling again. The 2725 KV BB4943.5 run's efficiency also rises at 100% (1.91 -> 1.98 g/W) and its 40-50% step adds 8.89 A for 209 g where every neighbouring step adds less current for more thrust. And the mount is a bolt circle, not a square: the drawing calls out 4-M3 on a circle 16 mm across and the body says "Motor mounting hole size: 4*M3 (16mm)", i.e. an 11.3 mm square in the pattern a frame sees, so mount_mm stays empty as it does on every other Axisflying page here.
