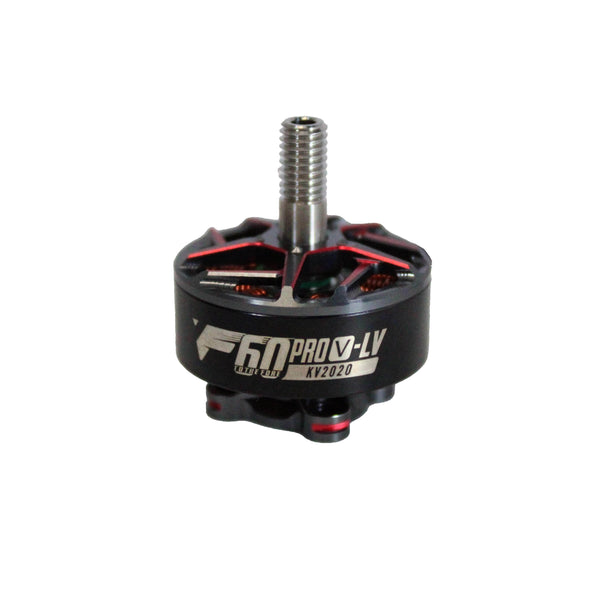

T-Motor F60 2207.5 Pro V-LV

T-Motor F60 2207.5 Pro V-LV
Image: racedayquads.com
Stator2207.5
KV options1950, 2020
Weight32.1 g
Shaft5mm
Max cells6S
Configuration12N14P
Max thrust2083.5 g
Price (approx.)34.99 USD

At 32.1 g it is right at the class average across the 40 2207-class motors in our database (avg 33.1 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1950 T-Motor T5146-3 6S 20 2.5 A 12041 259.6 g 4.11 g/W
1950 T-Motor T5146-3 6S 40 8.3 A 18405 646.2 g 3.1 g/W
1950 T-Motor T5146-3 6S 60 17.0 A 22689 1009.4 g 2.37 g/W
1950 T-Motor T5146-3 6S 80 29.0 A 27722 1544.0 g 2.14 g/W
1950 T-Motor T5146-3 6S 100 46.8 A 32031 1966.1 g 1.7 g/W
2020 T-Motor T5146-3 6S 20 2.7 A 12396 282.7 g 4.23 g/W
2020 T-Motor T5146-3 6S 40 9.5 A 18986 703.0 g 2.93 g/W
2020 T-Motor T5146-3 6S 60 18.4 A 23297 1075.3 g 2.34 g/W
2020 T-Motor T5146-3 6S 80 32.5 A 28611 1642.4 g 2.03 g/W
2020 T-Motor T5146-3 6S 100 51.5 A 32529 2029.5 g 1.6 g/W
1950 T-Motor T5147-3 6S 20 2.5 A 11662 262.5 g 4.16 g/W
1950 T-Motor T5147-3 6S 40 8.3 A 17791 645.3 g 3.09 g/W
1950 T-Motor T5147-3 6S 60 17.4 A 22331 1044.1 g 2.39 g/W
1950 T-Motor T5147-3 6S 80 30.4 A 27203 1591.9 g 2.1 g/W
1950 T-Motor T5147-3 6S 100 48.3 A 30968 2012.6 g 1.69 g/W
2020 T-Motor T5147-3 6S 20 2.7 A 12034 282.2 g 4.13 g/W
2020 T-Motor T5147-3 6S 40 9.6 A 18423 696.5 g 2.88 g/W
2020 T-Motor T5147-3 6S 60 20.3 A 22649 1076.1 g 2.12 g/W
2020 T-Motor T5147-3 6S 80 34.0 A 27834 1669.3 g 1.98 g/W
2020 T-Motor T5147-3 6S 100 53.1 A 31409 2083.5 g 1.6 g/W
1950 Gemfan GF51466-3 6S 20 2.4 A 12486 255.1 g 4.3 g/W
1950 Gemfan GF51466-3 6S 40 8.2 A 19013 637.9 g 3.08 g/W
1950 Gemfan GF51466-3 6S 60 16.1 A 23222 981.1 g 2.44 g/W
1950 Gemfan GF51466-3 6S 80 27.8 A 28400 1548.4 g 2.24 g/W
1950 Gemfan GF51466-3 6S 100 45.6 A 32743 1995.8 g 1.77 g/W
2020 Gemfan GF51466-3 6S 20 2.6 A 12865 277.9 g 4.23 g/W
2020 Gemfan GF51466-3 6S 40 9.4 A 19549 688.5 g 2.92 g/W
2020 Gemfan GF51466-3 6S 60 17.7 A 23970 1052.4 g 2.37 g/W
2020 Gemfan GF51466-3 6S 80 31.4 A 28994 1618.5 g 2.07 g/W
2020 Gemfan GF51466-3 6S 100 50.9 A 33426 2063.0 g 1.65 g/W
1950 HQ R35-3 6S 20 2.4 A 12531 257.0 g 4.32 g/W
1950 HQ R35-3 6S 40 8.2 A 19063 633.3 g 3.06 g/W
1950 HQ R35-3 6S 60 16.0 A 23349 969.4 g 2.42 g/W
1950 HQ R35-3 6S 80 27.3 A 28495 1375.9 g 2.02 g/W
1950 HQ R35-3 6S 100 45.4 A 33134 1876.8 g 1.67 g/W
2020 HQ R35-3 6S 20 2.6 A 12770 269.4 g 4.13 g/W
2020 HQ R35-3 6S 40 9.3 A 19480 667.8 g 2.86 g/W
2020 HQ R35-3 6S 60 17.1 A 23860 1028.3 g 2.4 g/W
2020 HQ R35-3 6S 80 30.7 A 29280 1443.7 g 1.89 g/W
2020 HQ R35-3 6S 100 50.7 A 33861 1921.2 g 1.54 g/W

Manufacturer bench figures (T-Motor bench, 6S (25.2 V), 5 throttle points per KV on four 5in props); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Same motor as the F60 Pro V-LV listing; T-Motor's test report covers 1950 KV and 2020 KV, 12N14P, 4 mm shaft
